Installation [12/2012 - ]: Procedure

  1. INSTALL NO. 2 ECM BRACKET
    1. Install the No. 2 ECM bracket with the 2 screws.

      Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)

  2. INSTALL NO. 1 ECM BRACKET
    1. Install the No. 1 ECM bracket with the 2 screws.

      Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)

  3. INSTALL ECM
    1. Install the ECM with the 3 bolts.

      Torque: 6.5 N*m (66 kgf*cm, 58 in.*lbf)

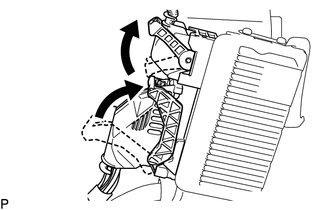

    2. Connect the 2 ECM connectors and lower the 2 levers.
      GTY361437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • When connecting a connector, make sure that dirt, water and other foreign matter is not stuck between the connector and ECM.
      • Make sure that the 2 levers are securely lowered.
  4. INSTALL AIR CLEANER CASE
    1. Install the air cleaner case with the 2 bolts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    2. Attach the harness clamp.
  5. INSTALL AIR CLEANER CAP SUB-ASSEMBLY
    1. Install the air cleaner filter element to the air cleaner case.

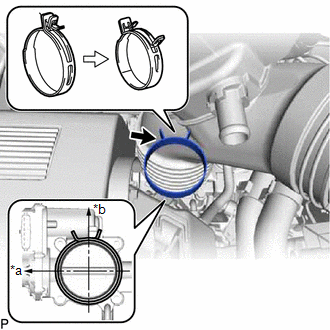

    2. Align the protrusion on the end of the air cleaner cap sub-assembly with the edge of the throttle with motor body assembly and connect the hose. Then, release the lock of the air cleaner cap sub-assembly clamp to secure the clamp.
      GTY373673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a RH Side
      *b Rear

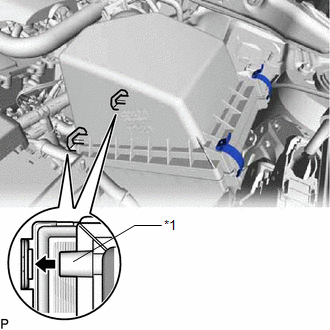

    3. GTY363591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hinge

      Insert the hinge part of the air cleaner cap sub-assembly into the air cleaner case, and then attach the 2 hook clamps.

    4. Connect the No. 2 PCV hose to the cylinder head cover.
    5. Connect the fuel vapor feed hose and No. 2 fuel vapor feed hose to the purge VSV, and slide the 2 clamps to secure it.
    6. Attach the 2 wire harness clamps.
    7. Connect the purge VSV connector.
    8. Connect the mass air flow meter sub-assembly connector.
  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [12/2012 - 10/2015] , INITIALIZATION [10/2015 - 08/2016] , or INITIALIZATION [08/2016 - ]

  7. PERFORM REGISTRATION
  8. RESET MEMORY (for Automatic Transaxle)
