Operation Check [12/2012 - 08/2016]

  1. CHECK SMART KEY SYSTEM (for Entry Function) OPERATION
    NOTE:

    Make sure that the smart key system (for Entry Function) has not been canceled before performing this inspection.

    1. Check the entry unlock function (driver door, front passenger door).
      1. Perform a wireless lock operation to lock the door, touch the unlock sensor built into the backside of the front door outside handle assembly of the driver door while carrying the electrical key transmitter sub-assembly and check that the door unlocks.

        HINT:

        To perform a wireless lock operation, press the lock button of the electrical key transmitter sub-assembly while standing near the front door outside handle assembly.

      2. Inspect the entry unlock detection area. Hold the electrical key transmitter sub-assembly at the same height as the front door outside handle assembly and approximately 0.7 m (2.30 ft.) from the vehicle as shown in the illustration and check that the LED (red) of the electrical key transmitter sub-assembly blinks.

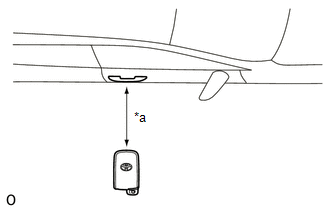

        GTY376713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a 0.7 to 1 m (2.30 to 3.28 ft.)
      3. With the system in unlock standby mode, grasp the front door outside handle assembly and check that the door unlocks.

        HINT:

        • The system is in unlock standby mode when the electrical key transmitter sub-assembly is in the detection area and the key ID code sent by the electrical key transmitter sub-assembly matches the key ID code stored by the certification ECU (smart key ECU assembly).
        • Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the front door outside handle assembly.
        • Inspect the front passenger door using the same procedure.
      4. Check the unlock response sensitivity. With the system in unlock standby mode, touch the area shown in the illustration and check that the door unlocks.
        NOTE:

        If the sensor is touched too quickly or released too slowly, the sensor may not react and the door will not unlock.

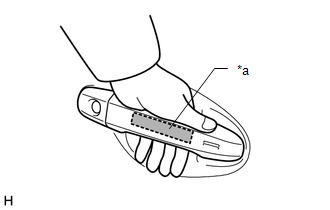

        GTY373865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Unlock Sensor (Backside)
    2. Check the entry lock function (driver door, front passenger door).
      NOTE:

      If the electrical key transmitter sub-assembly is in the vehicle but outside the detection area (on the instrument panel, in the glove box, on the floor) and a door lock operation is performed, the key lock-in prevention function will not operate and the electrical key transmitter sub-assembly will be locked inside the vehicle.

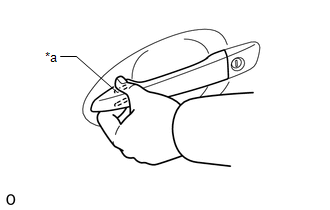

      GTY383049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock Sensor
      1. With the door closed and unlocked, touch the lock sensor of the front door outside handle assembly of the driver door while carrying the electrical key transmitter sub-assembly and check that the door locks.

        HINT:

        If the door does not lock even when touching the lock sensor, touch it with your palm.

      2. Inspect the entry lock operating range. Hold the electrical key transmitter sub-assembly approximately 0.1 m (0.328 ft.) below the bottom edge of the door glass and approximately 0.3 m (0.984 ft.) from the vehicle as shown in the illustration, touch the lock sensor and check that the door locks.
        GTY376713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a 0.7 to 1 m (2.30 to 3.28 ft.)

        HINT:

        • If the door does not lock even when touching the lock sensor, touch it with your palm.
        • As communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the front door outside handle assembly, the door may not lock if the lock sensor is touched with the same hand that is carrying the electrical key transmitter sub-assembly, etc.
        • If the key lock-in prevention function buzzer sounds, electric waves from the indoor electrical key antenna may be leaking from the vehicle.
        • Inspect the front passenger door using the same procedure.
        • The door lock operation cannot be performed more than 3 times consecutively.*

          *: w/ Wireless Door Lock Buzzer Answer Back Function

    3. Check the entry back open function.
      1. Perform a wireless lock operation to lock the doors, operate the unlock switch of the back door opener switch while carrying the electrical key transmitter sub-assembly and check that the door unlocks.

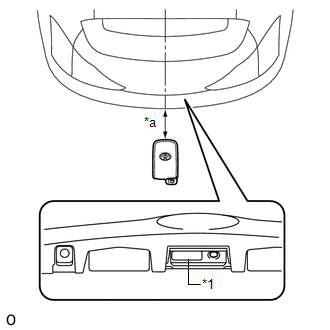

        GTY361901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 Back Door Opener Switch Assembly (Open Switch)
        *a Approximately 0.7 m (2.30 ft.)
      2. Inspect the entry back door open operating range. While standing at the rear of the vehicle, hold the electrical key transmitter sub-assembly so that it is facing the direction shown in the illustration at the same height as the back door opener switch assembly and approximately 0.7 m (2.30 ft.) from the vehicle, press the unlock switch of the back door opener switch assembly and check that the door unlocks.
    4. Check the entry back door lock function.
      NOTE:

      If the electrical key transmitter sub-assembly is inside the vehicle and a door lock operation is performed, it is possible that the electrical key transmitter sub-assembly may be locked inside the vehicle.

      1. With the door closed and unlocked, press the lock switch of the back door opener switch assembly while carrying the electrical key transmitter sub-assembly outside of the vehicle and check that the door locks.
      2. Inspect the entry back door lock operating range. Hold the electrical key transmitter sub-assembly so that it is facing the direction shown in the illustration at the same height as the top edge of the rear bumper and approximately 0.3 m (0.984 ft.) from the vehicle, press the lock of the back door opener switch assembly and check that the door locks.
        GTY361901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 Back Door Opener Switch Assembly (Lock Switch)
        *a Approximately 0.3 m (0.984 ft.)

        HINT:

        • Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the rear bumper.
        • If the key lock-in prevention function buzzer sounds, electric waves from the indoor electrical key antenna assembly may be leaking from the vehicle.
    5. Check the key lock-in prevention function (vehicle interior).
      NOTE:

      In order to prevent the electrical key transmitter sub-assembly from being locked inside the vehicle, perform this inspection with the window of a door open.

      1. Turn the engine switch off.
      2. Place the electrical key transmitter sub-assembly on a front or rear seat.
      3. Close the door, making sure the doors are unlocked.
      4. Touch a door lock sensor and check that the doors do not lock and the key lock-in prevention function buzzer (external) sounds for approximately 5 seconds.
    6. Check the push start function. (except Manual Transaxle)
      1. With the engine switch off, move the shift lever to P, depress the brake pedal while carrying the electrical key transmitter sub-assembly. Then, press the engine switch and check that the engine starts.
      2. With the brake pedal released and the engine switch off, press the engine switch while carrying the electrical key transmitter sub-assembly and check that the power source mode changes as follows: off → on (ACC) → on (IG) → off.
      3. Stop the vehicle, press the engine switch and check that the power source mode changes to off (the engine stops and all electrical systems are off).
      4. Inspect the push start operating range (front floor). Place the electrical key transmitter sub-assembly on the front seat at either inspection point so that it is facing in the direction shown in the illustration and check that the engine can be started.
        GTY376002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Inspection Point
        NOTE:
        • Even if the electrical key transmitter sub-assembly is within the vehicle interior detection area, the electrical key transmitter sub-assembly may not be properly detected if it is on the instrument panel, in the glove box or on the floor.
        • Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the shift lever.

        HINT:

        Perform the inspection for both inspection points.

      5. Inspect the push start operating range (rear floor). Place the key on the rear seat at either inspection point so that it is facing in the direction shown in the illustration and check that the engine can be started.
        GTY376438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Inspection Point
        NOTE:
        • Even if the key is within the vehicle interior detection area, the key may not be properly detected if it is on the instrument panel, in the glove box or on the floor.
        • Communication may not be possible if the key is within 0.2 m (0.66 ft.) of the center of the rear seat cushion.

        HINT:

        Perform the inspection for both inspection points.

      6. Inspect the push start operating range (inside luggage). Place the key at either inspection point and check that the engine can be started.
        GTY373007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Inspection Point
        NOTE:
        • Even if the key is within the vehicle interior detection area, the key may not be properly detected if it is on the instrument panel, in the glove box or on the floor.
        • Communication may not be possible if the key is within 0.2 m (0.66 ft.) of the center of the luggage.

        HINT:

        Perform the inspection for both inspection points.

    7. Check the push start function. (for Manual Transaxle)
      1. With the engine switch off, depress the clutch pedal while carrying the electrical key transmitter sub-assembly. Then, press the engine switch and check that the engine starts.
      2. With the clutch pedal released and the engine switch off, press the engine switch while carrying the electrical key transmitter sub-assembly and check that the power source mode changes as follows: off → on (ACC) → on (IG) → off.
      3. Stop the vehicle, press the engine switch and check that the power source mode changes to off (the engine stops and all electrical systems are off).
      4. Inspect the push start operating range (front floor). Place the electrical key transmitter sub-assembly on the front seat at either inspection point so that it is facing in the direction shown in the illustration and check that the engine can be started.
        GTY376002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Inspection Point
        NOTE:
        • Even if the electrical key transmitter sub-assembly is within the vehicle interior detection area, the electrical key transmitter sub-assembly may not be properly detected if it is on the instrument panel, in the glove box or on the floor.
        • Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the shift lever.

        HINT:

        Perform the inspection for both inspection points.

      5. Inspect the push start operating range (rear floor). Place the key on the rear seat at either inspection point so that it is facing in the direction shown in the illustration and check that the engine can be started.
        GTY376438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Inspection Point
        NOTE:
        • Even if the key is within the vehicle interior detection area, the key may not be properly detected if it is on the instrument panel, in the glove box or on the floor.
        • Communication may not be possible if the key is within 0.2 m (0.66 ft.) of the center of the rear seat cushion.

        HINT:

        Perform the inspection for both inspection points.

      6. Inspect the push start operating range (inside luggage). Place the key at either inspection point and check that the engine can be started.
        GTY373007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Inspection Point
        NOTE:
        • Even if the key is within the vehicle interior detection area, the key may not be properly detected if it is on the instrument panel, in the glove box or on the floor.
        • Communication may not be possible if the key is within 0.2 m (0.66 ft.) of the center of the luggage.

        HINT:

        Perform the inspection for both inspection points.

    8. Check the transmitter battery saving function.
      1. Press the unlock button of the electrical key transmitter sub-assembly twice while pressing the lock button and check that the electrical key transmitter sub-assembly LED blinks 4 times and enters transmitter battery saving mode.
      2. Check that the smart key system (for Entry Function) does not operate while in transmitter battery saving mode.

        HINT:

        To cancel transmitter battery saving mode, press a button of the electrical key transmitter sub-assembly.

    9. Check the entry cancel function.
      1. Cancel the smart key system and check that all the functions of the smart key system (for Entry Function) no longer operate.

        HINT:

        • Refer to the following procedures to cancel the smart key system (for Entry Function).

          Refer to CUSTOMIZE PARAMETERS [12/2012 - 08/2016]

        • While the smart key system is canceled, it is possible to lock and unlock the doors with the wireless operation, and the start system can be operated by holding the electrical key transmitter sub-assembly near the engine switch.
      2. While the key cancel function (entry cancel function) is on, check that all functions of the smart key system cannot be operated.
    10. Check the answer-back function (hazard warning light flashing and buzzer sounding).
      Entry Operation Wireless Buzzer* Hazard Warning Light
      Entry Door Lock Sounds once Flashes once
      Entry Door Unlock Sounds twice Flashes twice
      Entry Back Door Lock Sounds once Flashes once
      Entry Back Door Unlock Sounds twice Flashes twice
      1. *: w/ Wireless Door Lock Buzzer Answer Back Function
  2. KEY DIAGNOSTIC MODE (Using Techstream)

    HINT:

    • With key diagnostic mode, it is possible to check if the electrical key transmitter sub-assembly is operating properly with the selected electrical key antenna and within the selected detection area by the sounding of the wireless buzzer.
    • If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.
    1. Enter the following menus: Body Electrical / Smart Key / Utility / Communication Check (Key Diag Mode).
    2. Inspect the appropriate item according to the following table.
      Tester Display Inspection Item
      [CH1/CH2] Overhead + Driver Side*1 Front door outside handle assembly (electrical key antenna) [for Driver Side]
      [CH1] Overhead + Driver Side*1
      [CH2] Overhead + Driver Side*1
      [CH1/CH2] Overhead + Passenger Side*2 Front door outside handle assembly (electrical key antenna) [for Front Passenger Side]
      [CH1] Overhead + Passenger Side*2
      [CH2] Overhead + Passenger Side*2
      [CH1/CH2] Overhead + Front Room*3 No. 1 indoor electrical key antenna assembly (front floor)
      [CH1] Overhead + Front Room*3
      [CH2] Overhead + Front Room*3
      [CH1/CH2] Overhead + Rear Room*4 No. 2 indoor electrical key antenna assembly (rear floor)
      [CH1] Overhead + Rear Room*4
      [CH2] Overhead + Rear Room*4
      [CH1/CH2] Overhead + Back Door*5 Electrical key antenna (outside luggage)
      [CH1] Overhead + Back Door*5
      [CH2] Overhead + Back Door*5
      [CH1/CH2] Luggage + Back Door (inside)*6 No. 3 indoor electrical key antenna assembly (inside luggage)
      [CH1] Luggage + Back Door (inside)*6
      [CH2] Luggage + Back Door (inside)*6
      [CH1/CH2] Immobilizer Amp*7 Amplifier (engine switch)
      [CH1] Immobilizer Amp*7
      [CH2] Immobilizer Amp*7
    3. Bring the electrical key transmitter sub-assembly near the selected electrical key antenna and check that the wireless door lock buzzer sounds.

      HINT:

      The buzzer sounds in short, repeated beeps for all items except "Overhead + Rear Room"*4. For "Overhead + Rear Room"*4, the buzzer sounds in one long, continuous beep.

      1. *1: Front door outside handle assembly (for Driver Side)
        GTY367217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a 0.7 to 1 m (2.30 to 3.28 ft.)

        Body Electrical > Smart Key > Utility

        Tester Display
        Communication Check(Key Diag Mode)

        HINT:

        • Hold the electrical key transmitter sub-assembly at the same height as the front door outside handle assembly in the position shown in the illustration.
        • *2: Perform the same inspection for the front passenger side.
      2. *1: Front door outside handle assembly (for Front Passenger Side)

        Body Electrical > Smart Key > Utility

        Tester Display
        Communication Check(Key Diag Mode)
        GTY376743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a 0.7 to 1 m (2.30 to 3.28 ft.)

        HINT:

        • Hold the electrical key transmitter sub-assembly at the same height as the front door outside handle assembly in the position shown in the illustration.
        • *2: Perform the same inspection for the front passenger side.
    4. *3: No. 1 indoor electrical key antenna assembly (front floor)

      Body Electrical > Smart Key > Utility

      Tester Display
      Communication Check(Key Diag Mode)
      GTY376002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Inspection Point

      HINT:

      Place the electrical key transmitter sub-assembly on the front seat cushion of the driver seat or front passenger seat.

    5. *4: No. 2 indoor electrical key antenna assembly (rear floor)

      Body Electrical > Smart Key > Utility

      Tester Display
      Communication Check(Key Diag Mode)
      GTY376438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Inspection Point

      HINT:

      Place the electrical key transmitter sub-assembly on the steering column.

    6. *5: Electrical key antenna (outside luggage)

      Body Electrical > Smart Key > Utility

      Tester Display
      Communication Check(Key Diag Mode)
      GTY375359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Approximately 0.7 m (2.30 ft.)

      HINT:

      Hold the electrical key transmitter sub-assembly at the same height as the rear bumper upper surface and align it with the center of the rear of the vehicle as shown in the illustration.

    7. *6: No. 3 indoor electrical key antenna (inside luggage)

      Body Electrical > Smart Key > Utility

      Tester Display
      Communication Check(Key Diag Mode)
      GTY373007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Inspection Point

      HINT:

      Place the electrical key transmitter sub-assembly in the luggage. Even if the electrical key transmitter sub-assembly is in the luggage, the buzzer may not sound.

    8. *7: Amplifier (engine switch)

      Body Electrical > Smart Key > Utility

      Tester Display
      Communication Check(Key Diag Mode)

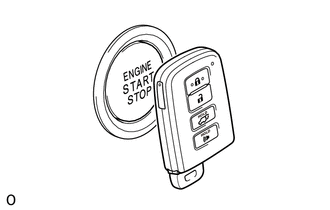

      GTY365924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      While facing the logo side of the electrical key transmitter sub-assembly towards the engine switch, hold the transmitter near the engine switch.
