Back Door Entry Lock Function does not Operate [12/2012 - ]: Procedure

1. When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation.

   Refer to OPERATION CHECK [12/2012 - ] .

   Result	Proceed to
   	Door locks operate normally
   	Door locks do not operate

Result:

Door locks do not operate

GO TO POWER DOOR LOCK CONTROL SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [12/2012 - ]

Result:

Door locks operate normally

See step  2

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Smart Key / Data List.
5. Read the Data List according to the display on the Techstream.

   Body Electrical > Smart Key > Data List

   Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
   Tr/B-Door Lock SW	Back door opener switch (lock switch)	ON or OFF	ON: Back door opener switch (lock switch) pushed OFF: Back door opener switch (lock switch) not pushed	Displays whether the back door opener switch assembly (lock switch) is on or off. Use this Data List item to help determine if there is a switch malfunction when the back door lock function does not operate.

   Body Electrical > Smart Key > Data List

   Tester Display
   Tr/B-Door Lock SW

   OK

   The Techstream display changes correctly in response to the operation of the back door opener switch assembly.

   Results	Proceed to
   	OK
   	NG

Result:

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [12/2012 - 10/2015]  or  REMOVAL [10/2015 - ]  .

Result:

NG

See step  3

1. Disconnect the U7 back door opener switch assembly connector.
2. Disconnect the G83 certification ECU (smart key ECU assembly) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   U7-1 (L) - G83-28 (TSW6)	Always	Below 1 Ω
   U7-2 (E) - Body ground	Always	Below 1 Ω
   U7-1 (L) or G83-28 (TSW6) - Body ground	Always	10 kΩ or higher

   Results	Proceed to
   	OK
   	NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

1. Remove the back door opener switch assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Refer to REMOVAL [12/2012 - 10/2015] or REMOVAL [10/2015 - ] .

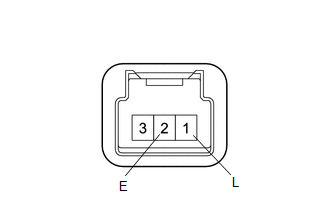

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   1 (L) - 2 (E)	No switch pushed	10 kΩ or higher
   1 (L) - 2 (E)	Lock switch pushed	Below 1 Ω

   Results	Proceed to
   	OK
   	NG

Result:

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [12/2012 - 10/2015]  or  REMOVAL [10/2015 - ]  .

Result:

NG

REPLACE BACK DOOR OPENER SWITCH ASSEMBLY. Refer to  REMOVAL [12/2012 - 10/2015]  or  REMOVAL [10/2015 - ]  .
