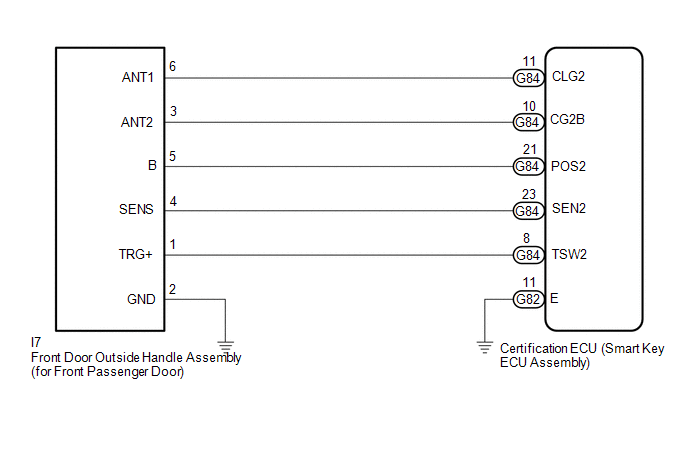

Front Passenger Side Door Entry Unlock Function does not Operate [12/2012 - ]: Wiring Diagram

GTY362738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
