Rear Door RH Entry Unlock Function does not Operate [08/2016 - ]: Procedure

1. When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation.

   Refer to OPERATION CHECK [12/2012 - ]

   Results	Proceed to
   	OK
   	NG

Result:

Door locks do not operate

GO TO POWER DOOR LOCK CONTROL SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [12/2012 - ]

Result:

Door locks operate normally

See step  2

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Main Body / Data List.
5. Read the Data List according to the display on the Techstream.

   Body Electrical > Main Body > Data List

   Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
   RR-Door Lock Pos SW	Rear door RH unlock detection switch signal	ON or OFF	ON: Rear door RH unlocked OFF: Rear door RH locked	-

   Body Electrical > Main Body > Data List

   Tester Display
   RR-Door Lock Pos SW

   OK

   On the Techstream screen, the display changes between ON and OFF as shown in the chart above.

   Results	Proceed to
   	OK
   	NG

Result:

NG

GO TO LIGHTING SYSTEM (Proceed to Door Unlock Detection Switch Circuit). Refer to  Door Unlock Detection Switch Circuit [08/2016 - ]

Result:

OK

See step  3

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Smart Key / Data List.
5. Read the Data List according to the display on the Techstream.

   Body Electrical > Smart Key > Data List

   Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
   Pr-Door Touch Sensor	Rear door RH touch sensor (unlock sensor)	ON or OFF	ON: Rear door RH touch sensor (unlock sensor) touched OFF: Rear door RH touch sensor (unlock sensor) not touched	Displays whether the unlock sensor is on or off (even if the sensor is touched and contact is maintained, "ON" is displayed only momentarily). Use this Data List item to help determine if there is an unlock sensor malfunction when the entry unlock function does not operate.

   Body Electrical > Smart Key > Data List

   Tester Display
   P-Door Touch Sensor

   OK

   The Techstream display changes correctly in response to the operation of the rear door outside handle assembly RH.

   Results	Proceed to
   	OK
   	NG

Result:

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [10/2015 - ]

Result:

NG

See step  4

1. Disconnect the K5 rear door outside handle assembly RH connector.
2. Disconnect the G82 and G83 certification ECU (smart key ECU assembly) connectors.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K5-4 (SENS) - G83-26 (SEN4)	Always	Below 1 Ω
   G82-11 (E) - Body ground	Always	Below 1 Ω
   K5-4 (SENS) or G83-26 (SEN4) - Body ground	Always	10 kΩ or higher

   Results	Proceed to
   	OK
   	NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  5

1. Connect the K5 rear door outside handle assembly RH connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

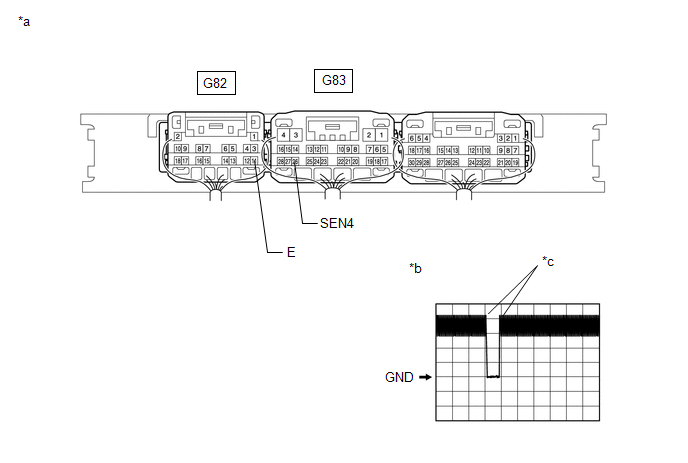

   *a	Component with harness connected (Certification ECU [Smart Key ECU Assembly])	*b	Waveform
   *c	In actuality, sampling is being performed	-	-

2. Connect the G82 and G83 certification ECU (smart key ECU assembly) connectors.
3. Using an oscilloscope, check the waveform.

   OK

   Tester Connection	Switch Condition	Tool Setting	Specified Condition
   G83-26 (SEN4) - G82-11 (E)	Procedure  Engine switch off Electrical key transmitter sub-assembly brought outside vehicle All doors locked Electrical key transmitter sub-assembly not sufficiently close to vehicle Front passenger door unlock sensor not touched → touched	2 V/DIV., 500 ms/DIV.	Pulse generation (See waveform)

   Results	Proceed to
   	OK
   	NG

Result:

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [10/2015 - ]

Result:

NG

REPLACE REAR DOOR OUTSIDE HANDLE ASSEMBLY RH. Refer to  DISASSEMBLY [08/2016 - ]
