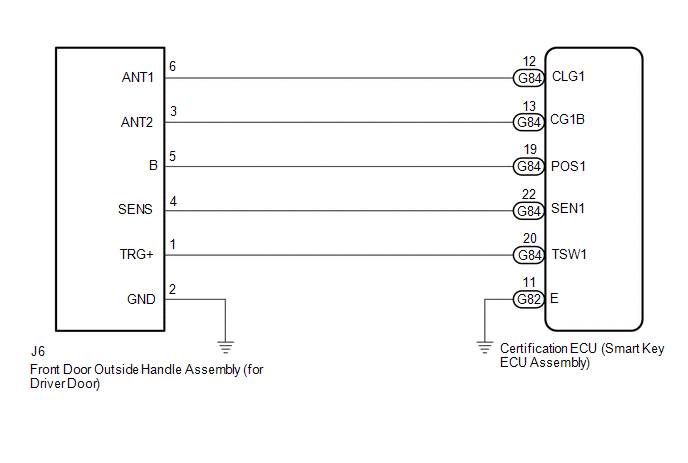

Driver Side Door Entry Lock Function does not Operate [12/2012 - ]: Wiring Diagram

GTY362737

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
