POWER WINDOW CONTROL SYSTEM (W/ Jam Protection Function)
>>
Symptom Tests
>>
Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch [10/2015 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

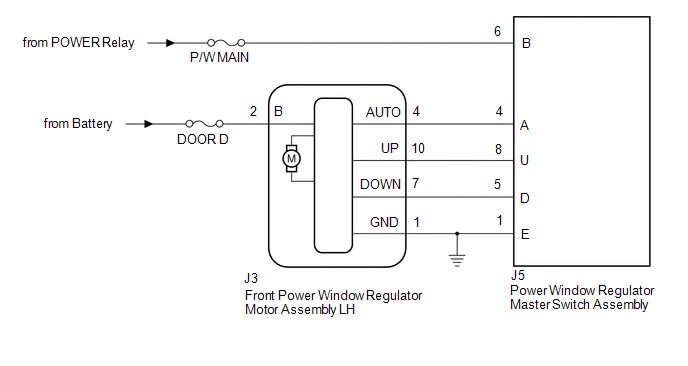

Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch [10/2015 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
