Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [12/2012 - ]: Procedure

1. Remove the power window regulator switch assembly.

   Refer to REMOVAL [12/2012 - ]

2. Inspect the power window regulator switch assembly.

   Refer to INSPECTION [12/2012 - ]

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY. Refer to  REMOVAL [12/2012 - ]

Result:  1

OK

See step  2

1. Remove the front power window regulator motor assembly RH.

   Refer to REMOVAL [12/2012 - ]

2. Inspect the front power window regulator motor assembly RH.

   Refer to INSPECTION [12/2012 - ]

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH. Refer to  REMOVAL [12/2012 - 10/2015]  Refer to  REMOVAL [10/2015 - ]

Result:  1

OK

See step  3

1. Disconnect the power window regulator switch assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

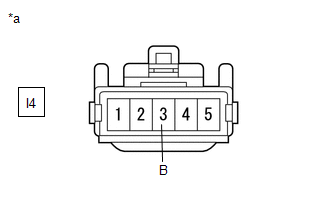

   *a	Front view of wire harness connector (to Power Window Regulator Switch Assembly)

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   I4-3 (B) - Body ground	Ignition switch ON	11 to 14 V
   	Ignition switch off	Below 1 V

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  1

OK

See step  4

1. Disconnect the I4 power window regulator switch assembly connector.
2. Disconnect the I2 front power window regulator motor assembly RH connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   I4-4 (U) - I2-2 (U)	Always	Below 1 Ω
   I4-1 (D) - I2-1 (D)	Always	Below 1 Ω
   I4-4 (U) or I2-2 (U) - Body ground	Always	10 kΩ or higher
   I4-1 (D) or I2-1 (D) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  1

OK

See step  5

1. Disconnect the J5 power window regulator master switch assembly connector.
2. Disconnect the I4 power window regulator switch assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J5-16 (U) - I4-5 (SU)	Always	Below 1 Ω
   J5-15 (D) - I4-2 (SD)	Always	Below 1 Ω
   J5-16 (U) - Body ground	Always	10 kΩ or higher
   J5-15 (D) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:  1

OK

REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY. Refer to  REMOVAL [12/2012 - ]

Result:  2

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
