System Diagrams

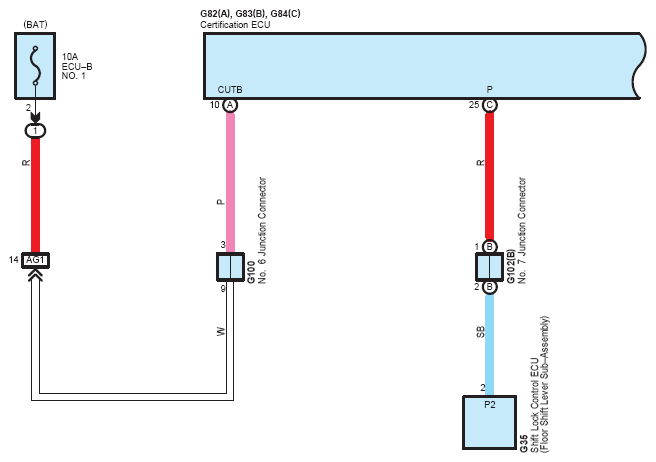

Fig 1: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (1 Of 23)
G12218490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

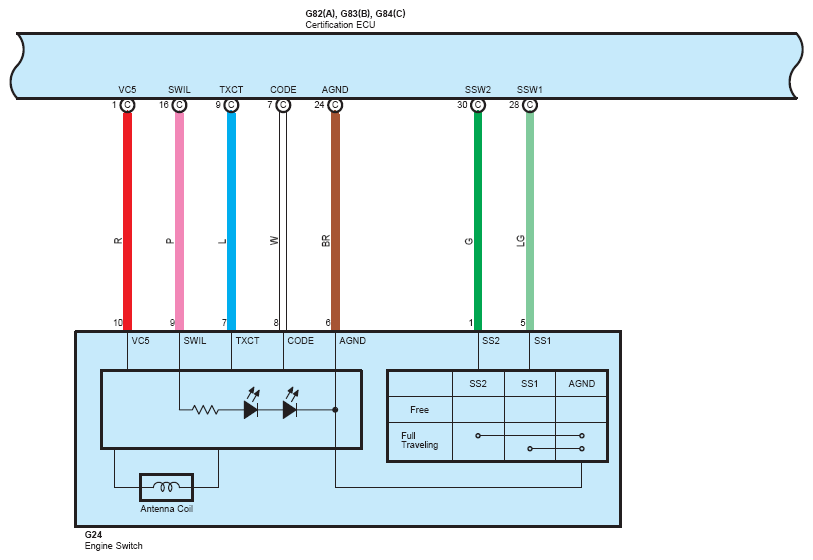

Fig 2: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (2 Of 23)
G12218491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

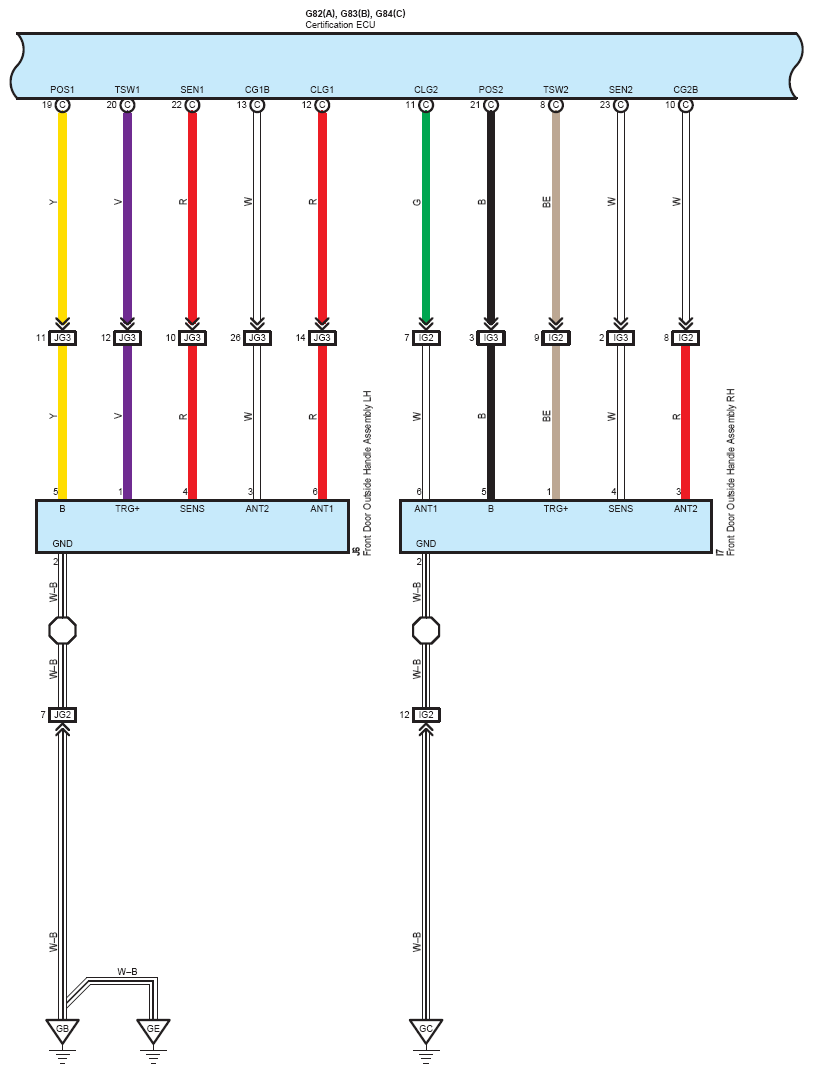

Fig 3: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (3 Of 23)
G12218492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

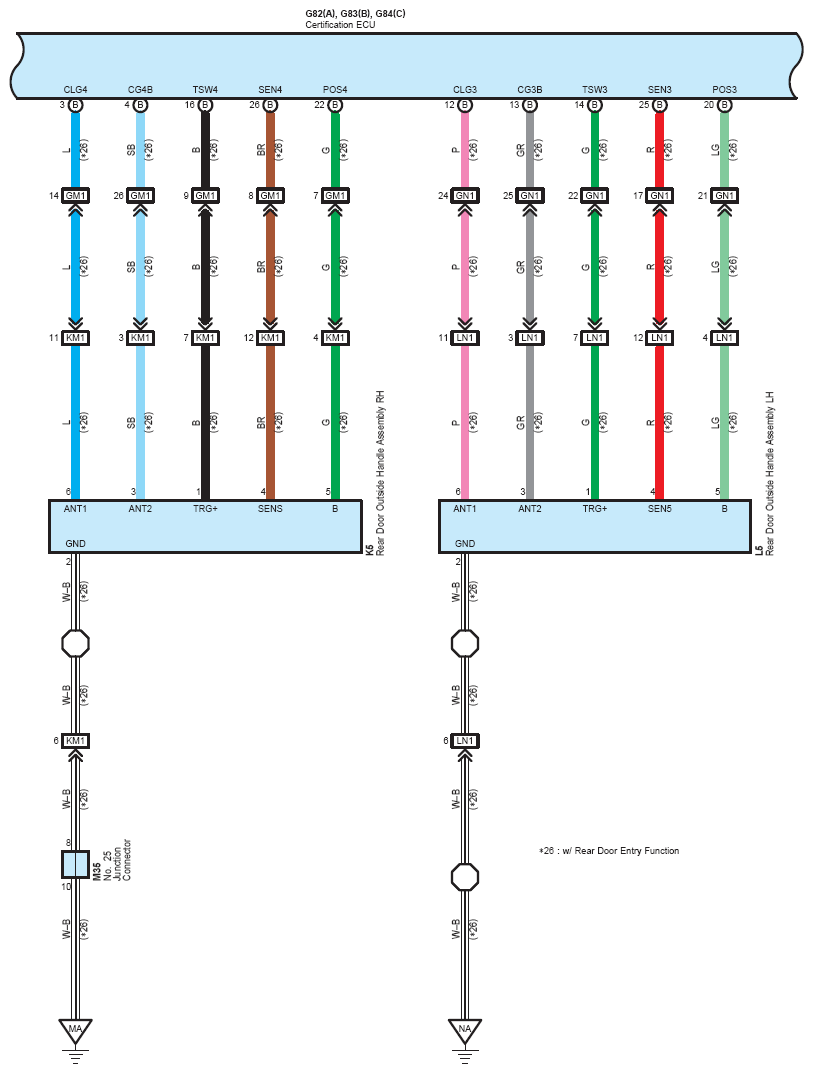

Fig 4: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (4 Of 23)
G12218493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

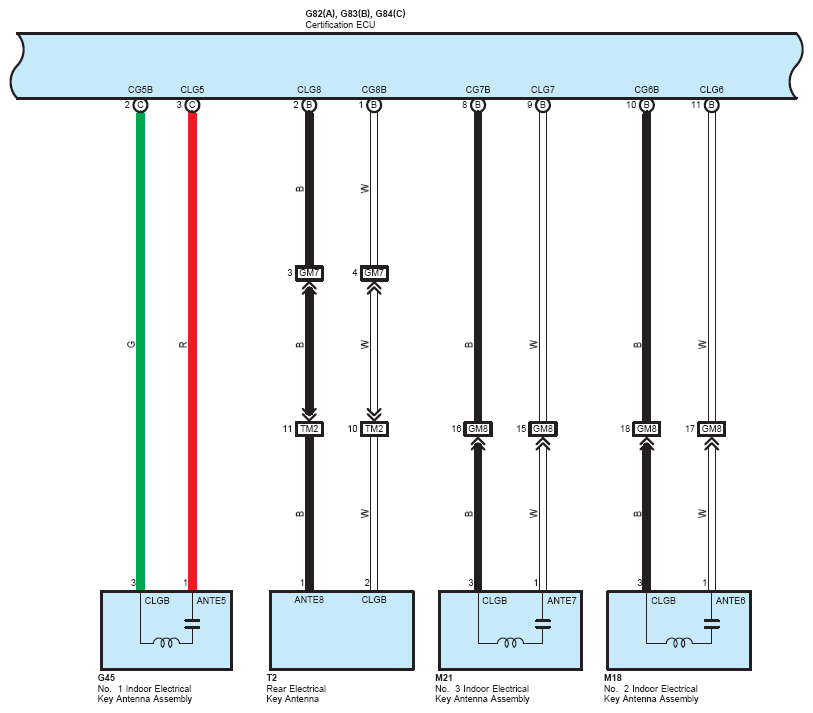

Fig 5: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (5 Of 23)
G12218494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

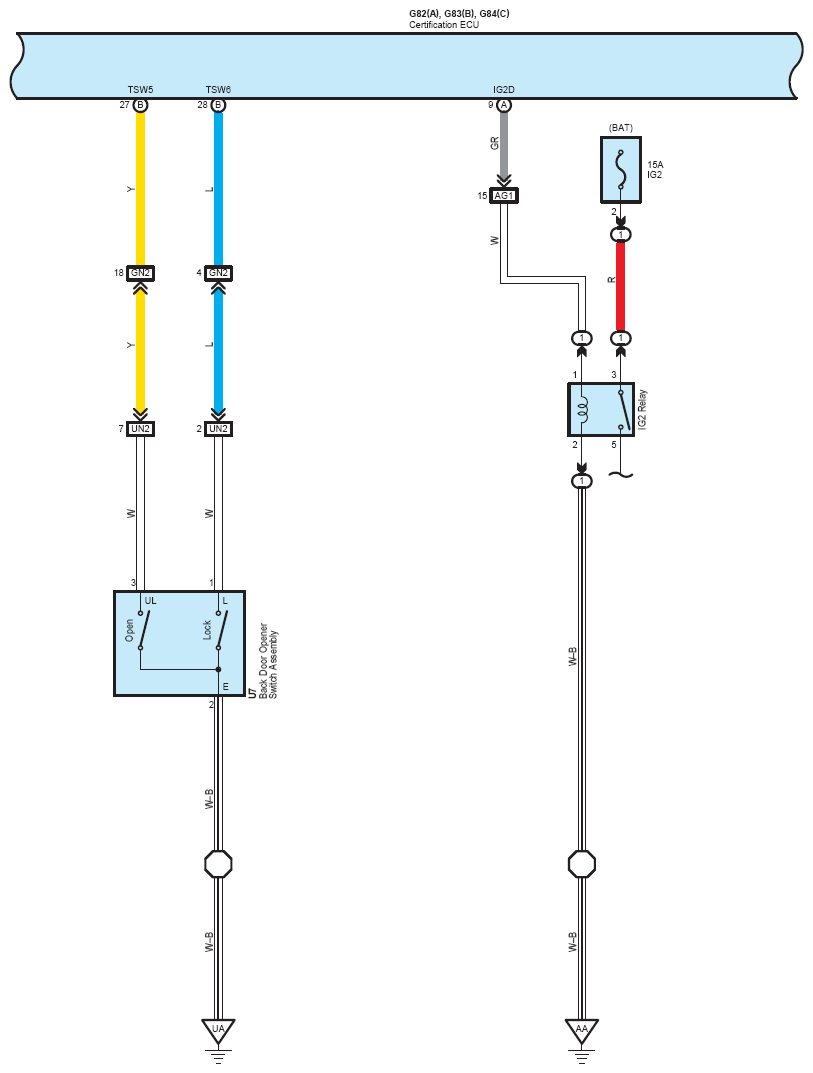

Fig 6: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (6 Of 23)
G12218495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (7 Of 23)
G12218496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

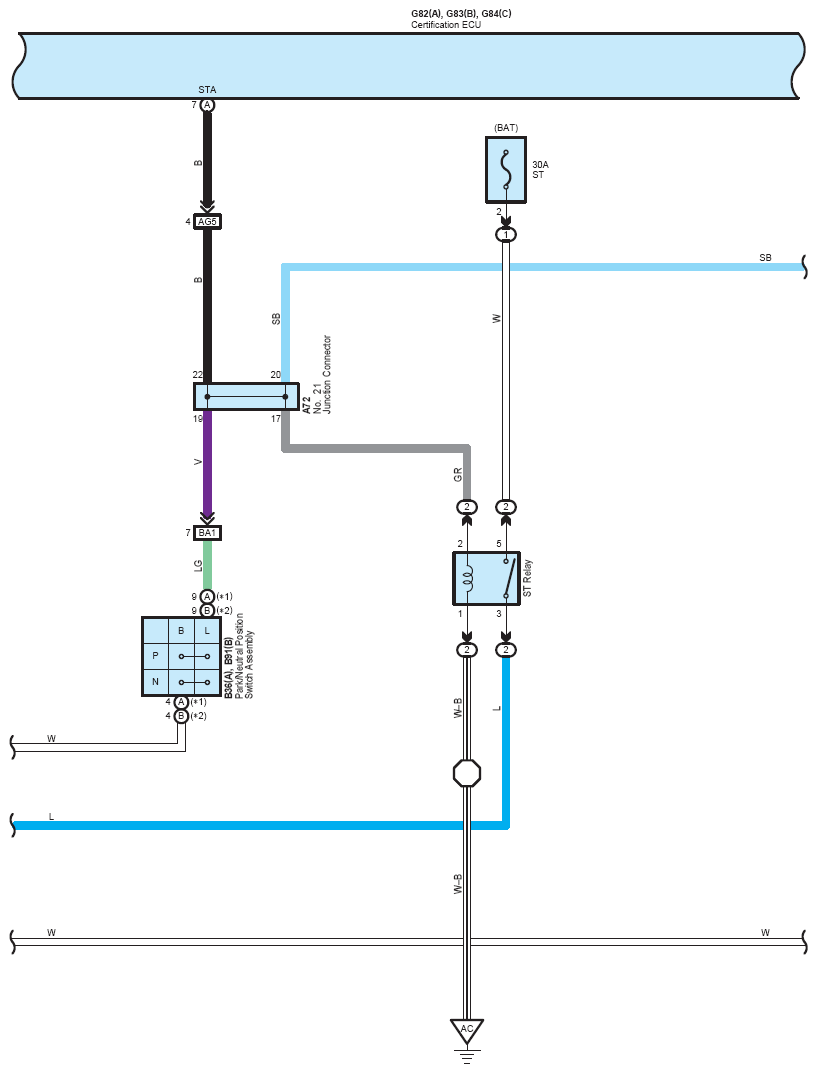

Fig 8: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (8 Of 23)
G12218497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

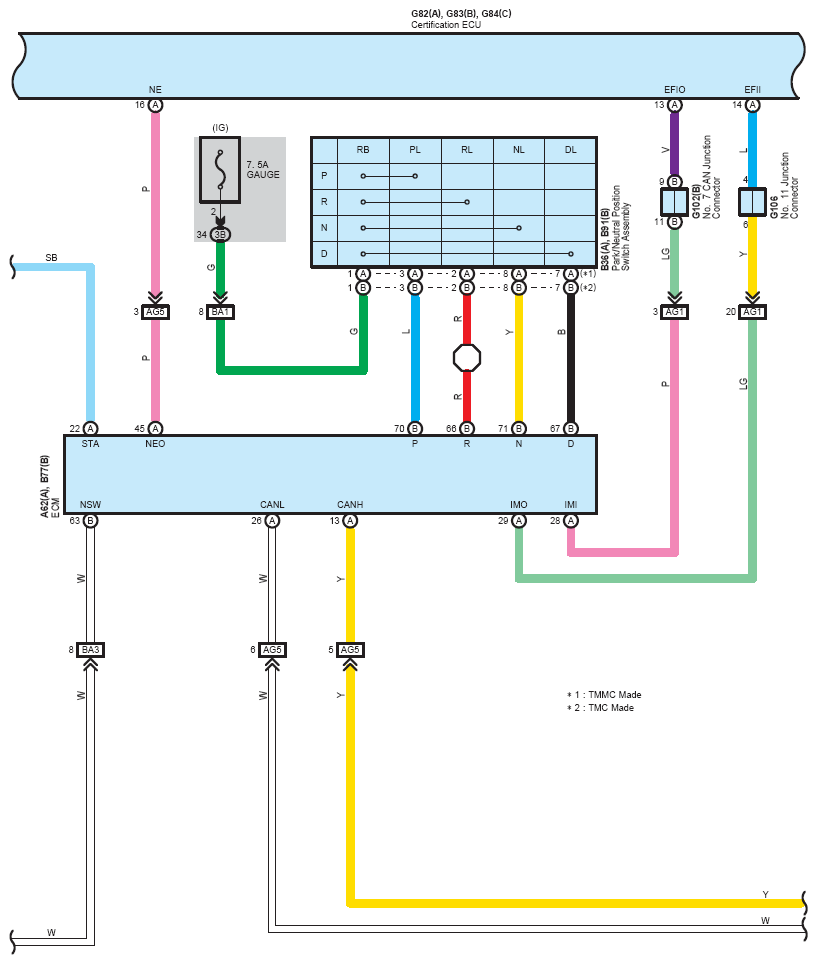

Fig 9: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (9 Of 23)
G12218498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

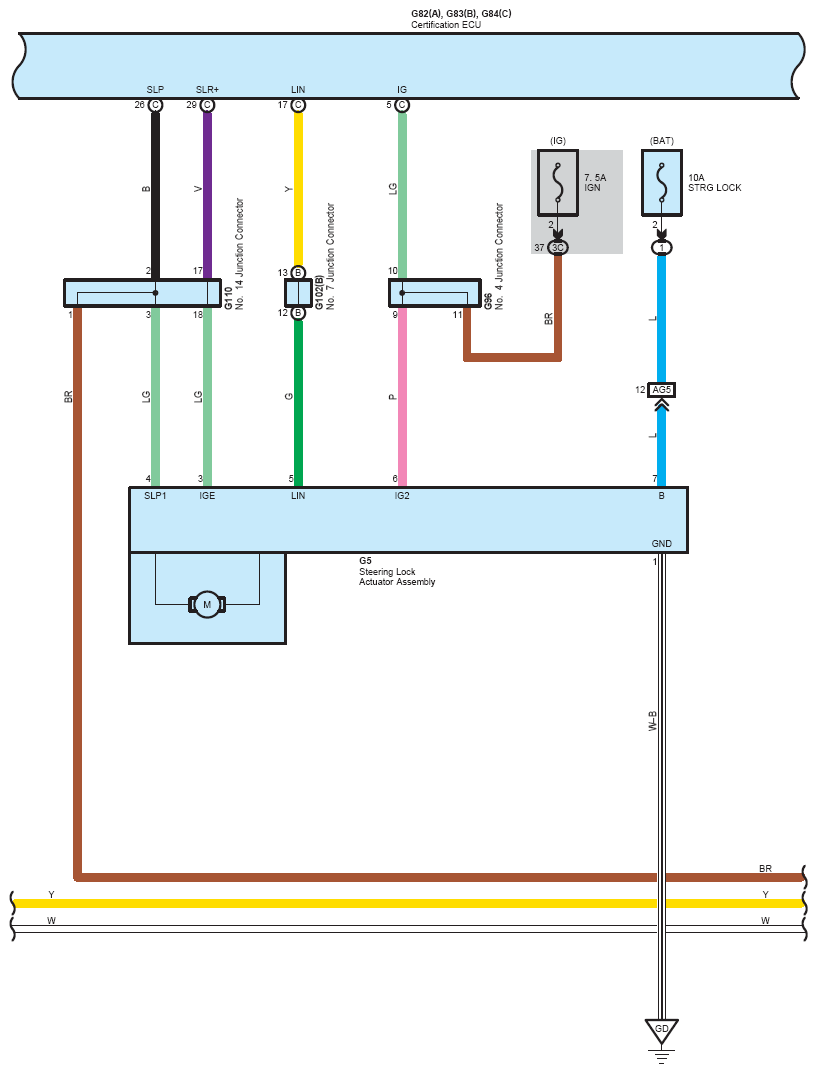

Fig 10: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (10 Of 23)
G12218499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

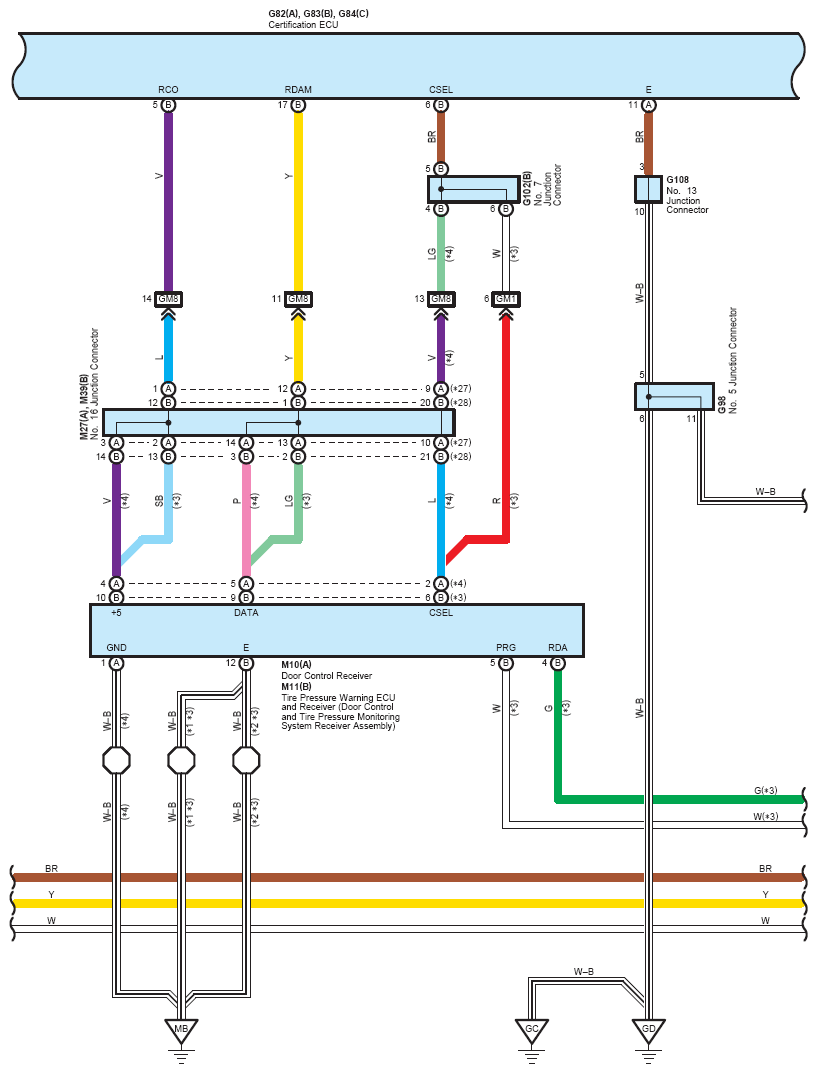

Fig 11: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (11 Of 23)
G12218500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

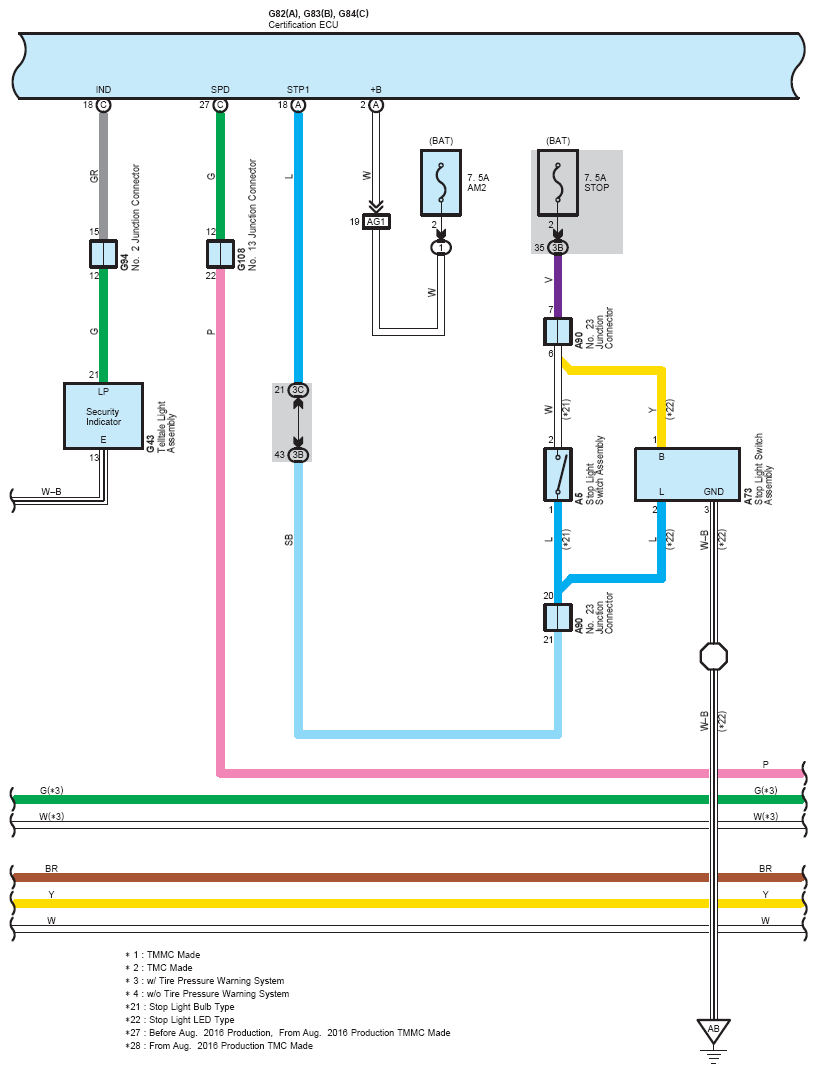

Fig 12: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (12 Of 23)
G12218501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

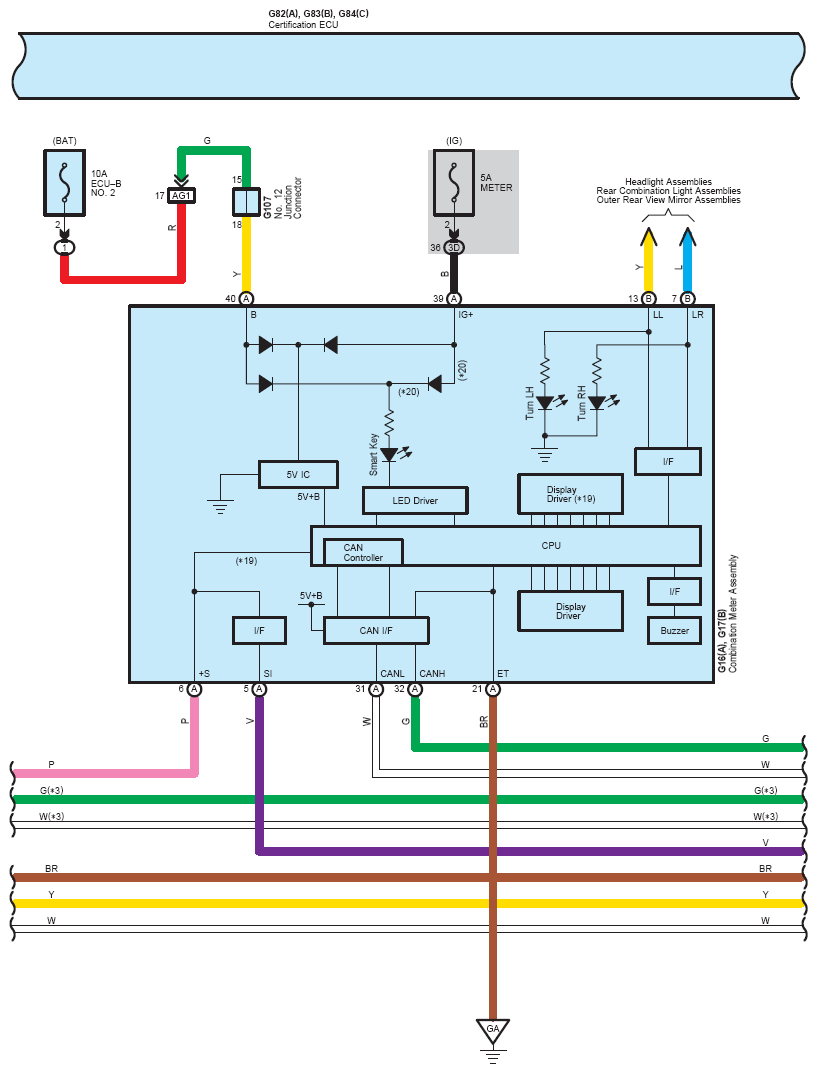

Fig 13: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (13 Of 23)
G12218502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

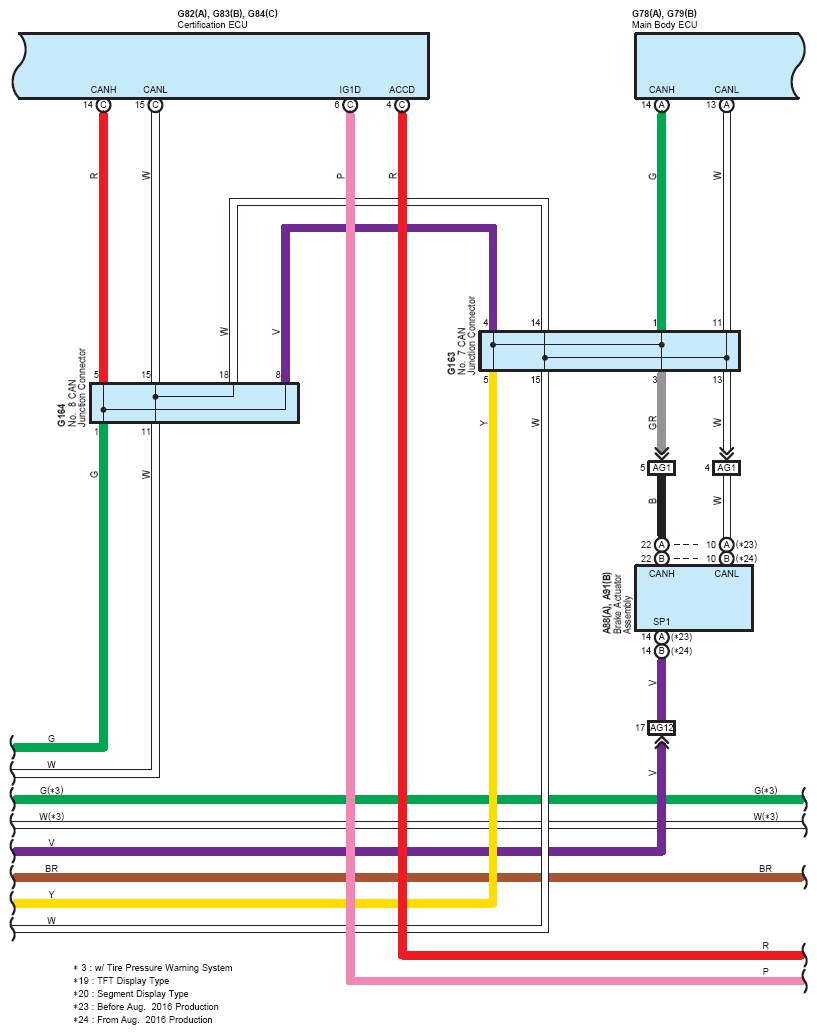

Fig 14: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (14 Of 23)
G12218503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

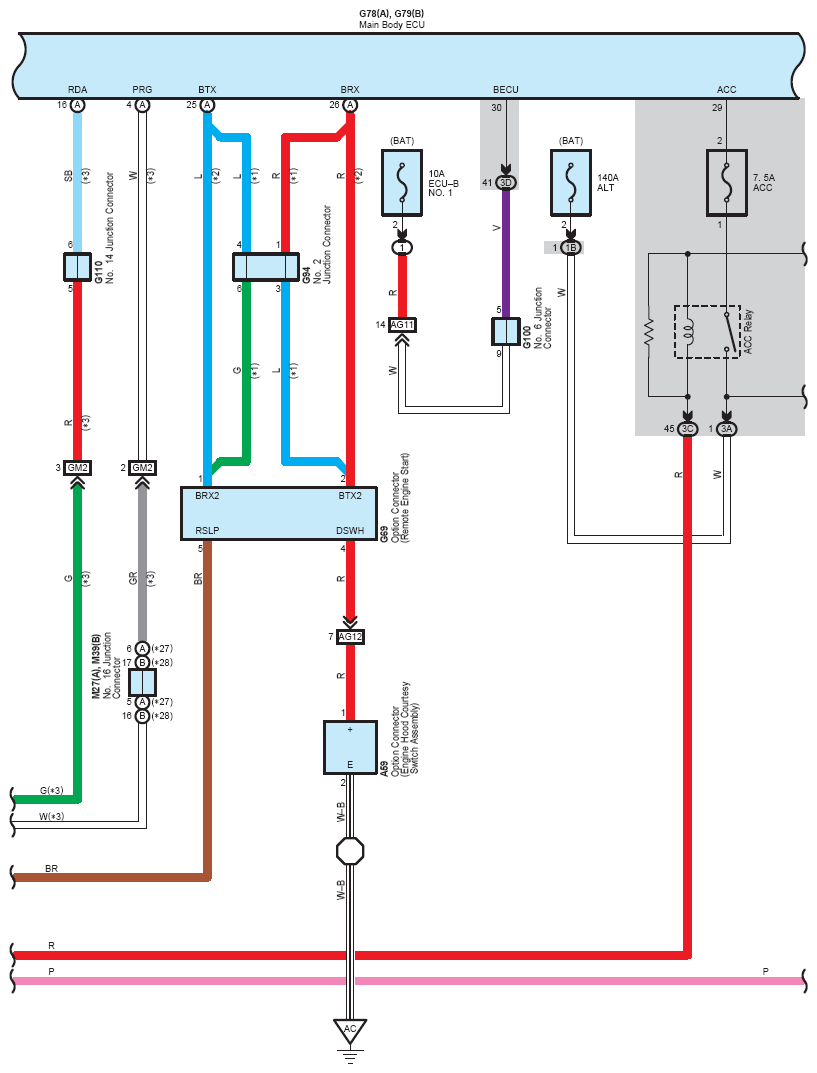

Fig 15: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (15 Of 23)
G12218504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

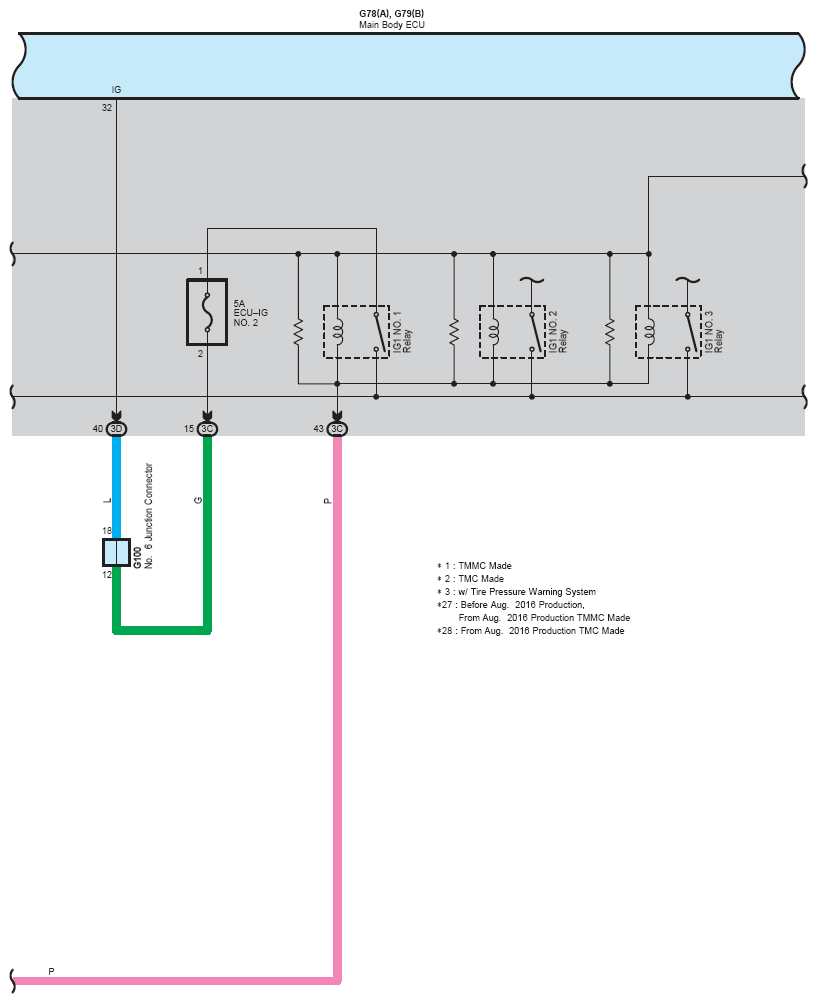

Fig 16: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (16 Of 23)
G12218505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

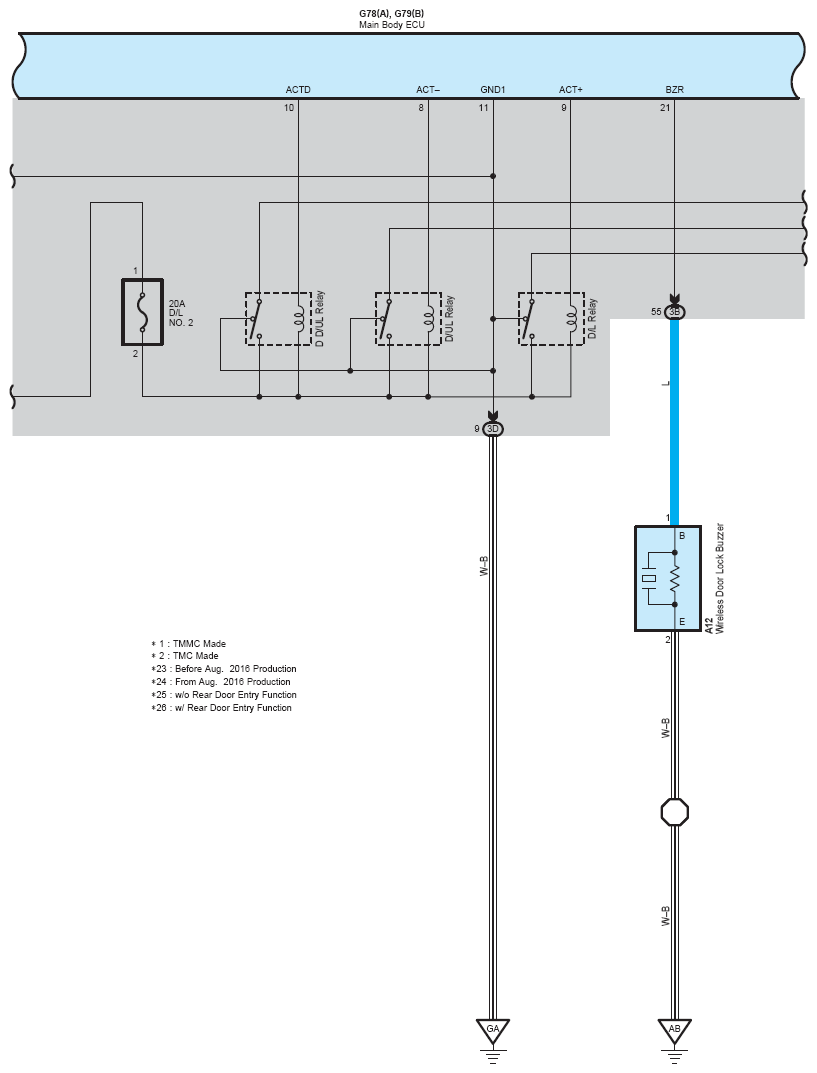

Fig 17: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (17 Of 23)
G12218506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

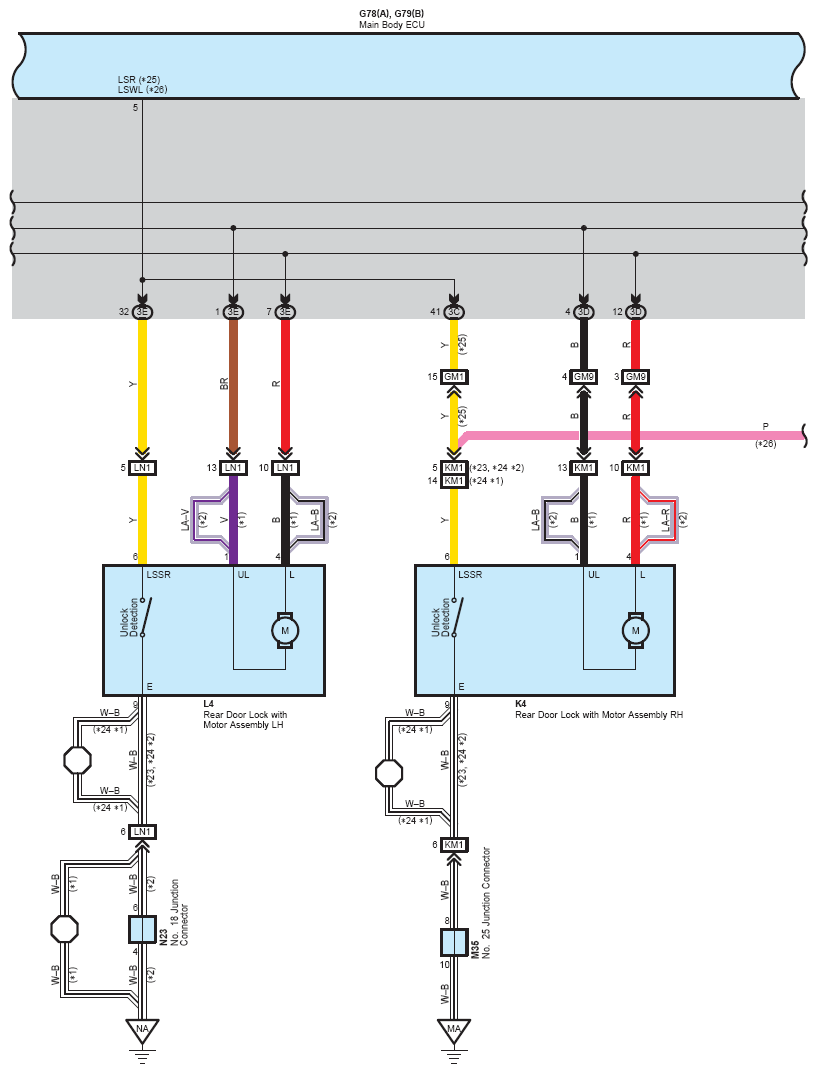

Fig 18: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (18 Of 23)
G12218507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

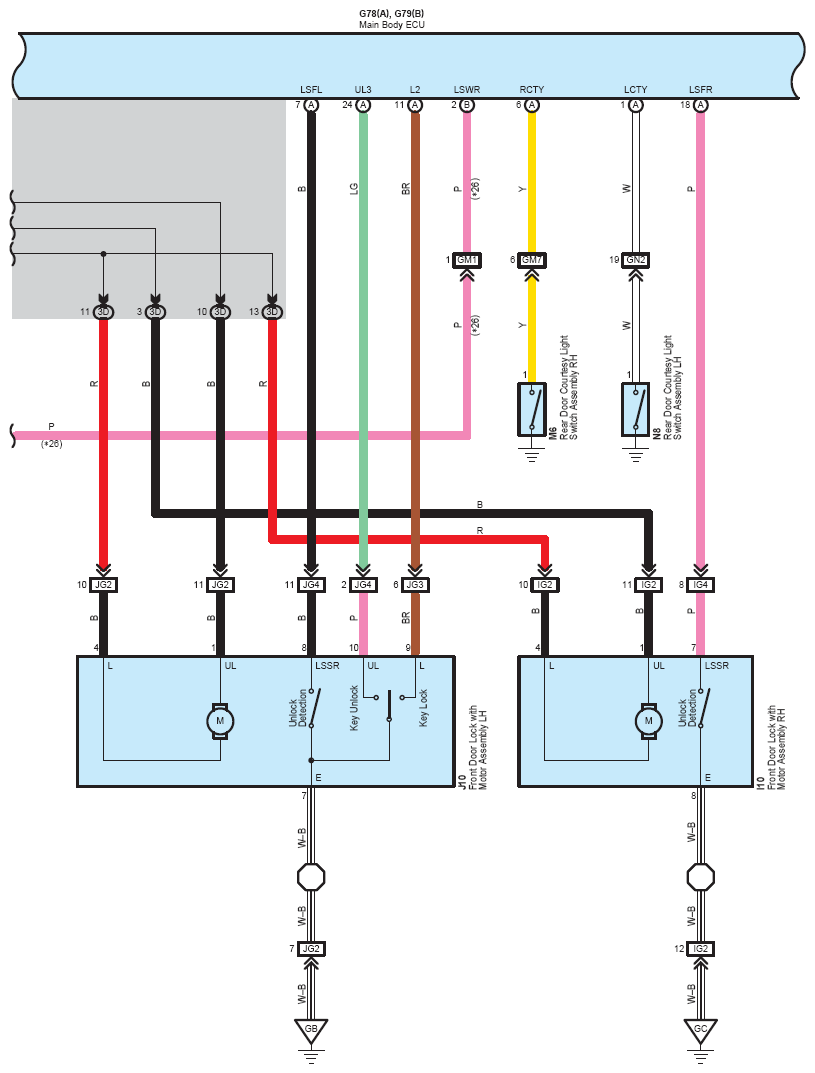

Fig 19: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (19 Of 23)
G12218508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

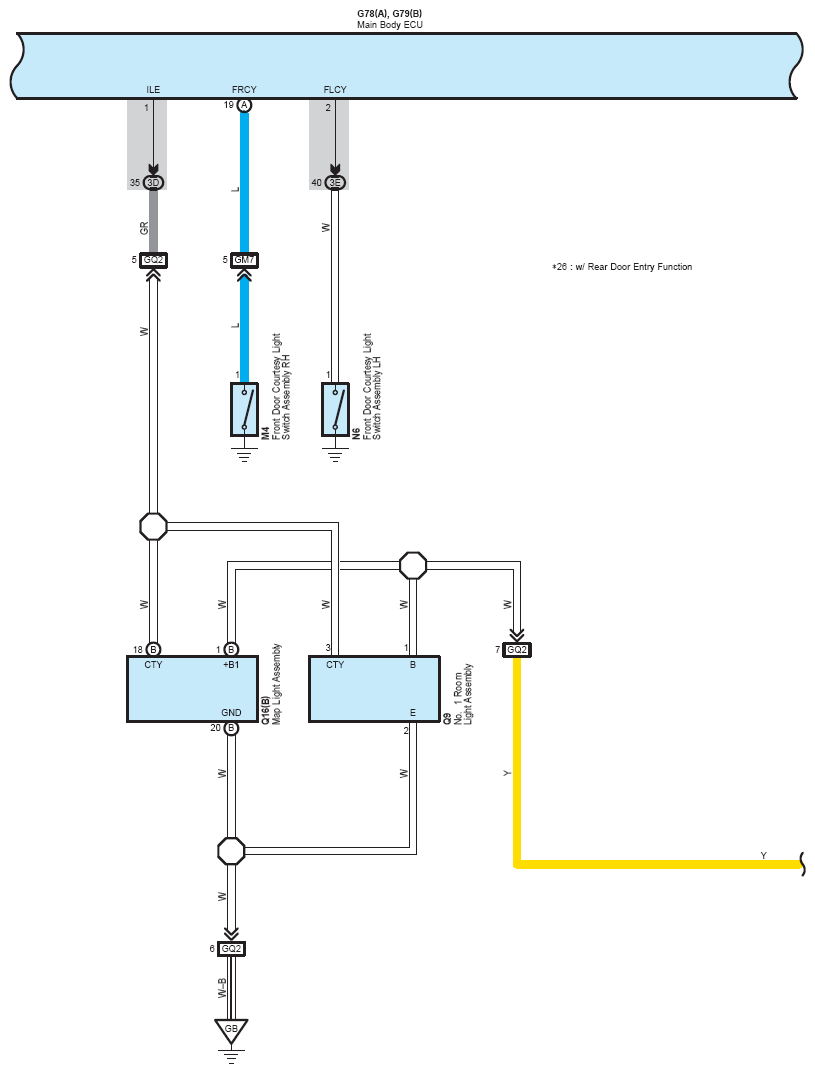

Fig 20: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (20 Of 23)
G12218509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

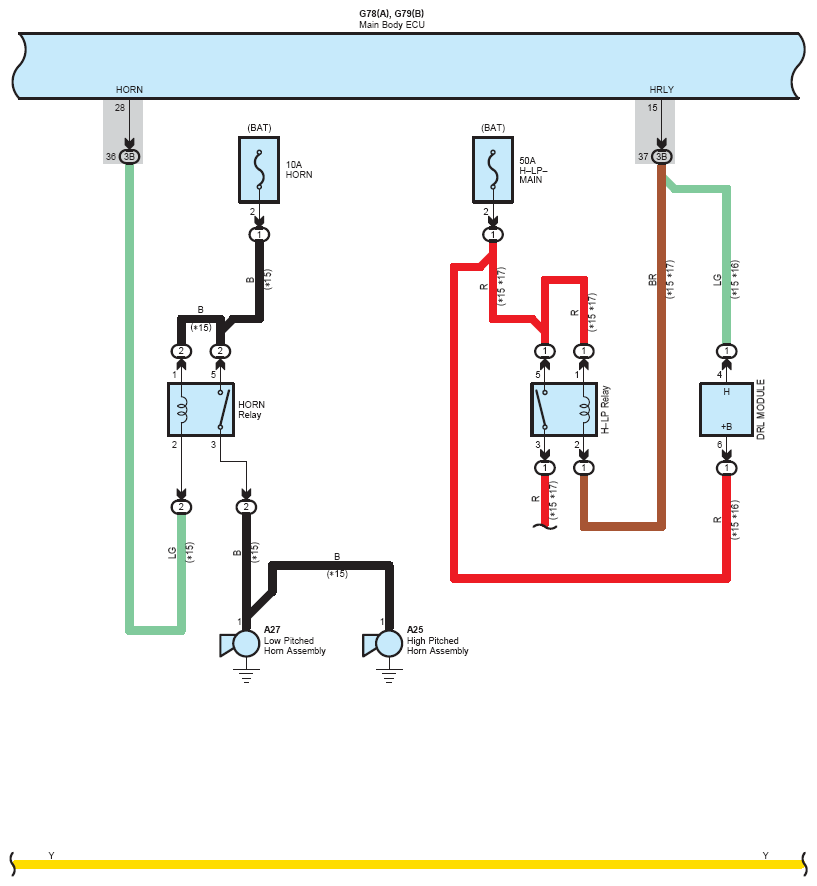

Fig 21: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (21 Of 23)
G12218510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

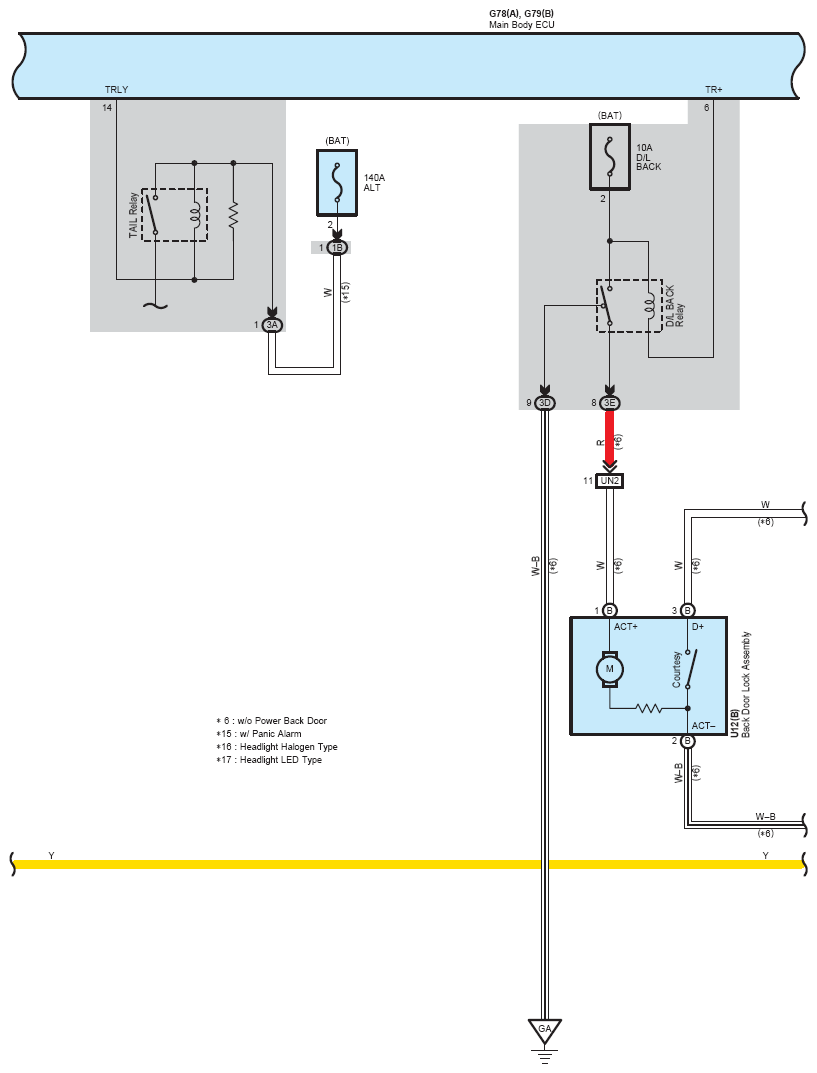

Fig 22: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (22 Of 23)
G12218511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

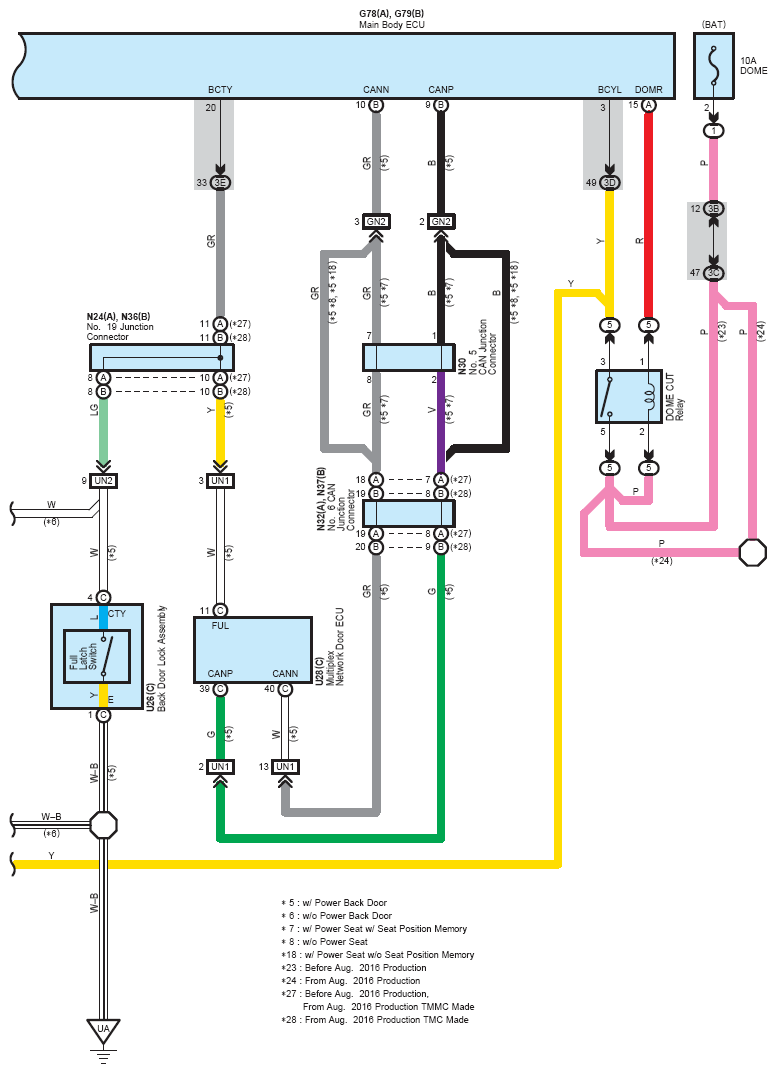

Fig 23: Back Door Opener (W/Smart Key System) (From Oct. 2015 Production), Immobilizer System (W/Smart Key System) (From Oct. 2015 Production) (23 Of 23)
G12218512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
