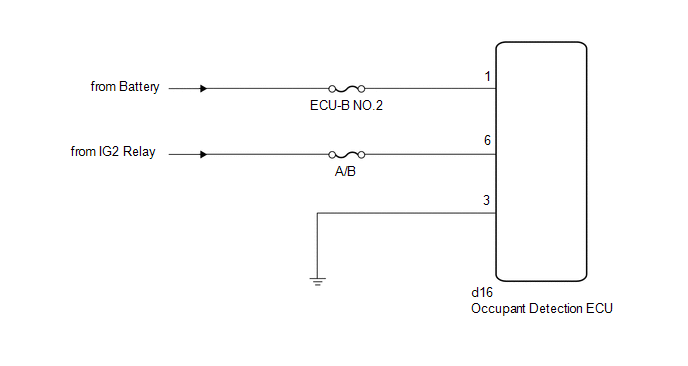

DTC B1794: Open in Occupant Classification ECU Battery Positive Line [12/2012 - ]: Wiring Diagram

GTY361042Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
