Power Source Circuit [10/2015 - ]: Procedure

1. Disconnect the Q17 forward recognition camera connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

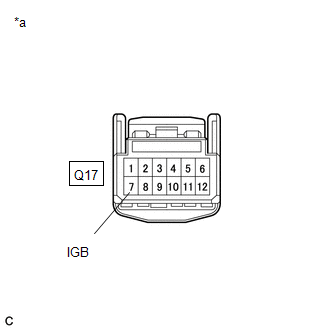

   *a	Front view of wire harness connector (to Forward Recognition Camera)

2. Turn the ignition switch to ON.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   Q17-7 (IGB) - Body ground	Ignition switch ON	11 to 14 V

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  2

1. Disconnect the Q17 forward recognition camera connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

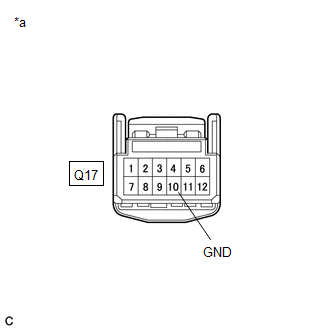

   *a	Front view of wire harness connector (to Forward Recognition Camera)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   Q17-10 (GND) - Body ground	Always	Below 1 Ω

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE:  PROBLEM SYMPTOMS TABLE [10/2015 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
