TC and CG Terminal Circuit [12/2012 - 10/2015]: Procedure

  1. CHECK FOR DTC (CAN COMMUNICATION SYSTEM)
    1. Check if the CAN communication system DTC is output.

      Refer to DIAGNOSIS SYSTEM [12/2012 - 11/2013] Refer to DIAGNOSIS SYSTEM [11/2013 - 10/2015]

    Result:

    CAN communication system DTC is output

    GO TO CAN COMMUNICATION SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING):  HOW TO PROCEED WITH TROUBLESHOOTING [12/2012 - 10/2015]

    Result:

    CAN communication system DTC is not output

    See step  2

  2. INSPECT DLC3
    1. Turn the ignition switch to ON.
      GTY368526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a DLC3
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      G14-13 (TC) - G14-4 (CG) Ignition switch ON 11 to 14 V

    Result:

    OK

    See step  5

    Result:

    NG

    See step  3

  3. CHECK HARNESS AND CONNECTOR (TC OF DLC3 - TC OF ECM AND BODY GROUND)
    1. Turn the ignition switch off.
    2. Disconnect the A62 ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G14-13 (TC) - A62-23 (TC) Always Below 1 Ω
      G14-13 (TC) - Body ground Always 10 kΩ or higher

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CHECK HARNESS AND CONNECTOR (CG OF DLC3 - BODY GROUND)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G14-4 (CG) - Body ground Always Below 1 Ω

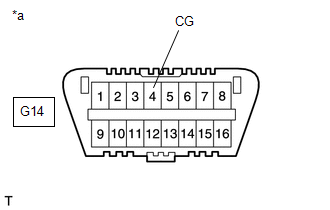

      GTY365970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of DLC3

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. INSPECT ECM (TC of DLC3 INPUT)
    1. Turn the ignition switch off.
      GTY368526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a DLC3
    2. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
      • SST: 09843-18040
    3. Turn the ignition switch to ON.
    4. Check that the malfunction indicator lamp is blinking.

    Result:

    Malfunction indicator lamp is blinking

    REPLACE ECM:  REMOVAL [12/2012 - ]

    Result:

    Malfunction indicator lamp is not blinking

    REPLACE 4WD ECU ASSEMBLY:  REMOVAL [12/2012 - ]
