Operation Check [12/2015 - ]

HINT:

Before performing the window lock switch operation check, make sure that the window lock switch is off (the switch is not pushed in).

1. Check that the front passenger and rear windows cannot be operated from each power window regulator switch assembly (front passenger side, rear LH side or rear RH side) when the window lock switch of the multiplex network master switch assembly is pushed in.

   OK

   Front passenger and rear windows are disabled.

   HINT:

   Even when the window lock switch of the multiplex network master switch assembly is pushed in, remote manual up and down and auto up and down functions can be operated.

2. Check that the front passenger and rear windows can be operated from each power window regulator switch assembly (front passenger side, rear LH side or rear RH side) when the window lock switch of the multiplex network master switch assembly is pushed in again.

   OK

   Front passenger and rear windows operate normally.

1. Check that the driver side power window operates as follows:
   OK



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch ON	Driver side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)

2. Check that the front passenger side window and rear power windows operate as follows:
   OK



   Condition	Regulator Switch	Switch Operation	Power Window
   Ignition switch ON Window lock switch off	Front passenger side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)
   	Rear LH side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)
   	Rear RH side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)

1. Check that the driver side power window operates as follows:
   OK



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch ON	Driver side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)

2. Check that the front passenger side window and rear power windows operate as follows:
   OK



   Condition	Regulator Switch	Switch Operation	Power Window
   Ignition switch ON Window lock switch off	Front passenger side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)
   	Rear LH side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)
   	Rear RH side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)

1. Check that the front passenger side window and rear power windows operate as follows:
   OK



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch ON	Front passenger side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)
   	Rear LH side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)
   	Rear RH side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)

1. Check that the front passenger side window and rear power windows operate as follows:
   OK



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch ON	Front passenger side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)
   	Rear LH side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)
   	Rear RH side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)

1. Check that each power window can be operated with the multiplex network master switch assembly, power window regulator switch assembly or rear power window regulator switch assembly after the ignition switch is turned off.

   HINT:

   If the window lock switch is on, the power windows cannot be operated by using the power window regulator switch assembly and rear power window regulator switch assembly. Therefore, turn the window lock switch off before checking the window operation.

2. Check that the key-off operation function does not operate after the driver door or front passenger side door is opened.
3. Check that all the power windows cannot be operated after more than approximately 45 seconds have elapsed since the ignition switch was turned off.

1. Check the basic function.
   WARNING:

   Do not put your fingers between the door frame and door glass to check the jam protection function. Also, prevent any part of your body from being caught during inspection.

   HINT:

   The jam protection function is operative during both the auto up and manual up operations while the engine is running or the ignition switch is ON, and also approximately 43 seconds have elapsed after the ignition switch is turned off.

   1. Fully open the window.
   2. Set a check jig wrapped with a piece of cloth near the window fully closed position.
      Fig 1: Checking Jam Protection Function

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *a	Check Jig
      *b	Cloth

   3. When an auto up or manual up operation is performed to fully close the door glass, check that the glass stops momentarily when it contacts the end of the hammer, lowers via a down operation and then stops.

      HINT:

      • If a manual up operation is performed from the seat, the door glass will lower approximately 30 mm (1.181 in.) from the point it contacts the end of the hammer or continue lowering for approximately 5 seconds and then stop.
      • If a manual up operation is not performed from the seat, the door glass will lower approximately 125 mm (4.921 in.) from the point it contacts the end of the hammer or continue lowering for approximately 5 seconds and then stop.
      • After the jam protection function operates when an auto up or manual up operation is performed, the jam protection function will not operate when the manual up operation is performed again within approximately 4 seconds.
      • After the catch protection function operates when an auto down or manual down operation is performed, the jam protection function will not operate when the manual up operation is performed again within approximately 4 seconds.
   4. While the door glass is lowering, check that the switch of that door or the remote operation using the multiplex network master switch assembly cannot be used to raise the door glass.

1. Check the basic operation.

   HINT:

   The catch protection function operates when the ignition switch is on, and when auto down and manual down are operated after the ignition switch is turned off.

   1. Fully close all door windows.
   2. While using auto down or manual down to open the window, grasp the upper edge of the door glass with one or two hands and check that the door glass operation stops.
      Fig 2: Checking Catch Protection Function

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      After the catch protection function operates when an auto down or manual down operation is performed, the catch protection function will not operate when the manual down operation is performed again within approximately 4 seconds.

1. Check that the rear quarter windows operate as follows:
   OK



   Condition	Power Quarter Window Switch	Switch Operation	Power Windows
   Ignition switch ON	-	Pulled up	Close
   		Pushed down	Open

1. Check the LED illumination (power quarter window switch).

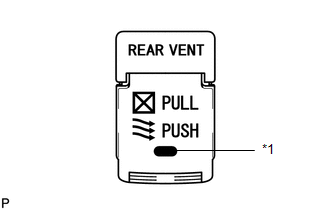

   Fig 3: power quarter window switch LED indicator light

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1

   LED

   1. Check that the LEDs located on the power quarter window switch illuminate when the headlight dimmer switch is in the tail or head position.
