SMART KEY SYSTEM(for Start Function)
>>
Symptom Tests
>>
Power Source Mode does not Change to ON (IG and ACC) [08/2016 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

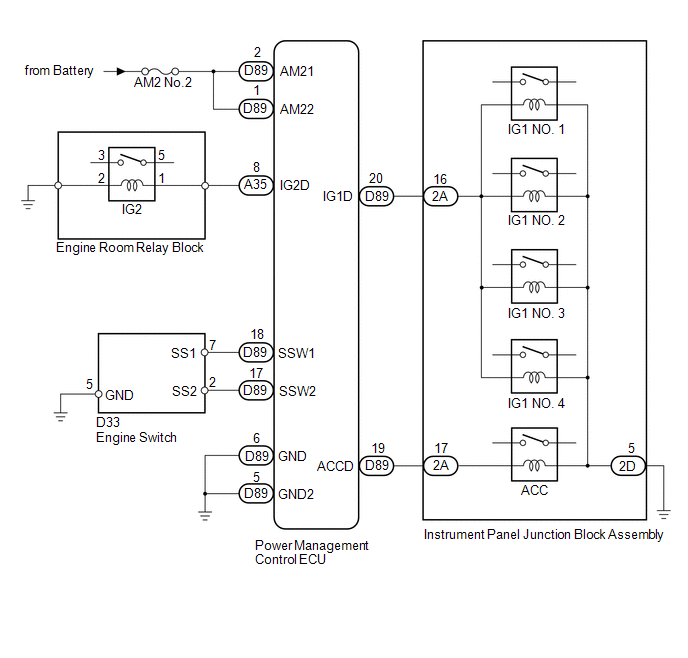

Power Source Mode does not Change to ON (IG and ACC) [08/2016 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
