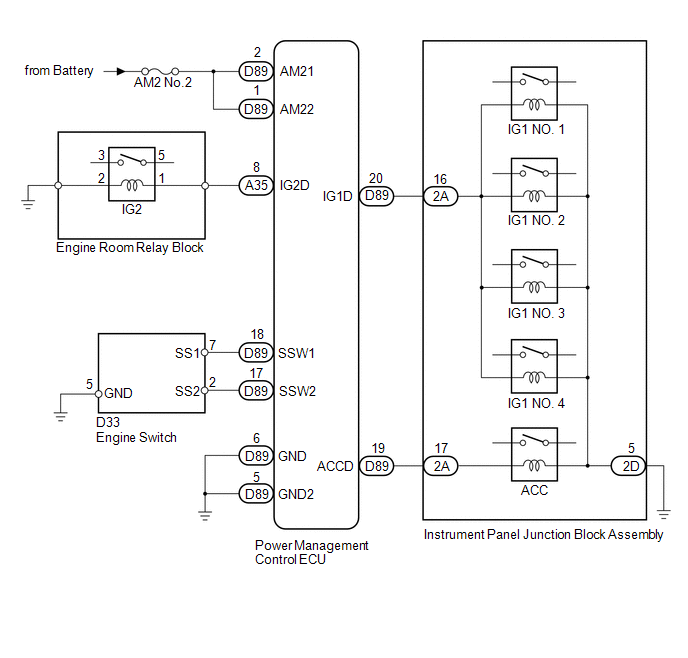

Power Source Mode does not Change to ON (IG and ACC) [12/2015 - 08/2016]: Wiring Diagram

GTY474268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
