Only Wireless Control Function is Inoperative [12/2015 - ]: Procedure

1. When the door control switch on the master switch assembly is operated, check that the locked doors unlock (Refer to OPERATION CHECK [12/2015 - ] ).

   OK

   Locked doors unlock.

Result:

NG

GO TO POWER DOOR LOCK CONTROL SYSTEM

(Refer to HOW TO PROCEED WITH TROUBLESHOOTING [12/2015 - ] )

Result:

OK

See step  2

1. Check that the key reminder warning buzzer operates normally.

   OK

   Key reminder warning buzzer operates normally.

Result:

NG

GO TO KEY REMINDER WARNING SYSTEM

(Refer to HOW TO PROCEED WITH TROUBLESHOOTING [12/2015 - ] )

Result:

OK

See step  3

1. When known good registered door control transmitter is used, check that the wireless functions operate normally.
   RESULT



   Result	Proceed to
   Wireless door LOCK/UNLOCK function operates normally with a known good door control transmitter.	A
   Wireless door LOCK/UNLOCK function does not operate.	B

Result:

B

See step  5

Result:

A

See step  4

1. Inspect the battery capacity.
   1. Remove the battery from the electrical key transmitter that does not operate (Refer to REPLACEMENT [12/2015 - ] ). Attach a lead wire (0.6 mm (0.0236 in.) in diameter or less including wire sheath) with tape or equivalent to the negative (-) terminal.
      NOTE:

      Do not wrap the lead wire around a terminal, wedge it between the terminals, or solder it. A terminal may be deformed or damaged, and the battery will not be able to be installed correctly.

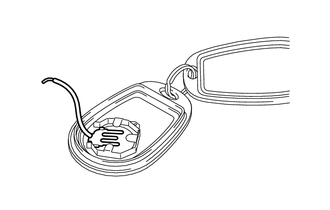

2. Carefully pull the lead wire out from the position shown in the illustration and install the previously removed transmitter battery.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

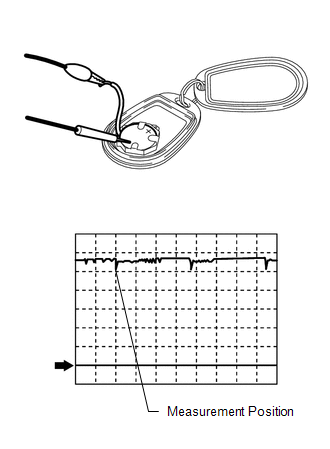

3. Using an oscilloscope, check the transmitter battery voltage waveform.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Measure the transmitter battery voltage while pressing the LOCK or UNLOCK switch on the transmitter.

   Standard Voltage

   Item	Content
   Tester Connection	Battery positive (+) - Battery negative (-)
   Tool Setting	0.5 V/DIV., 100 ms/DIV.
   Condition	Ignition switch off, all doors closed and LOCK or UNLOCK switch is pressed
   Specified Condition	2.2 to 3.2 V (Refer to the waveform)

Result:

OK

REPLACE DOOR CONTROL TRANSMITTER MODULE

Result:

NG

REPLACE TRANSMITTER BATTERY

(Refer to REPLACEMENT [12/2015 - ] )

1. Bring the transmitter near the door control receiver, and perform a wireless operation check.

   HINT:

   • When the transmitter is brought near the door control receiver, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • If the inspection result is that the problem only occurs in certain locations or times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

   OK

   Wireless functions operate normally.

Result:

OK

END (AFFECTED BY WAVE INTERFERENCE)

Result:

NG

See step  6

1. Switch to self-diagnostic mode by operating the ignition key cylinder.
   1. Make sure that the vehicle is in its initial condition. Then insert the key into the ignition key cylinder and remove it.
   2. Within 5 seconds after removing the key, insert the key into the ignition key cylinder (ignition switch off). Then turn the ignition switch to ON and off.
   3. Within 30 seconds after turning the ignition switch off, perform the following operation 9 times: turn the ignition switch to ON and then off.
      NOTE:

      If the system cannot enter self-diagnostic mode, the system returns to normal mode.

      HINT:

      • Turning the ignition switch to ON after the above operations have been completed ends self-diagnostic mode.
      • Do not lock or unlock doors during self-diagnostic mode.
2. Check that the system has switched to self-diagnostic mode by checking the room light output pattern.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Check that the system has switched to self-diagnostic mode by checking the wireless door lock buzzer output pattern.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Result:

NEXT

See step  7

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Inspect the diagnostic outputs when the door control transmitter switch is held down. The diagnostic outputs can be checked by the flash patterns of the interior lights and the buzzer patterns of the wireless door lock buzzer.
   RESULT



   Result	Proceed to
   Normal wave (light flash pattern and buzzer pattern) is output.	A
   Unmatching recognition code is output.	B
   No diagnostic outputs.	C

Result:

A

REPLACE MAIN BODY ECU

(Refer to REMOVAL [12/2015 - ] )

Result:

C

See step  9

Result:

B

See step  8

1. Check that the system can be switched to rewrite mode or add mode, and that a recognition code can be registered (Refer to REGISTRATION [12/2015 - ] ).

   OK

   Recognition code can be registered.

Result:

OK

END (GO TO OPERATION CHECK)

Result:

NG

See step  13

1. Prepare the door control transmitter from another vehicle.
2. Press and hold down the door control transmitter switch.
3. Check that an unmatching recognition code is output.

   OK

   Unmatching recognition code is output.

Result:

OK

REPLACE DOOR CONTROL TRANSMITTER MODULE

Result:

NG

See step  10

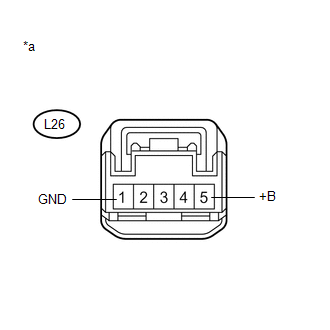

1. Disconnect the door control receiver connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   L26-1 (GND) - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   L26-5 (+B) - Body ground	Always	11 to 14 V

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Door Control Receiver)

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  11

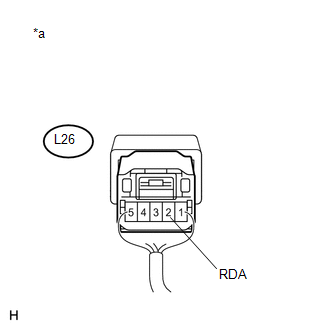

1. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   L26-2 (RDA) - Body ground	Ignition switch off, all doors closed and transmitter switch not pressed	10 to 14 V
   L26-2 (RDA) - Body ground	Ignition switch off, all doors closed and transmitter switch pressed	Pulse generation

   TEXT IN ILLUSTRATION



   *a	Component with harness connected (Door Control Receiver)

Result:

NG

REPLACE DOOR CONTROL RECEIVER

(Refer to REMOVAL [12/2015 - ] )

Result:

OK

See step  12

1. Disconnect the D13 main body ECU connector and the L26 door control receiver connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D13-26 (RDA) - L26-2 (RDA)	Always	Below 1 Ω
   D13-26 (RDA) - Body ground	Always	10 kΩ or higher
   D13-25 (PRG) - L26-3 (PRG)	Always	Below 1 Ω
   D13-25 (PRG) - Body ground	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  13

1. Temporarily replace the door control receiver with a new or known good one (Refer to REMOVAL [12/2015 - ] ).

Result:

NEXT

See step  14

1. Perform the Registration procedure (Refer to REGISTRATION [12/2015 - ] ).

Result:

NEXT

See step  15

1. Check that the doors can be locked and unlocked by using the transmitter LOCK and UNLOCK switches.

   OK

   Doors can be locked and unlocked using transmitter.

Result:

OK

END (DOOR CONTROL RECEIVER WAS DEFECTIVE)

Result:

NG

REPLACE MAIN BODY ECU

(Refer to REMOVAL [12/2015 - ] )
