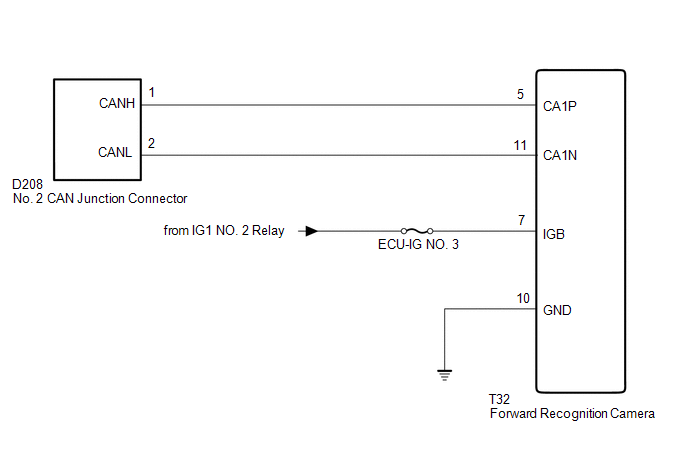

Front Camera Module Communication Stop Mode [11/2017 - 08/2018]: Wiring Diagram

GTY768734

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
