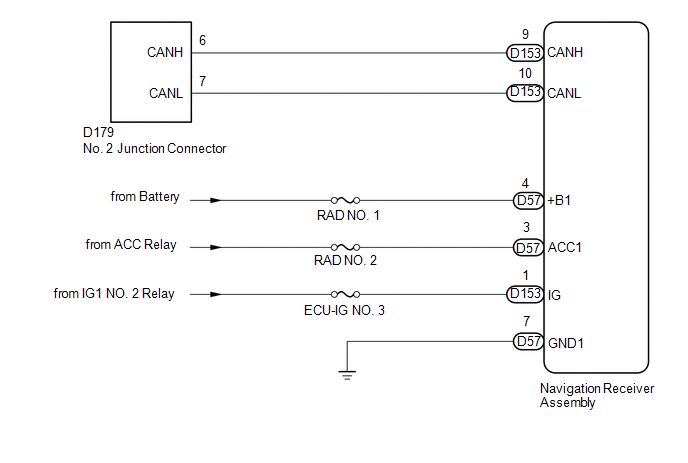

Navigation Receiver Assembly Communication Stop Mode [12/2015 - 11/2017]: Wiring Diagram

GTY724774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
