Touch Panel Switch does not Function [11/2017 - ]: Procedure

1. Check if there is any foreign matter caught between the display and exterior frame of the multi-display.

   OK

   No foreign matter is caught between the display and exterior frame of the multi-display.

   HINT:

   • If there is foreign matter between the display and exterior frame of the multi-display, the touch panel will remain pressed, preventing touch switch operation.
   • Turn the ignition switch to ACC or ON with your hand touching the operating section, non-response may occur.

Result:

NG

REMOVE FOREIGN MATTER

Result:

OK

See step  2

1. Check for foreign matter on the display.

   OK

   The display is clean.

Result:

NG

CLEAN DISPLAY AND RECHECK TOUCH PANEL

Result:

OK

See step  3

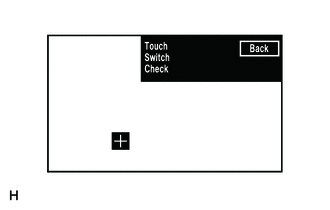

1. Enter the "Touch Switch Check" screen. [Refer to Check Touch Switch in Operation Check (Refer to OPERATION CHECK [11/2017 - ] )]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Touch the display in the area where the switch malfunction occurs.

   OK

   A "+" mark appears at the touched position.

Result:

OK

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

(Refer to REMOVAL [11/2017 - ] )

Result:

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE [11/2017 - 08/2018] Refer to PROBLEM SYMPTOMS TABLE [08/2018 - ] )
