Navigation Receiver Assembly Power Source Circuit [12/2015 - 11/2017]: Procedure

1. Disconnect the navigation receiver assembly connectors.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D57-7 (GND1) - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   D57-4 (+B1) - D57-7 (GND1)	Always	11 to 14 V
   D57-3 (ACC1) - D57-7 (GND1)	Ignition switch ACC	11 to 14 V
   D153-1 (IG) - D57-7 (GND1)	Ignition switch ON	11 to 14 V

   TEXT IN ILLUSTRATION

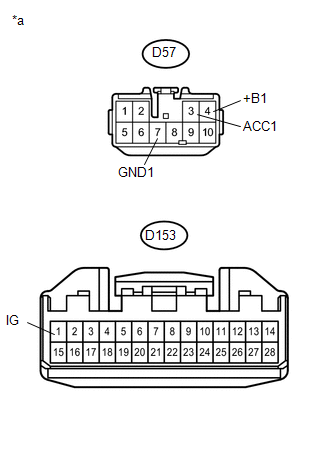

   *a	Front view of wire harness connector (to Navigation Receiver Assembly)

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE [12/2015 - 08/2016] Refer to PROBLEM SYMPTOMS TABLE [08/2016 - 11/2017] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
