Sound Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter [12/2015 - 11/2017]: Procedure

1. Disconnect the navigation receiver assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the No. 1 stereo jack adapter assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D153-25 (ADPG) - D184-9 (AUXO)	Always	Below 1 Ω
   D153-26 (VAR+) - D184-6 (ARO)	Always	Below 1 Ω
   D153-28 (VAL+) - D184-7 (ALO)	Always	Below 1 Ω
   D153-27 (VA-) - D184-8 (ASGN)	Always	Below 1 Ω
   D153-11 (AGND) - D184-10 (AGND)	Always	Below 1 Ω
   D153-25 (ADPG) - Body ground	Always	10 kΩ or higher
   D153-26 (VAR+) - Body ground	Always	10 kΩ or higher
   D153-28 (VAL+) - Body ground	Always	10 kΩ or higher
   D153-27 (VA-) - Body ground	Always	10 kΩ or higher
   D153-11 (AGND) - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION

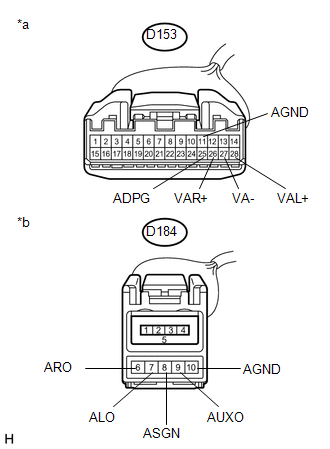

   *a	Front view of wire harness connector (to Navigation Receiver Assembly)
   *b	Front view of wire harness connector (to No. 1 Stereo Jack Adapter Assembly)

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE [12/2015 - 08/2016] Refer to PROBLEM SYMPTOMS TABLE [08/2016 - 11/2017] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
