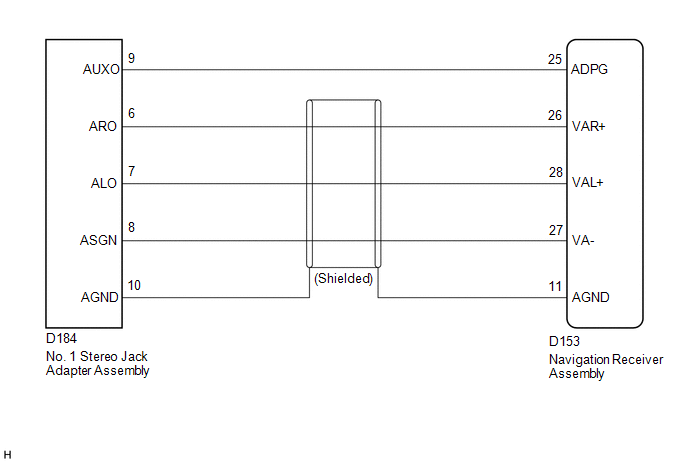

Sound Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter [12/2015 - 11/2017]: Wiring Diagram

GTY735279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
