USB Audio System Recognition/Play Error [12/2015 - 11/2017]: Procedure

1. Disconnect the USB device or "iPod" from the No. 1 stereo jack adapter assembly.
2. Check if playable files are present on the USB device or "iPod".

   HINT:

   Refer to System Description for playable files (Refer to SYSTEM DESCRIPTION [12/2015 - 11/2017] ).

3. Check if the USB device is a compatible format or "iPod" is a compatible version.

   HINT:

   Refer to System Description for compatible formats and versions (Refer to SYSTEM DESCRIPTION [12/2015 - 11/2017] ).

   RESULT



   Result	Proceed to
   Playable files exist, and compatible device format or version	A
   No playable files exist, or incompatible device format or version	B

Result:

B

END (USB DEVICE FORMAT WAS INCOMPATIBLE, "iPod" VERSION WAS INCOMPATIBLE, OR NO PLAYABLE FILES PRESENTED)

Result:

A

See step  2

1. Disconnect the No. 1 stereo jack adapter assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the navigation receiver assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D184-1 (UPI) - D137-1 (USV1)	Always	Below 1 Ω
   D184-2 (UDO-) - D137-2 (SU1-)	Always	Below 1 Ω
   D184-3 (UDO+) - D137-3 (SU1+)	Always	Below 1 Ω
   D184-4 (UJSG) - D137-4 (UGD1)	Always	Below 1 Ω
   D184-5 (UJSS) - D137-5 (USG1)	Always	Below 1 Ω
   D184-1 (UPI) - Body ground	Always	10 kΩ or higher
   D184-2 (UDO-) - Body ground	Always	10 kΩ or higher
   D184-3 (UDO+) - Body ground	Always	10 kΩ or higher
   D184-4 (UJSG) - Body ground	Always	10 kΩ or higher
   D184-5 (UJSS) - Body ground	Always	10 kΩ or higher

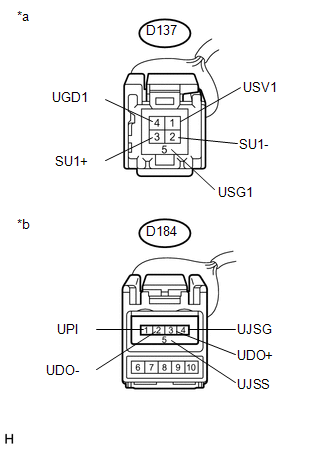

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Navigation Receiver Assembly)
   *b	Front view of wire harness connector (to No. 1 Stereo Jack Adapter Assembly)

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

1. Disconnect the No. 1 stereo jack adapter assembly connector.
2. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   D184-1 (UPI) - D184-4 (UJSG)	Ignition switch ACC	4.5 to 5.5 V

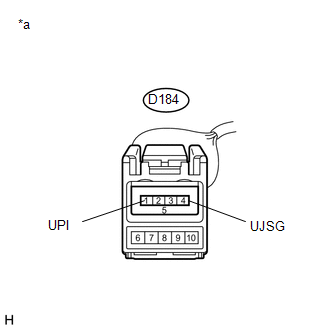

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to No. 1 Stereo Jack Adapter Assembly)

Result:

NG

REPLACE NAVIGATION RECEIVER ASSEMBLY

(Refer to REMOVAL [12/2015 - 11/2017] )

Result:

OK

See step  4

1. Delete all files in the USB device or "iPod" and format/restore it.
2. Save the data again and check if it can be played on the in-vehicle device.
   NOTE:

   Formatting a USB device or restoring an "iPod" erases all music on the device. Ensure that a backup of the music data is available before performing this operation.

   OK

   Malfunction disappears.

Result:

OK

END

Result:

NG

See step  5

1. Turn the ignition switch off.

   HINT:

   When this malfunction occurs, it is necessary to turn the ignition switch off to make it possible for the vehicle to recognize a new device when it is connected.

2. Turn the ignition switch to ACC.
3. Connect a known good USB device or "iPod" to the No. 1 stereo jack adapter assembly.

   HINT:

   • If the malfunction occurred when a USB device was in use, use another USB device for the inspection. If the malfunction occurred when an "iPod" was in use, use another "iPod" for the inspection.
   • Refer to System Description for compatible formats and versions (Refer to SYSTEM DESCRIPTION [12/2015 - 11/2017] ).

Result:

NEXT

See step  6

1. Check if a USB device or "iPod" is recognized by the navigation receiver assembly, and if information such as track, artist and album names is displayed on the screen.

   OK

   USB device or "iPod" is recognized properly and the information is displayed on the screen.

Result:

OK

USB DEVICE OR "iPod" WAS INCOMPATIBLE OR DEFECTIVE

Result:

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE [12/2015 - 08/2016] Refer to PROBLEM SYMPTOMS TABLE [08/2016 - 11/2017] )
