Power Source Circuit [12/2015 - ]: Procedure

1. Disconnect the D78 windshield wiper relay assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   D78-12 (IG) - Body ground	Ignition switch ON	11 to 14 V

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D78-26 (E) - Body ground	Always	Below 1 Ω

   TEXT IN ILLUSTRATION

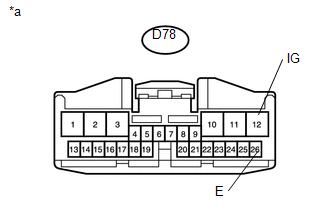

   *a	Front view of wire harness connector (to Windshield Wiper Relay Assembly)

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE [12/2015 - ] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
