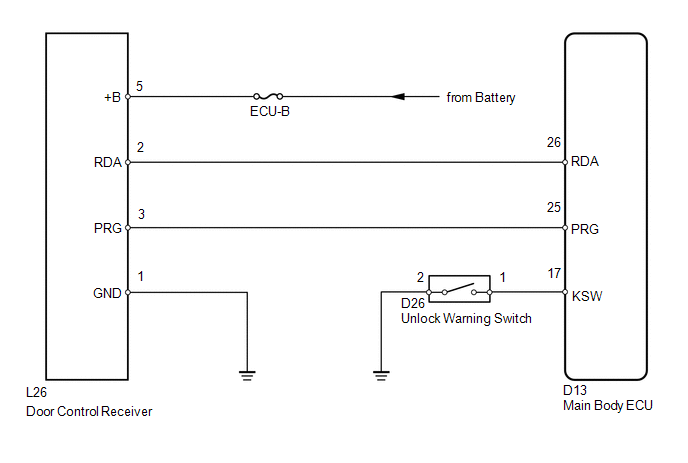

Only Wireless Control Function is Inoperative [12/2015 - ]: Wiring Diagram

GTY708890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
