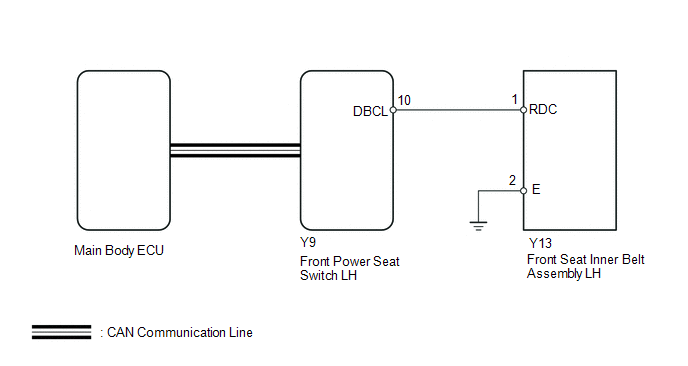

Power Seat Power Easy Access System Function does not Operate [12/2015 - ]: Wiring Diagram

GTY719683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
