System Diagrams

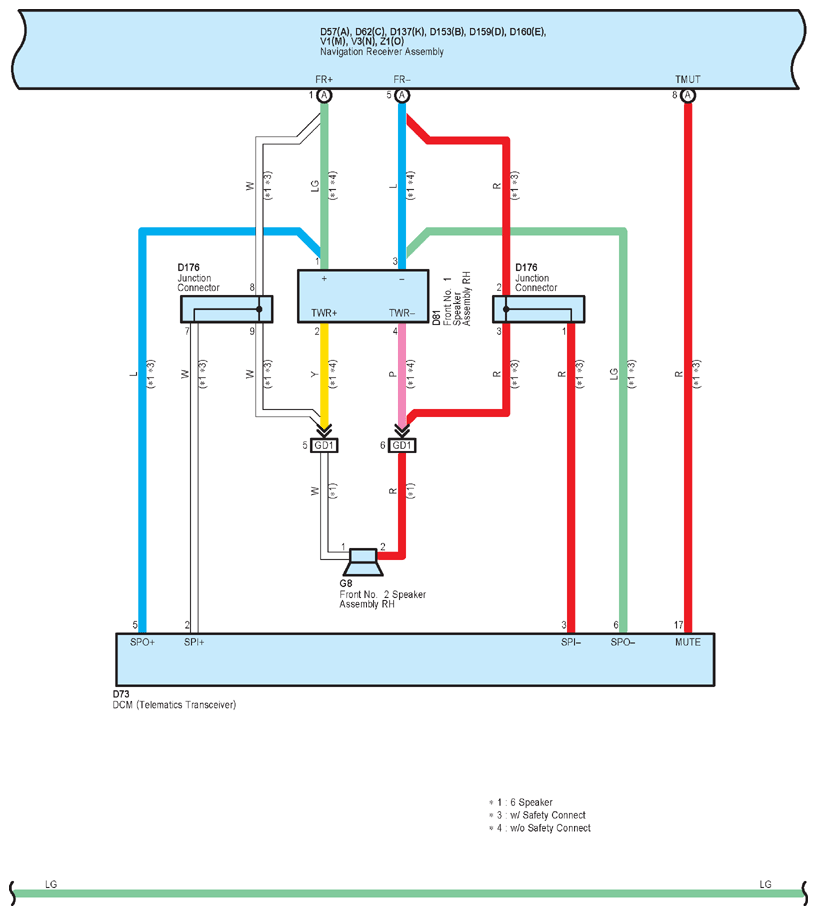

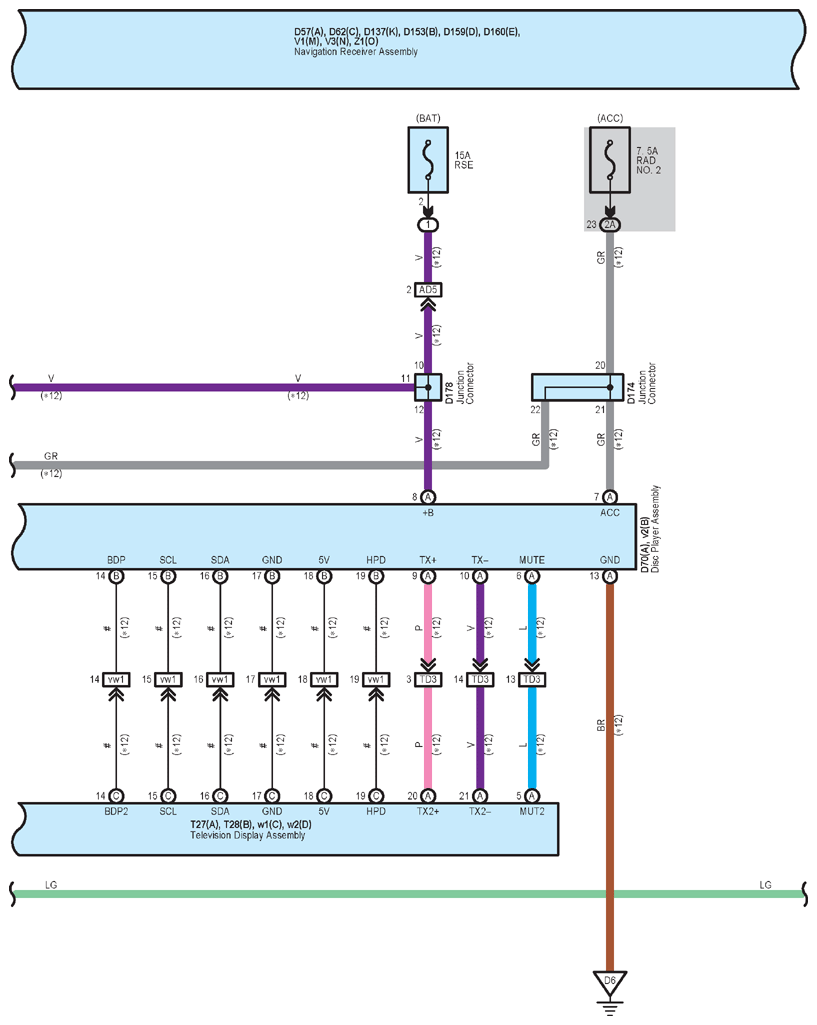

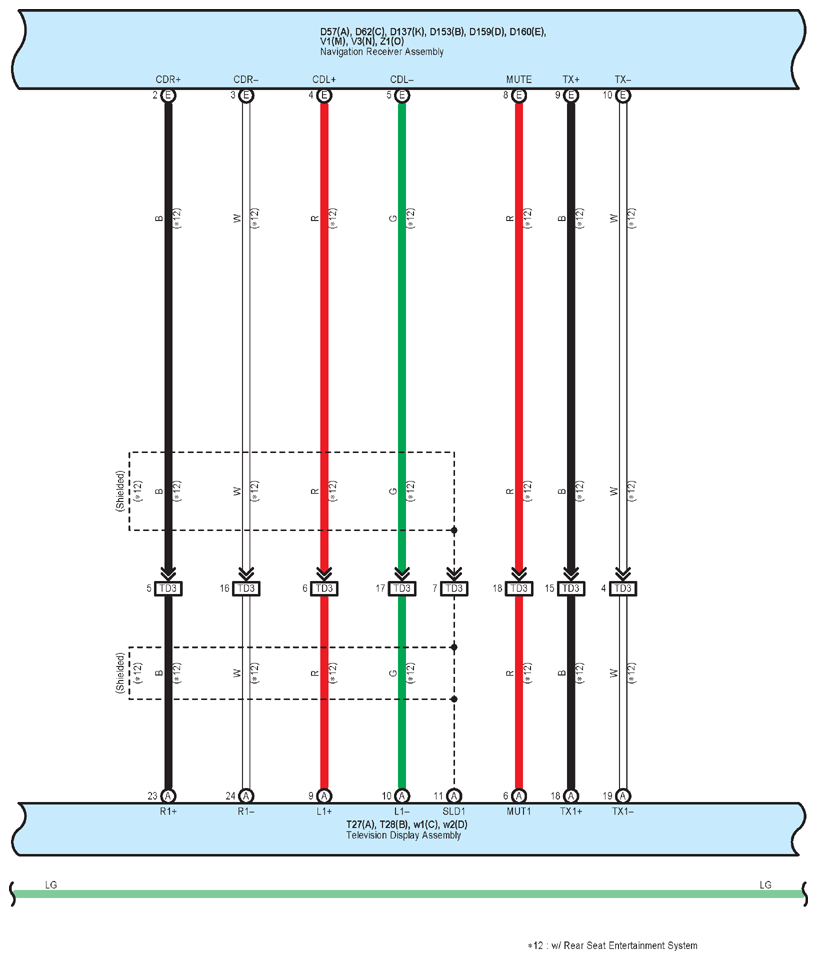

Fig 1: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (1 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

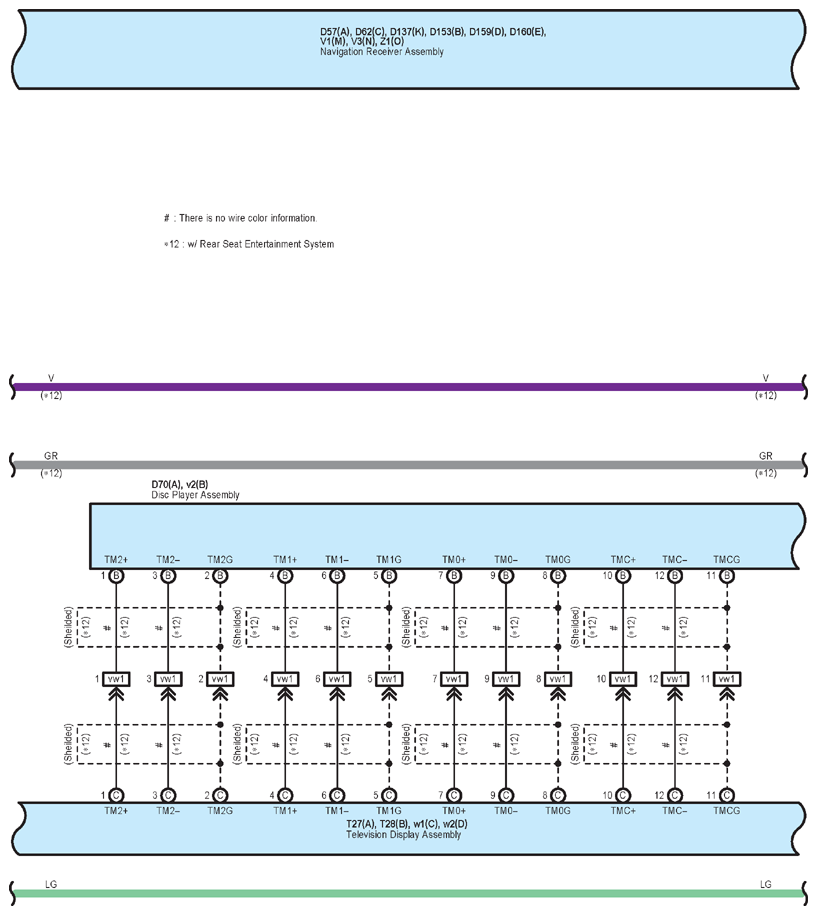

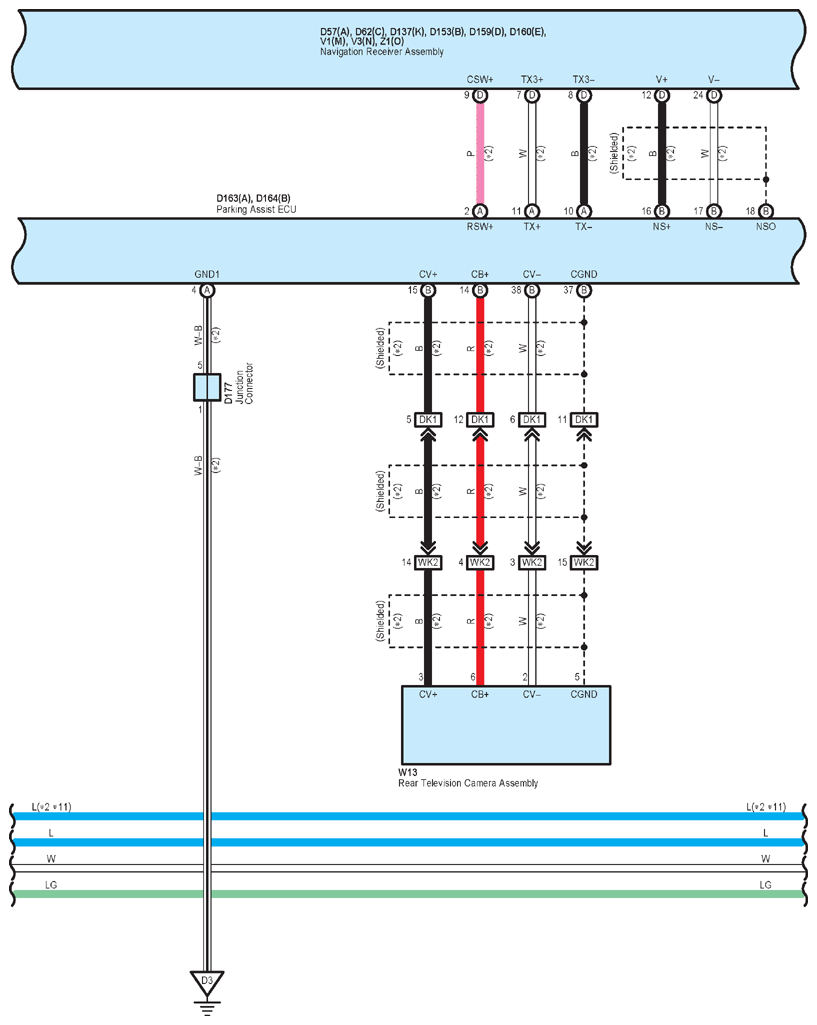

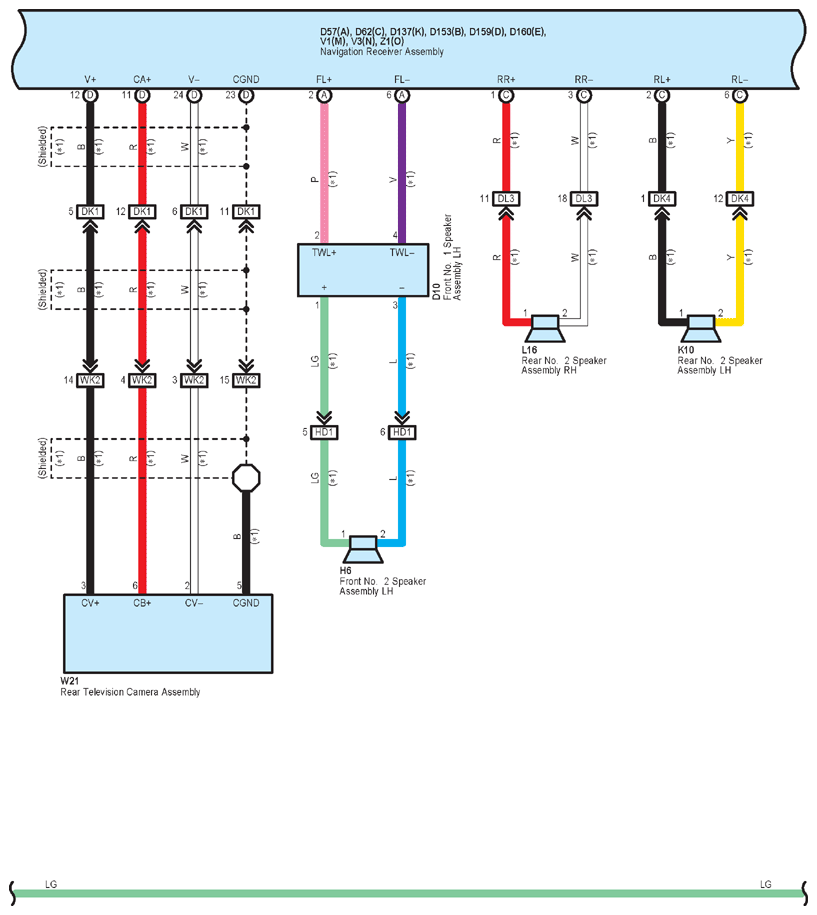

Fig 2: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (2 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

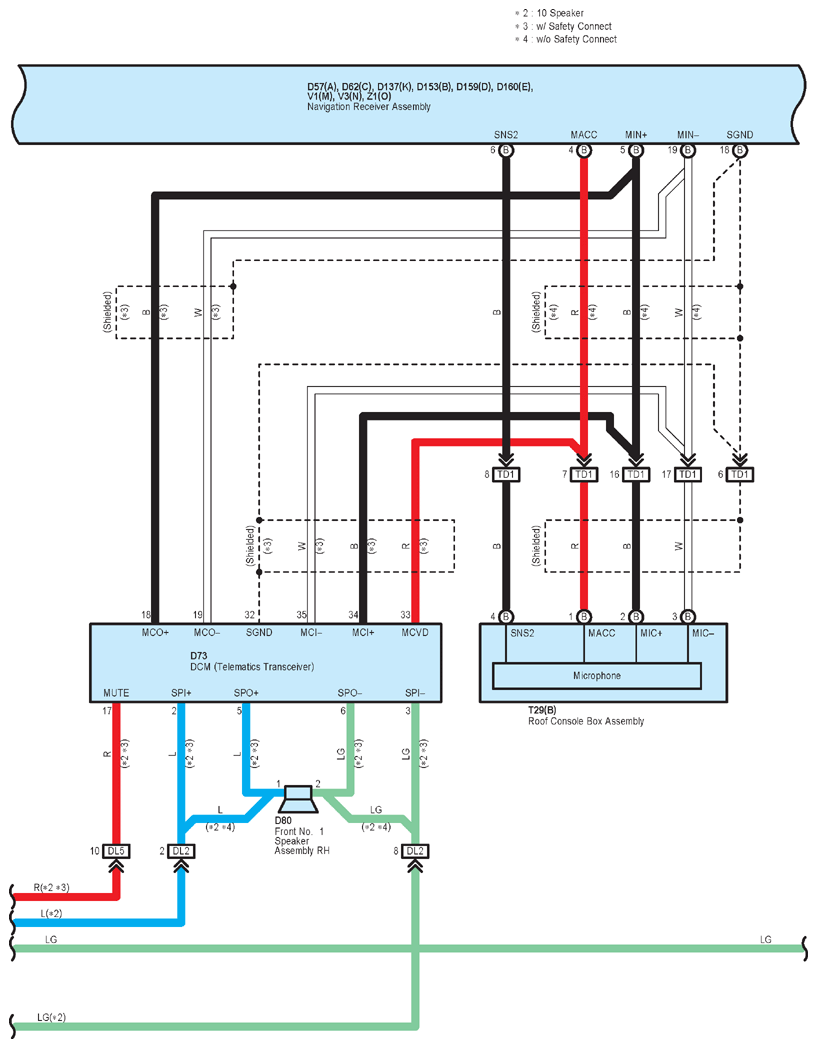

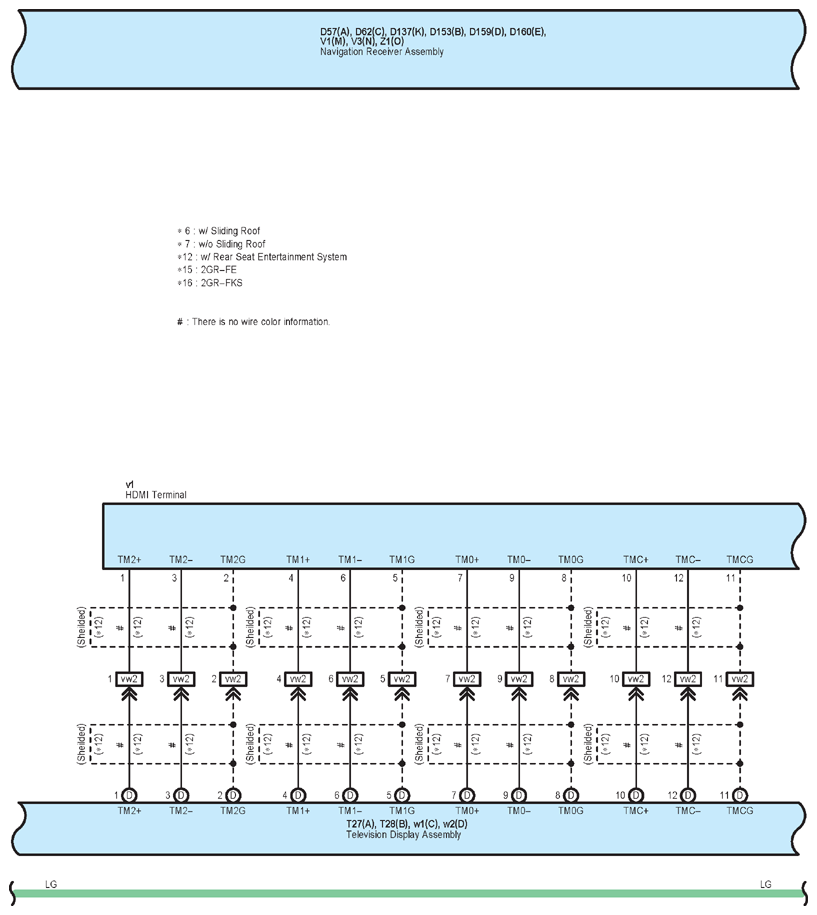

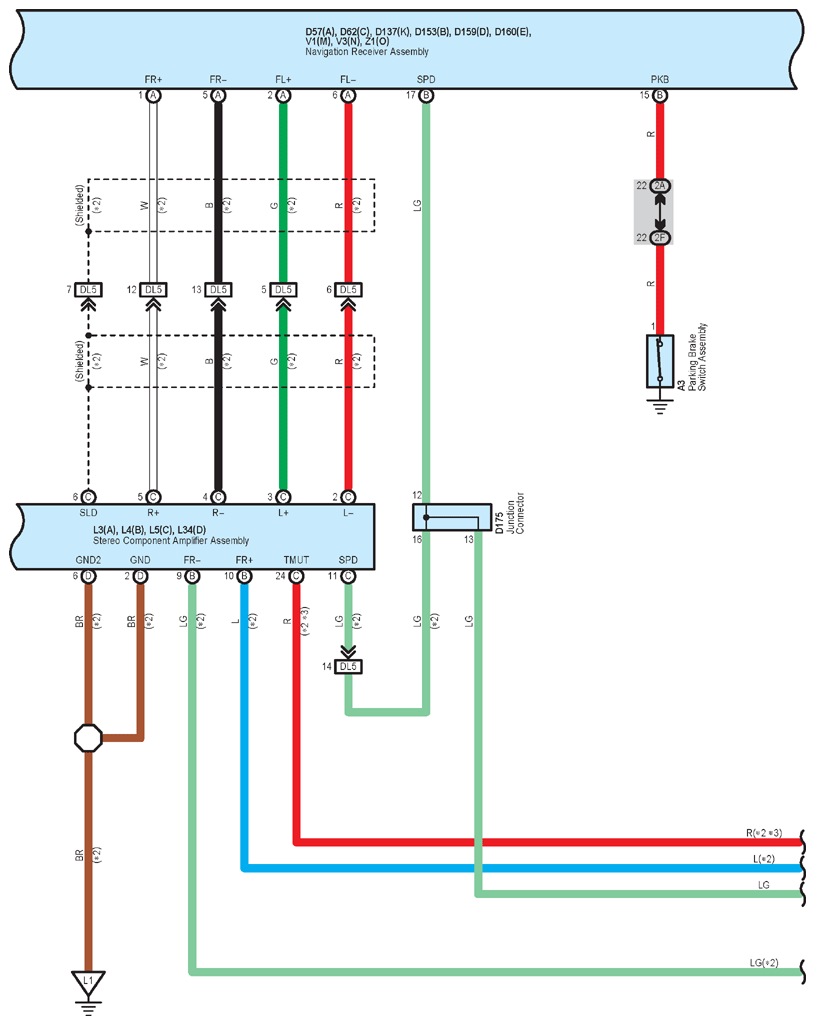

Fig 3: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (3 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

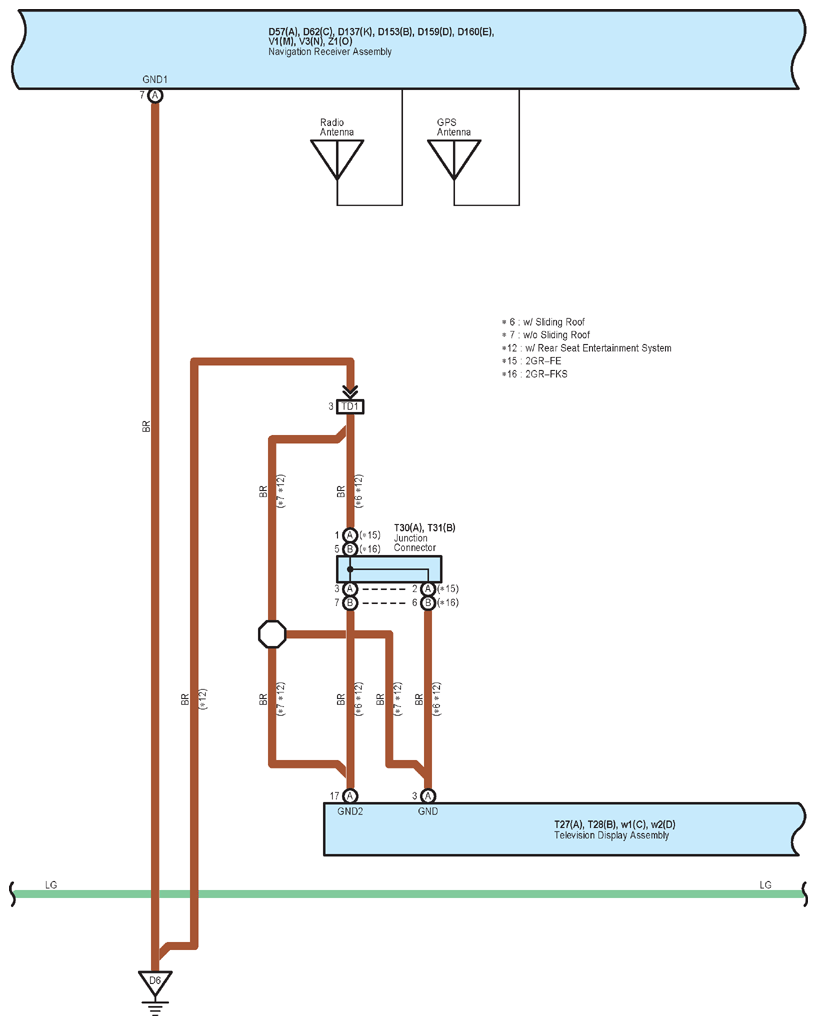

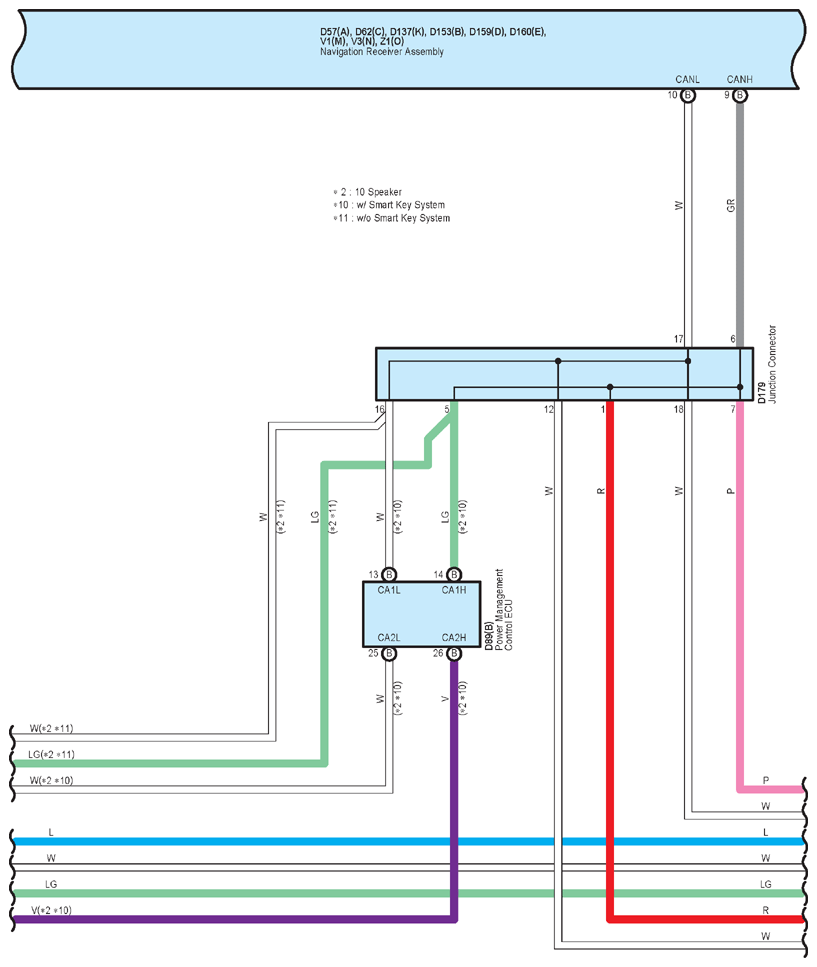

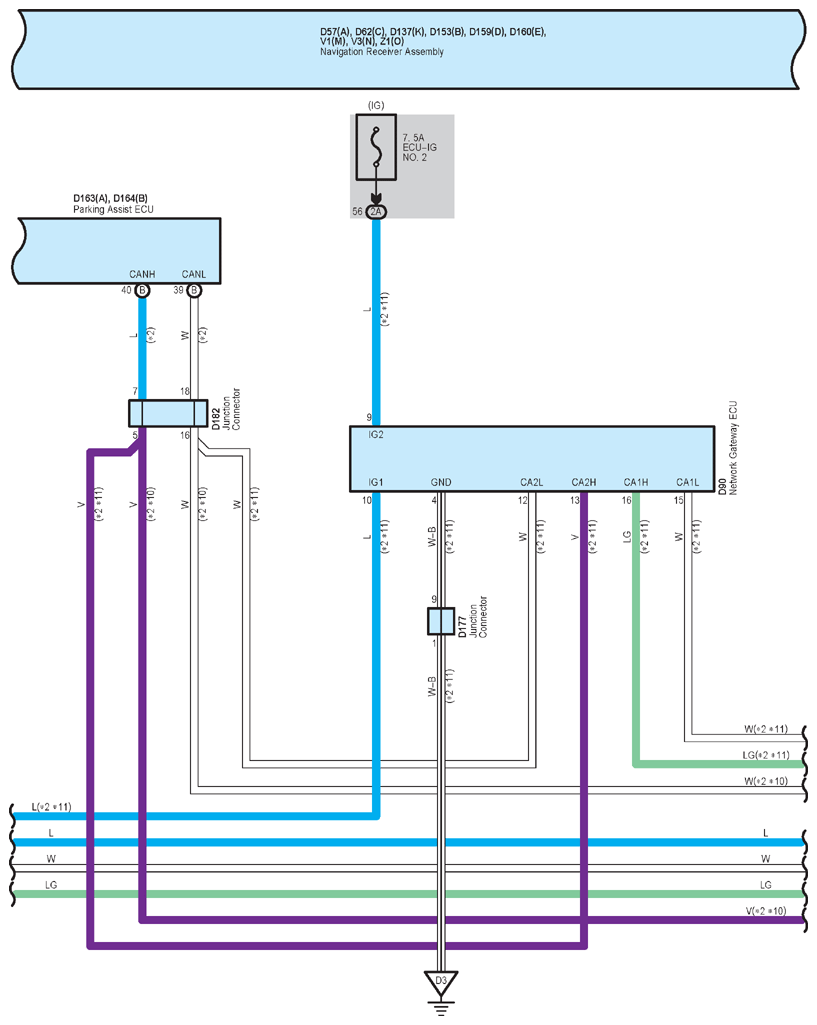

Fig 4: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (4 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

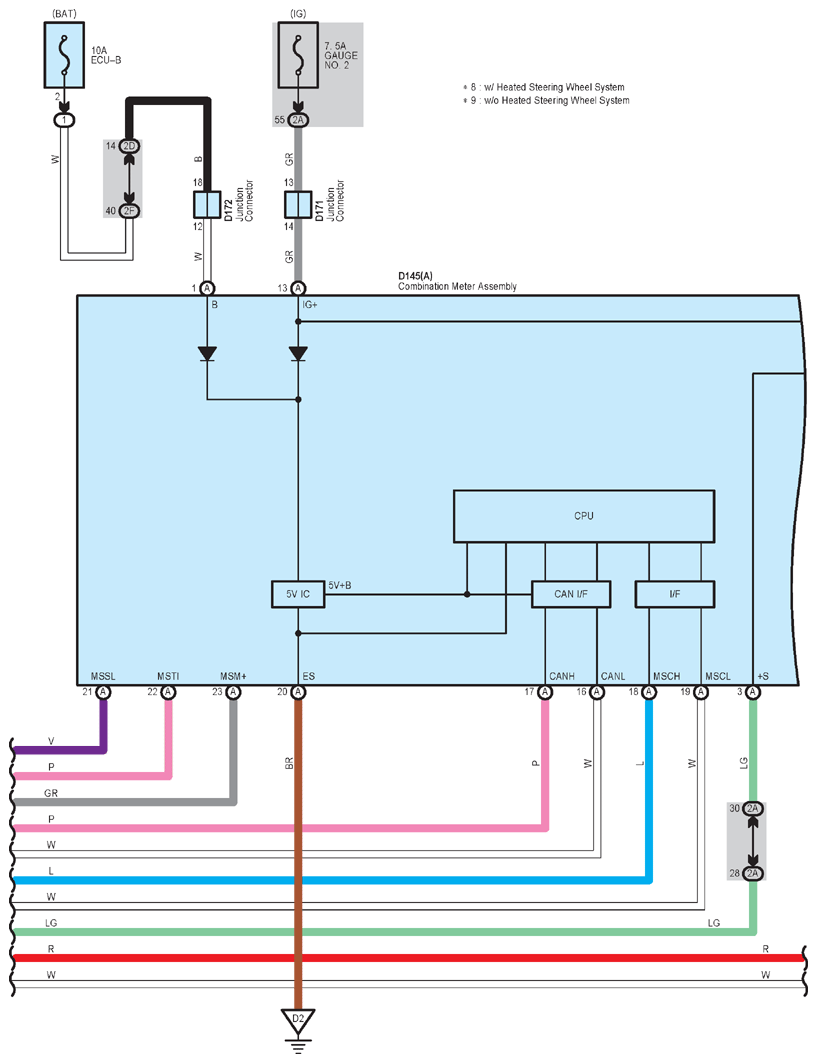

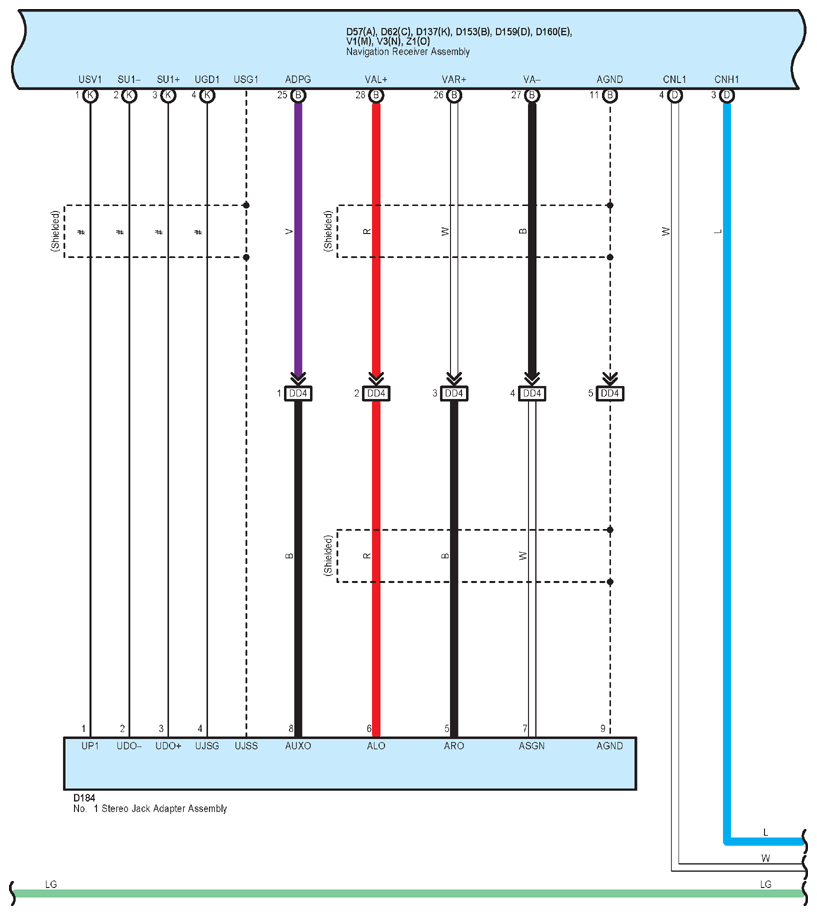

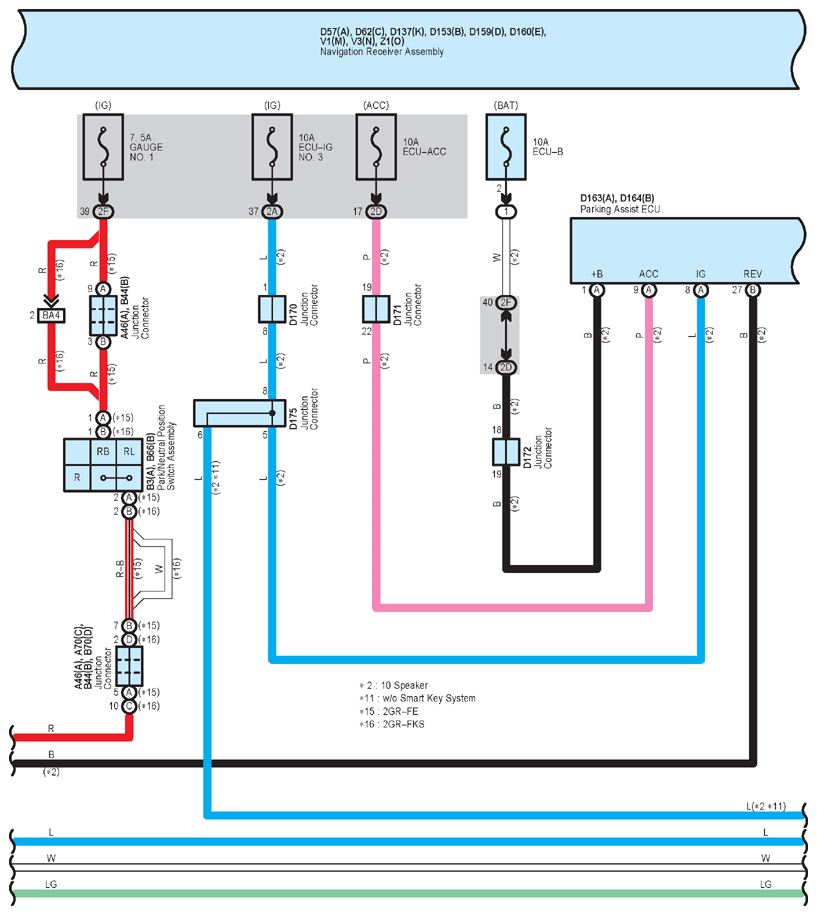

Fig 5: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (5 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

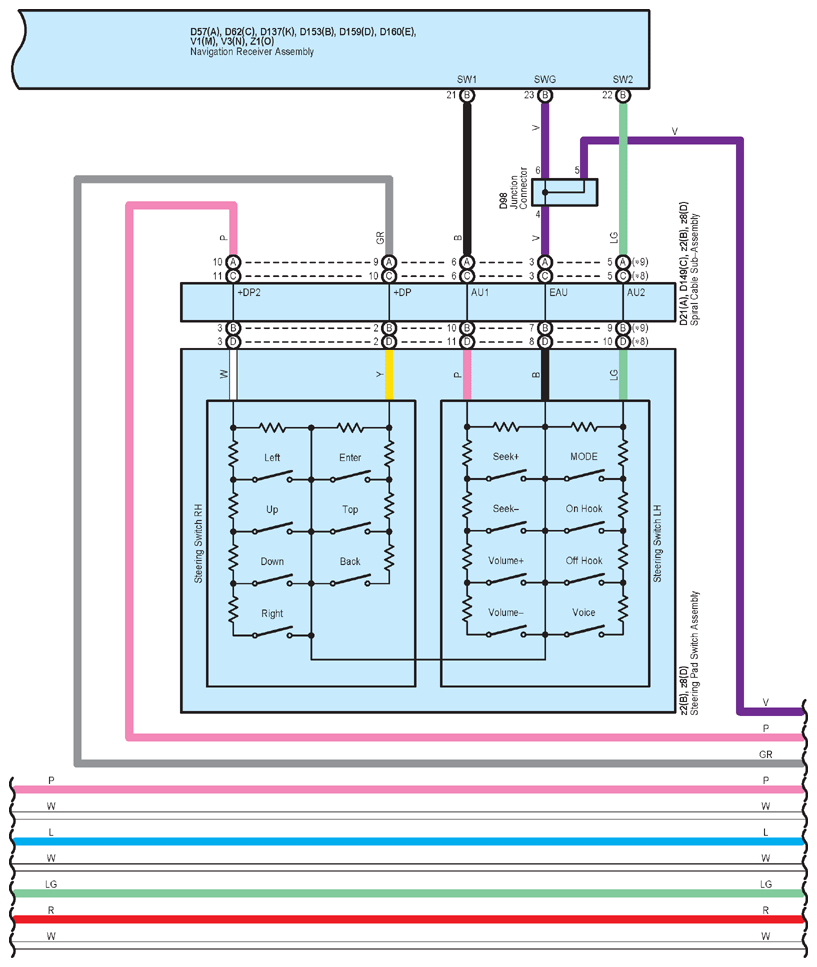

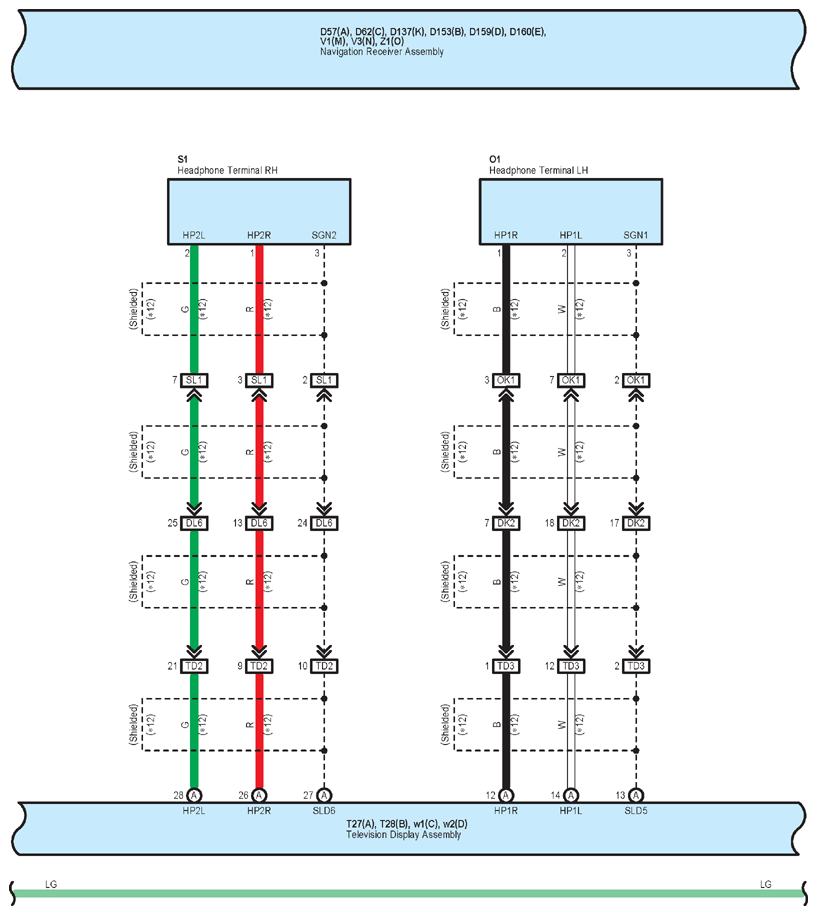

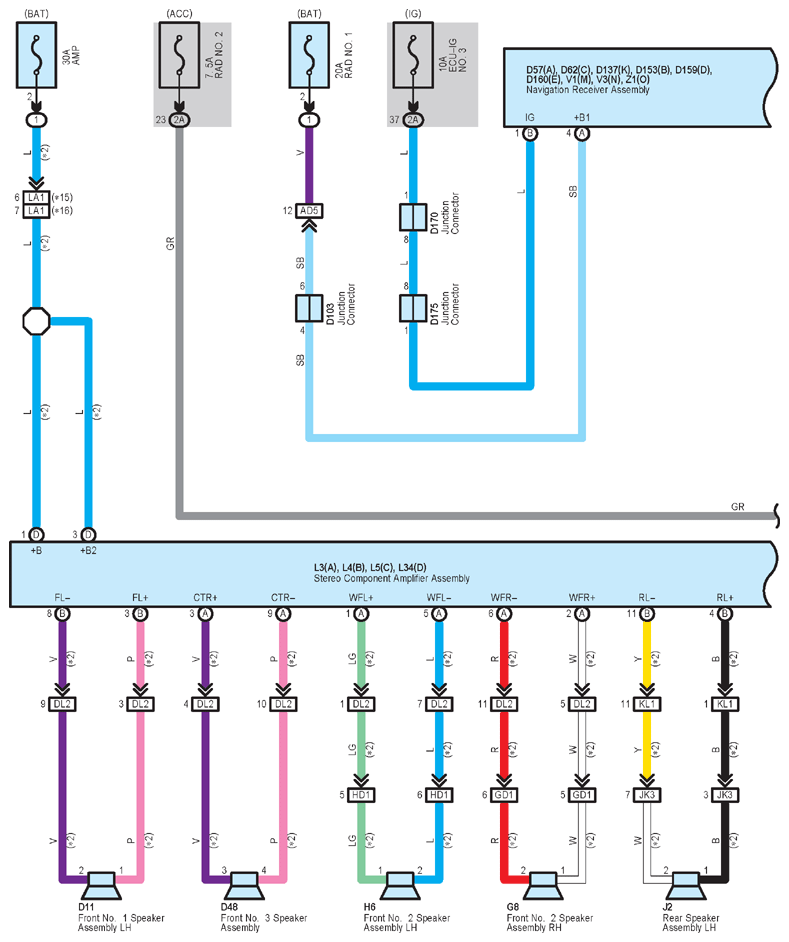

Fig 6: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (6 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

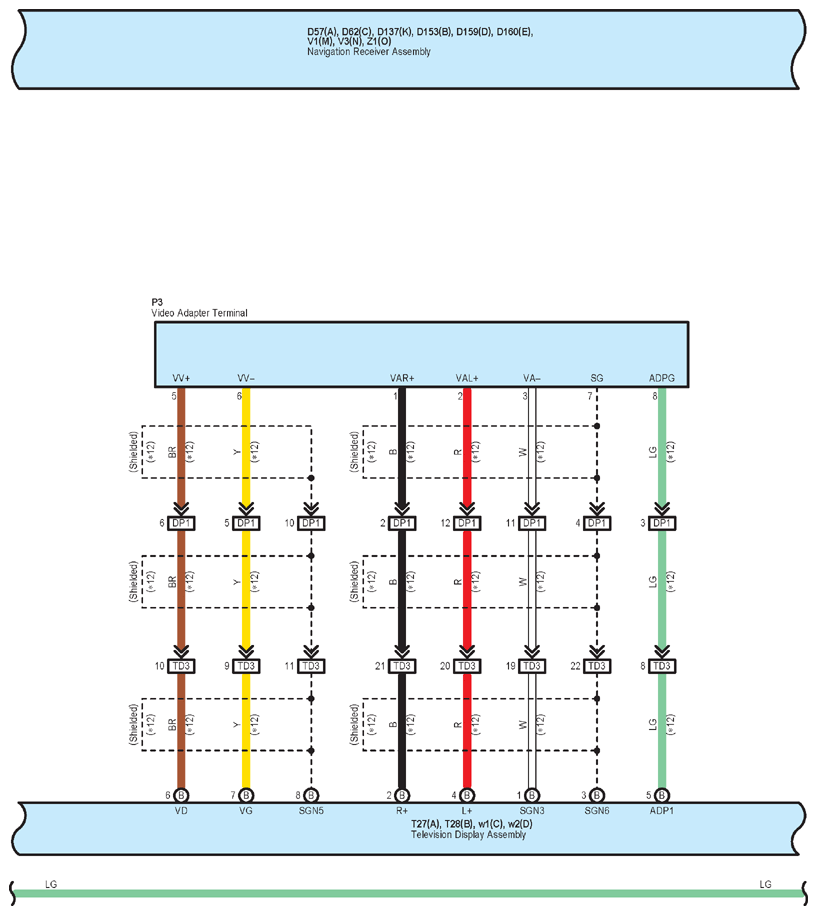

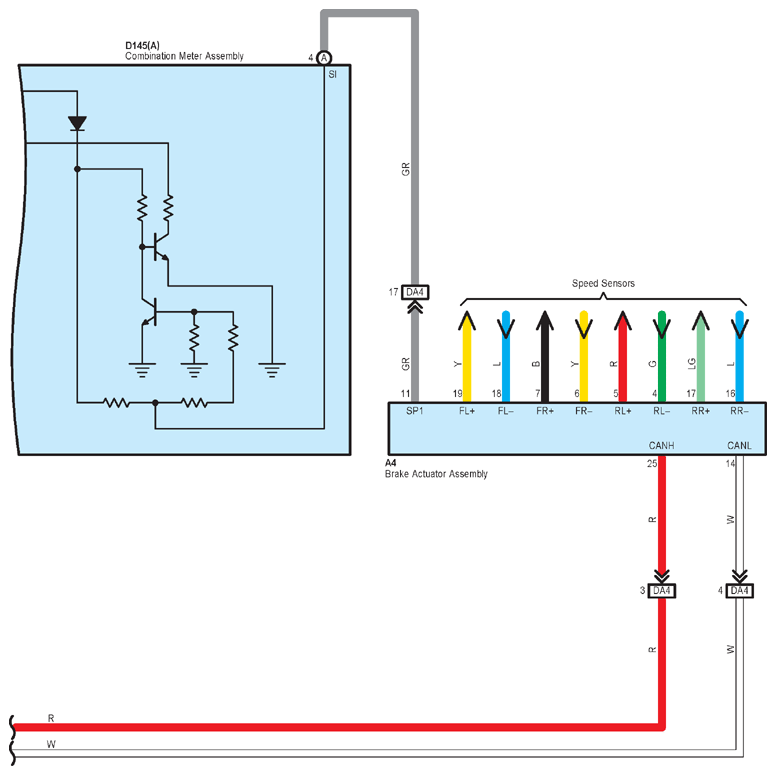

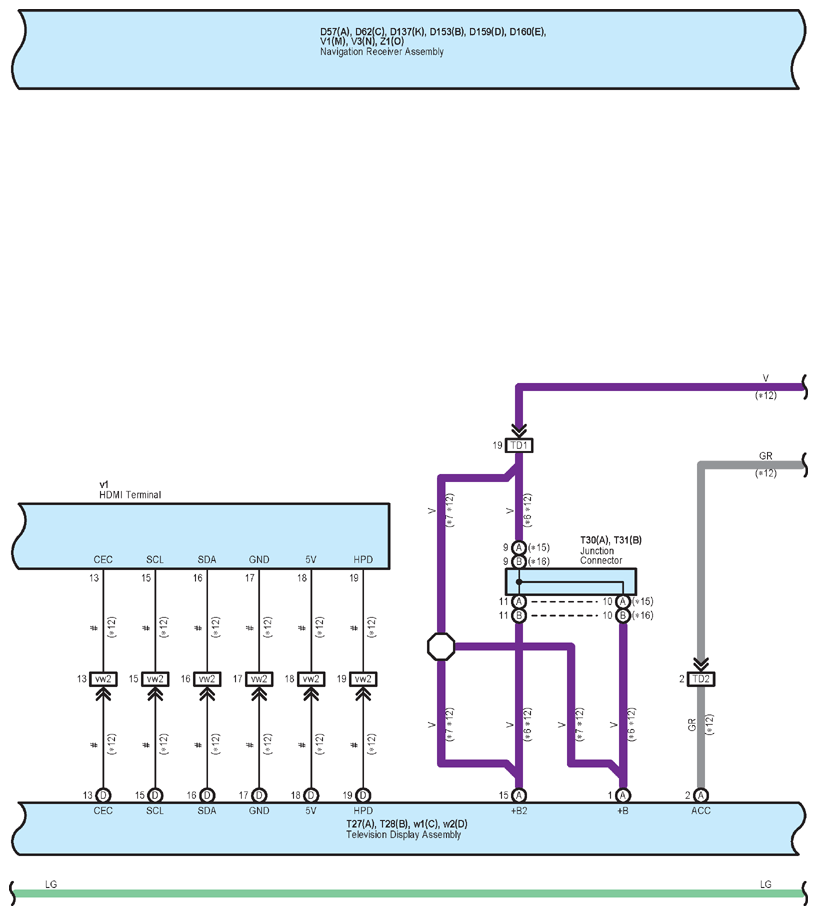

Fig 7: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (7 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

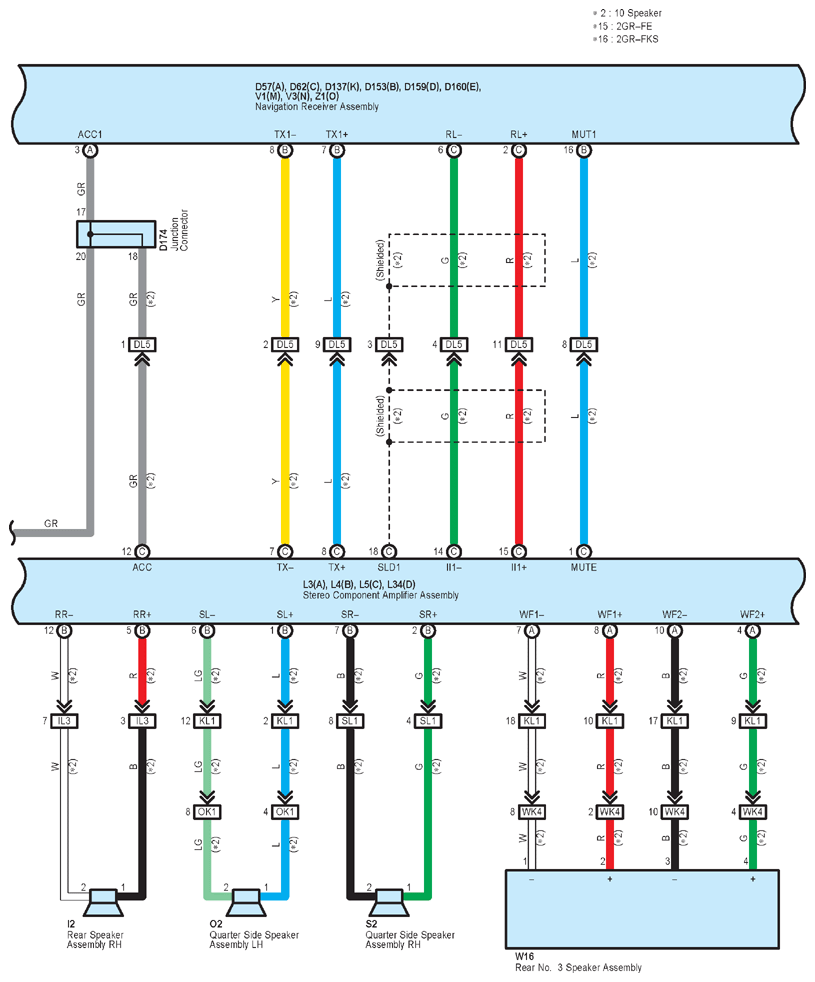

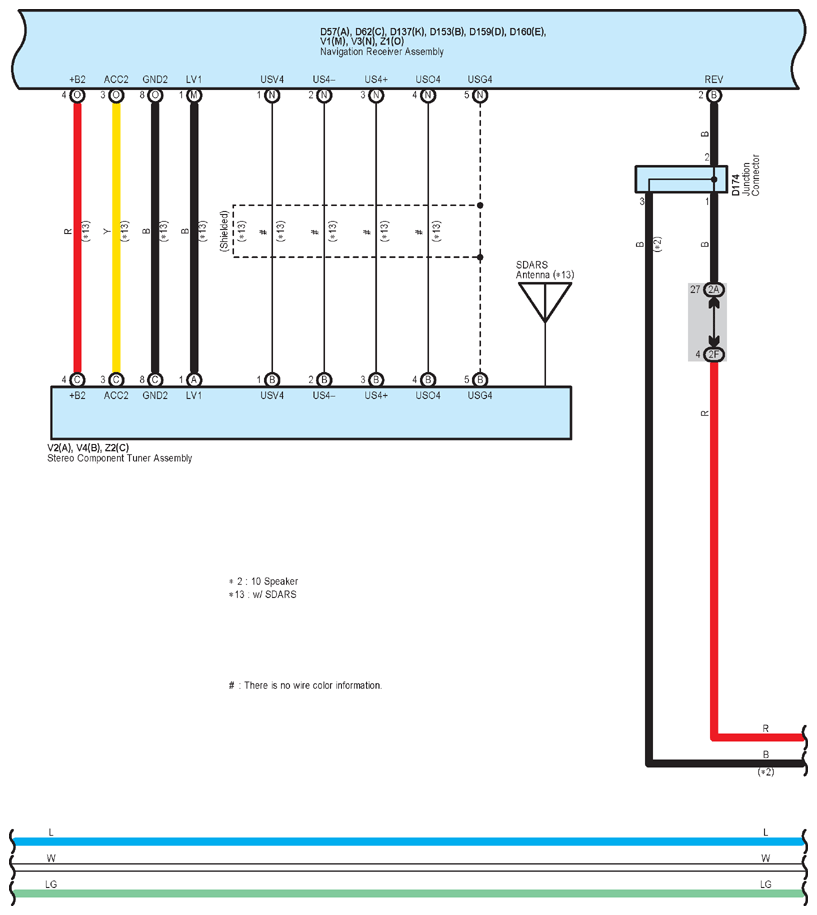

Fig 8: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (8 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (9 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (10 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (11 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (12 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (13 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (14 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (15 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (16 Of 23)

Fig 17: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (17 Of 23)

Fig 18: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (18 Of 23)

Fig 19: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (19 Of 23)

Fig 20: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (20 Of 23)

Fig 21: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (21 Of 23)

Fig 22: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (22 Of 23)

Fig 23: Audio System (W/Navigation System), Navigation System, Parking Assist (Rear View Monitor W/Navigation System) (23 Of 23)
