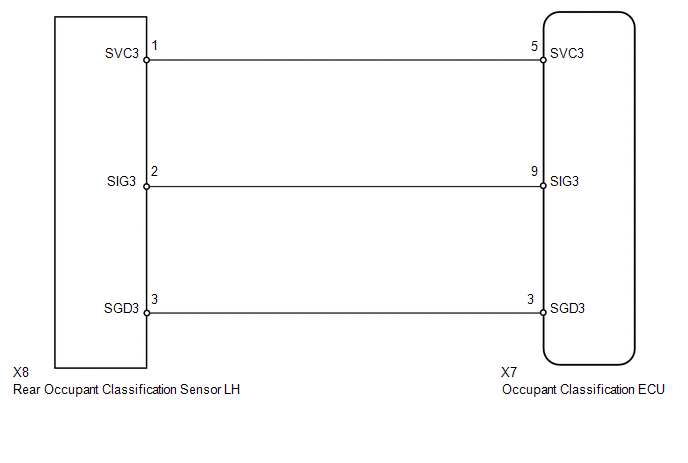

DTC B1787: Rear Occupant Classification Sensor LH Collision Detection [12/2015 - ]: Wiring Diagram

GTY728210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
