DTC B1794: Open in Occupant Classification ECU Battery Positive Line [12/2015 - ]: Procedure

1. Turn the ignition switch to ON, and wait for at least 60 seconds.
2. Clear any DTCs stored in the memory (Refer to DTC CHECK / CLEAR [12/2015 - ] ).

   HINT:

   • First clear DTCs stored in the occupant classification ECU and then in the center airbag sensor assembly.
   • Use the Techstream to clear the DTCs of the occupant classification ECU, otherwise the DTCs cannot be cleared.
3. Turn the ignition switch off.
4. Turn the ignition switch to ON, and wait for at least 60 seconds.
5. Using the Techstream, check for DTCs of the occupant classification ECU (Refer to DTC CHECK / CLEAR [12/2015 - ] ).

   OK

   DTC B1794 is not output.

   HINT:

   DTCs other than DTC B1794 may be output at this time, but they are not related to this check.

Result:

OK

USE SIMULATION METHOD TO CHECK

(Refer to DIAGNOSIS SYSTEM [12/2015 - ] )

Result:

NG

See step  2

1. Turn the ignition switch off.
2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Check that the connector are properly connected to the occupant classification ECU. Also check that the connectors that link the front seat wire RH and No. 2 floor wire are properly connected.

   OK

   Connectors are properly connected.

Result:

NG

CONNECT CONNECTORS PROPERLY

Result:

OK

See step  3

1. Check that the connectors (on the occupant classification ECU side, front seat wire RH side and No. 2 floor wire side) are not damaged.

   OK

   Connectors are not deformed or damaged.

Result:

NG

REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

1. Turn the ignition switch off.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Disconnect the front seat wire RH connector from the No. 2 floor wire.
4. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
5. Turn the ignition switch to ON, and wait for at least 60 seconds.
6. Measure the resistance and voltage according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   LX1-3 (GND) - Body ground	Always	Below 1 Ω

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   LX1-5 (+B) - Body ground	Ignition switch ON	11 to 14 V
   LX1-6 (IG) - Body ground

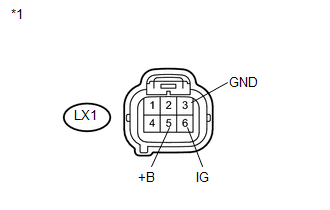

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Front Seat Wire RH)

Result:

NG

REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  5

1. Turn the ignition switch off.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Connect the front seat wire RH connector from the No. 2 floor wire.
4. Disconnect the X6 occupant classification ECU connector.
5. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
6. Turn the ignition switch to ON, and wait for at least 60 seconds.
7. Measure the resistance and voltage according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   X6-3 (GND) - Body ground	Always	Below 1 Ω

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   X6-1 (+B) - Body ground	Ignition switch ON	11 to 14 V
   X6-7 (IG) - Body ground

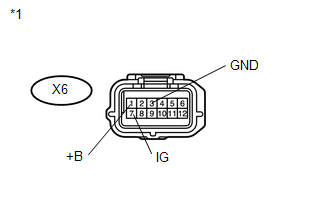

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Occupant Classification ECU)

Result:

NG

REPLACE FRONT SEAT WIRE RH

Result:

OK

See step  6

1. Turn the ignition switch off.
2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Connect the connectors to the occupant classification ECU.
4. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
5. Turn the ignition switch to ON, and wait for at least 60 seconds.
6. Clear any DTCs stored in the memory (Refer to DTC CHECK / CLEAR [12/2015 - ] ).

   HINT:

   • First clear DTCs stored in the occupant classification ECU and then in the center airbag sensor assembly.
   • Use the Techstream to clear the DTCs of the occupant classification ECU, otherwise the DTCs cannot be cleared.
7. Turn the ignition switch off.
8. Turn the ignition switch to ON, and wait for at least 60 seconds.
9. Using the Techstream, check for DTCs of the occupant classification ECU (Refer to DTC CHECK / CLEAR [12/2015 - ] ).

   OK

   DTC B1794 is not output.

   HINT:

   DTCs other than DTC B1794 may be output at this time, but they are not related to this check.

Result:

OK

USE SIMULATION METHOD TO CHECK

(Refer to DIAGNOSIS SYSTEM [12/2015 - ] )

Result:

NG

See step  7

1. Turn the ignition switch off.
2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Replace the occupant classification ECU (Refer to REMOVAL [12/2015 - ] ).

   HINT:

   Perform the inspection using parts from a normal vehicle when possible.

Result:

NEXT

See step  8

1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
2. Connect the Techstream to the DLC3.
3. Turn the ignition switch to ON, and wait for at least 60 seconds.
4. Using the Techstream, perform the zero point calibration (Refer to INITIALIZATION [12/2015 - ] ).

Result:

NEXT

See step  9

1. Using the Techstream, perform the sensitivity check (Refer to INITIALIZATION [12/2015 - ] ).

   Standard range

   27 to 33 kg (59.5 to 72.8 lb)

Result:

NEXT

END
