Power Source Circuit [12/2015 - 11/2017]: Procedure
- CHECK HARNESS AND CONNECTOR (GND CIRCUIT)
- Disconnect the D84 seat belt control ECU connectors.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

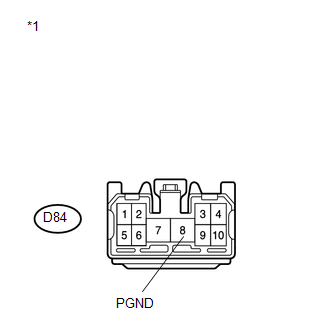

Tester Connection Condition Specified Condition D84-8 (PGND) - Body ground Always Below 1 Ω TEXT IN ILLUSTRATION*1 Front view of wire harness connector
(to Seat Belt Control ECU) - Reconnect the seat belt control ECU connector.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (GND CIRCUIT)
Result:
OK
See step 2
- Disconnect the D84 seat belt control ECU connectors.
- CHECK HARNESS AND CONNECTOR (IG1 CIRCUIT)
- Disconnect the D83 and D84 seat belt control ECU connectors.
- Turn the ignition switch to ON.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage

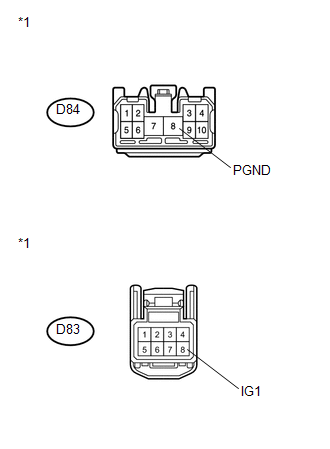

Tester Connection Switch Condition Specified Condition D83-8 (IG1) - D84-8 (PGND) Ignition switch ON 11 to 14 V TEXT IN ILLUSTRATION*1 Front view of wire harness connector
(to Seat Belt Control ECU) - Reconnect the seat belt control ECU connector.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (IG1 CIRCUIT)
Result:
OK
See step 3
- Disconnect the D83 and D84 seat belt control ECU connectors.
- CHECK HARNESS AND CONNECTOR (+B CIRCUIT)
- Disconnect the D84 seat belt control ECU connectors.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage

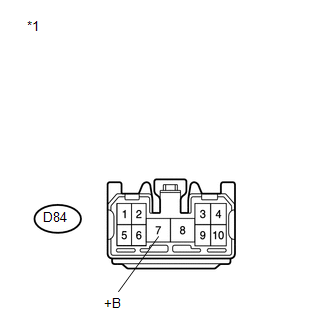

Tester Connection Condition Specified Condition D84-7 (+B) - Body ground Always 11 to 14 V TEXT IN ILLUSTRATION*1 Front view of wire harness connector
(to Seat Belt Control ECU) - Reconnect the seat belt control ECU connector.
Result:
OK
REPLACE SEAT BELT CONTROL ECU
(Refer to REMOVAL [12/2015 - 11/2017] )
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (+B CIRCUIT)
- Disconnect the D84 seat belt control ECU connectors.
