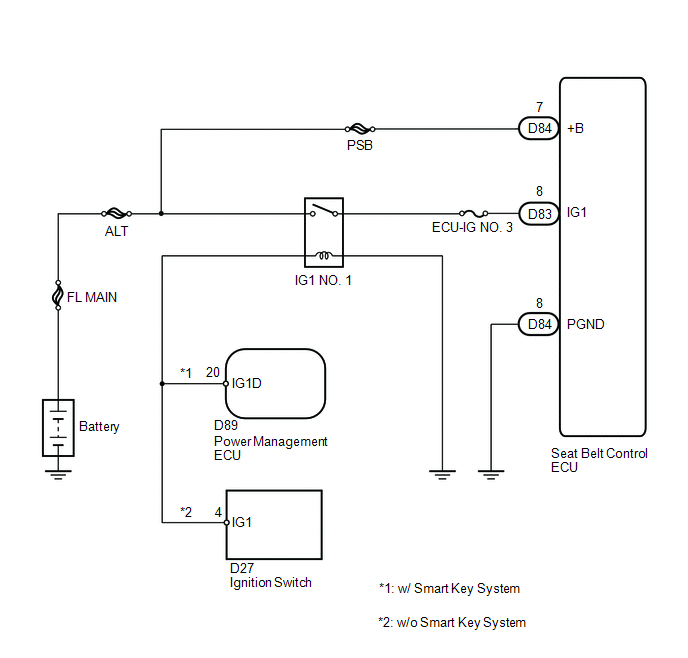

Power Source Circuit [12/2015 - 11/2017]: Wiring Diagram

GTY718429

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
