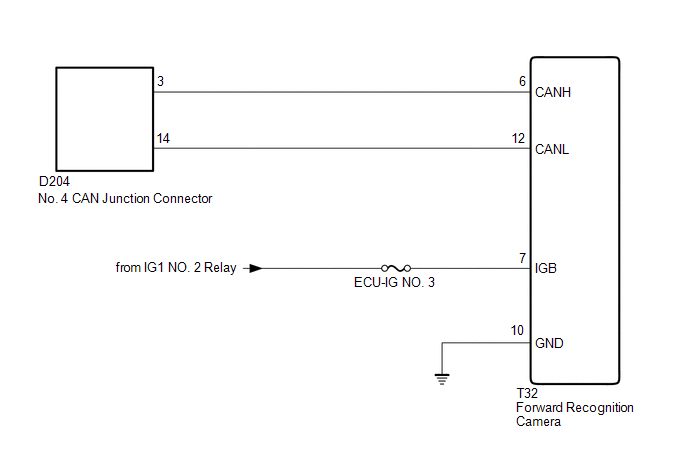

DTC U023A: Lost Communication with Front Camera Module [11/2017 - ]: Wiring Diagram

GTY741843

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
