Disassembly [12/2015 - ]: Procedure
- REMOVE STEERING LOCK ACTUATOR ASSEMBLY (w/ Smart Key System)
- Secure the steering column assembly in a vise.
- Using a center punch, mark the center of the tapered-head bolt.
- Using a 3 to 4 mm (0.118 to 0.157 in.) diameter drill bit, drill a hole in the tapered-head bolt.

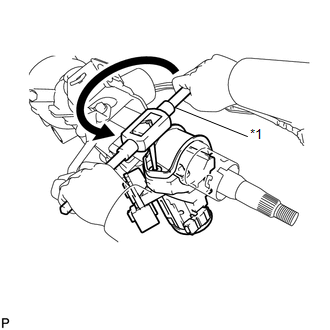

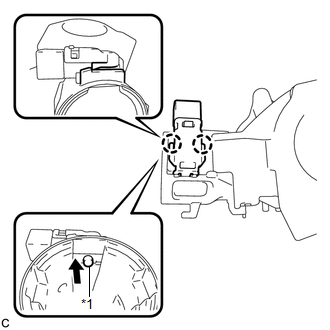

- Using a screw extractor, remove the tapered-head bolt, and then remove the steering lock actuator assembly from the steering column assembly.TEXT IN ILLUSTRATION
*1 Screw Extractor
- REMOVE STEERING COLUMN UPPER WITH SWITCH BRACKET ASSEMBLY (w/o Smart Key System)
- Secure the steering column assembly in a vise.
- Using a center punch, mark the center of the tapered-head bolt.
- Using a 3 to 4 mm (0.118 to 0.157 in.) diameter drill bit, drill a hole in the tapered-head bolt.

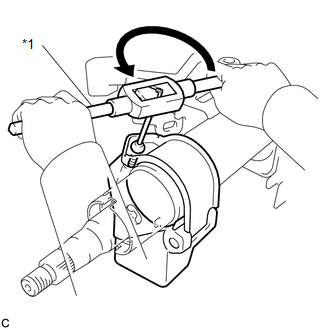

- Using a screw extractor, remove the tapered-head bolt, and then remove the steering column upper with switch bracket assembly from the steering column assembly.TEXT IN ILLUSTRATION
*1 Screw Extractor
- REMOVE IGNITION OR STARTER SWITCH ASSEMBLY (w/o Smart Key System)
- REMOVE KEY INTERLOCK SOLENOID (w/o Smart Key System)
- REMOVE SOLENOID WIRE (w/o Smart Key System)
- REMOVE IGNITION SWITCH LOCK CYLINDER ASSEMBLY (w/o Smart Key System)
- Turn the ignition switch lock cylinder assembly to the ACC position.

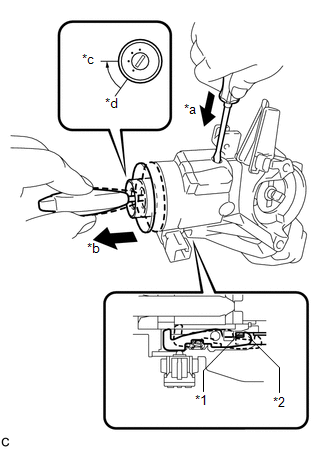

- Insert a screwdriver into the hole of the steering column upper with switch bracket assembly as shown in the illustration. Pull the ignition switch lock cylinder assembly until its claw contacts the stopper of the steering column upper with switch bracket assembly.TEXT IN ILLUSTRATION
*1 Stopper *2 Claw *a Push *b Pull *c ACC *d LOCK NOTE:Make sure to pull the ignition switch lock cylinder assembly until its claw contacts the stopper of the steering column upper with switch bracket assembly. Failure to do so will affect later work operations.

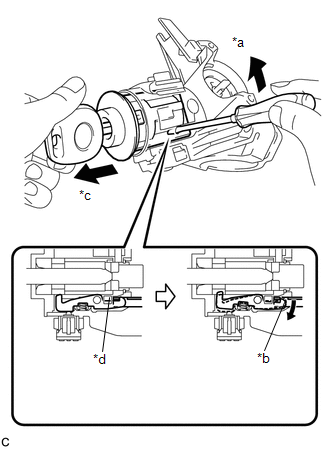

- Insert a screwdriver into the hole of the steering column upper with switch bracket assembly. Tilt the screwdriver as shown in the illustration to disengage the claw of the ignition switch lock cylinder assembly, and pull out the ignition switch lock cylinder assembly.TEXT IN ILLUSTRATION
*a Tilt *b Claw is Disengaged *c Pull Out *d Screwdriver Insertion Hole
- REMOVE UNLOCK WARNING SWITCH ASSEMBLY (w/o Smart Key System)
