Components [12/2015 - ]

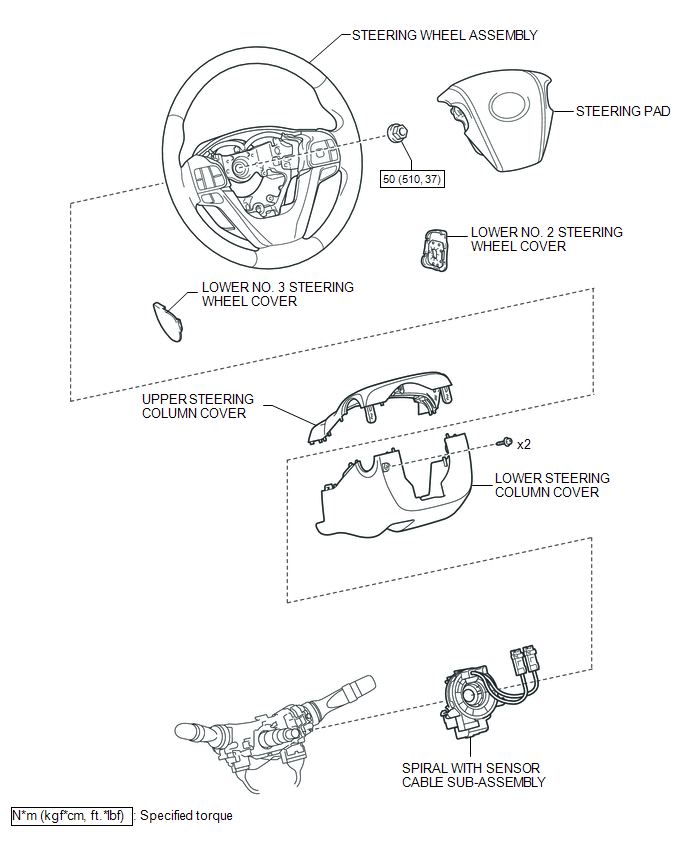

Fig 1: Steering Angle Sensor Replacement Components With Torque Specifications
GTY705688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
