Audio System (W/O Navigation System), Parking Assist (Rear View Monitor W/O Navigation System): Connectors

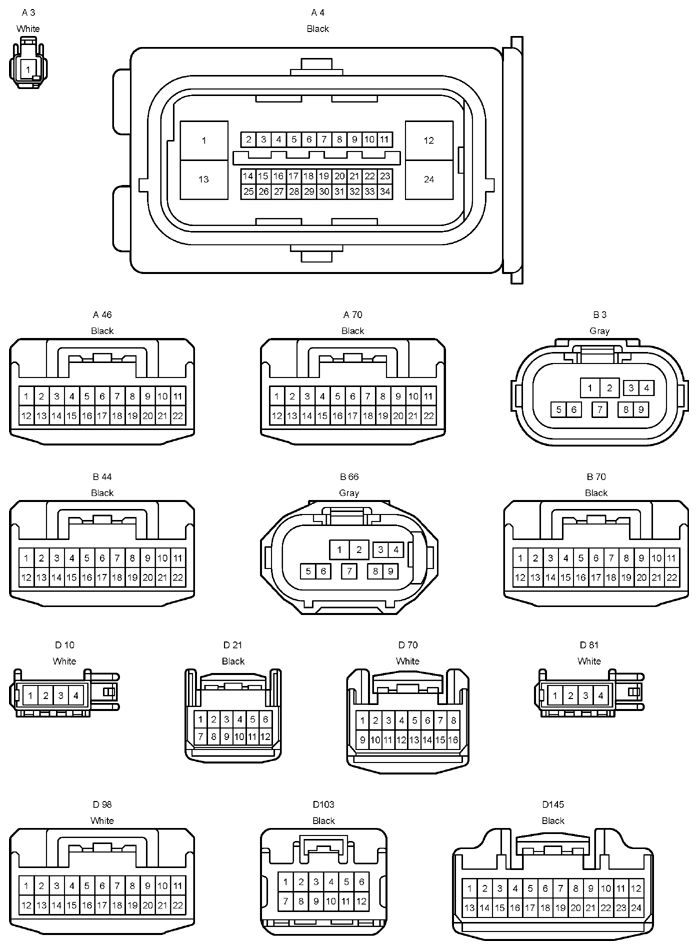

Fig 1: Connectors (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Connectors (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Connectors (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Connectors (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Connectors (5 Of 7)

Fig 6: Connectors (6 Of 7)

Fig 7: Connectors (7 Of 7)
