System Diagrams

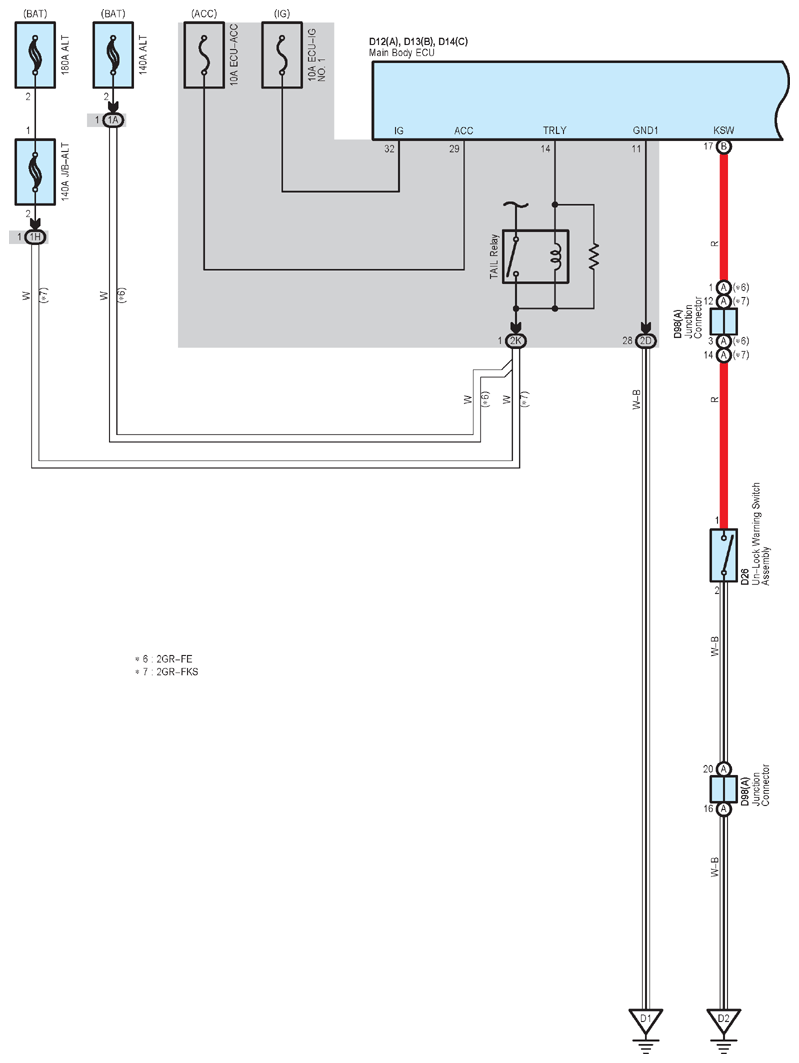

Fig 1: Wireless Door Lock Control (W/O Smart Key System) (1 Of 9)
G12221894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

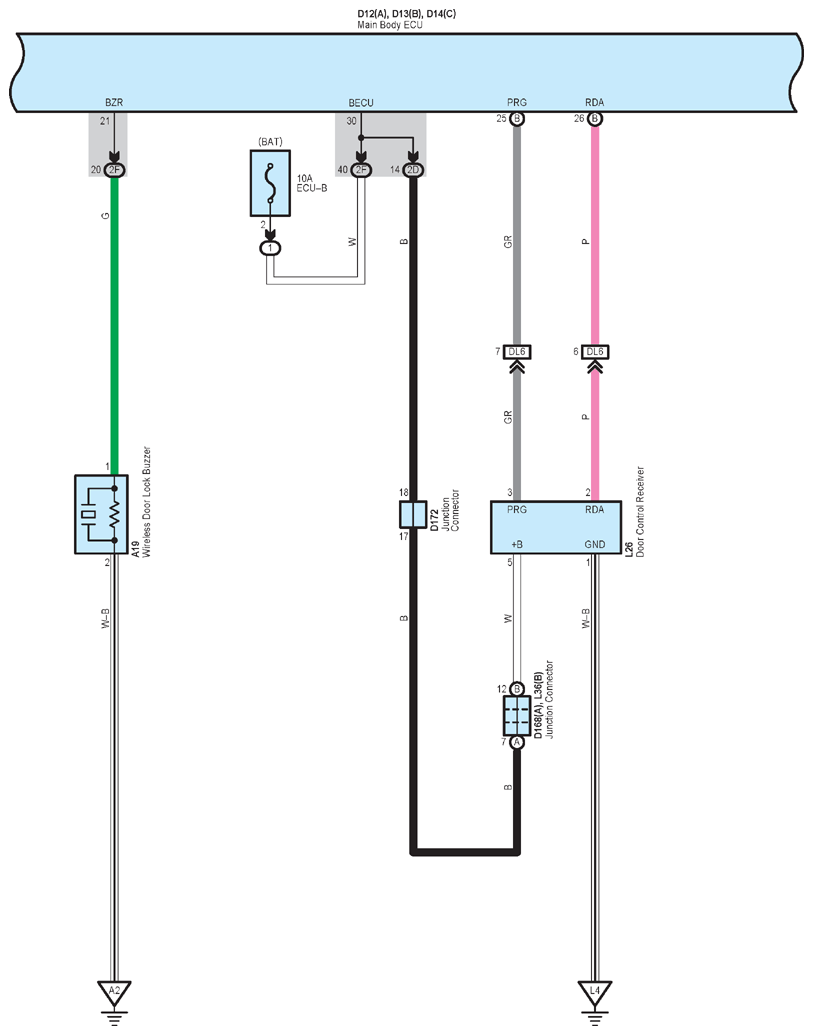

Fig 2: Wireless Door Lock Control (W/O Smart Key System) (2 Of 9)
G12221895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

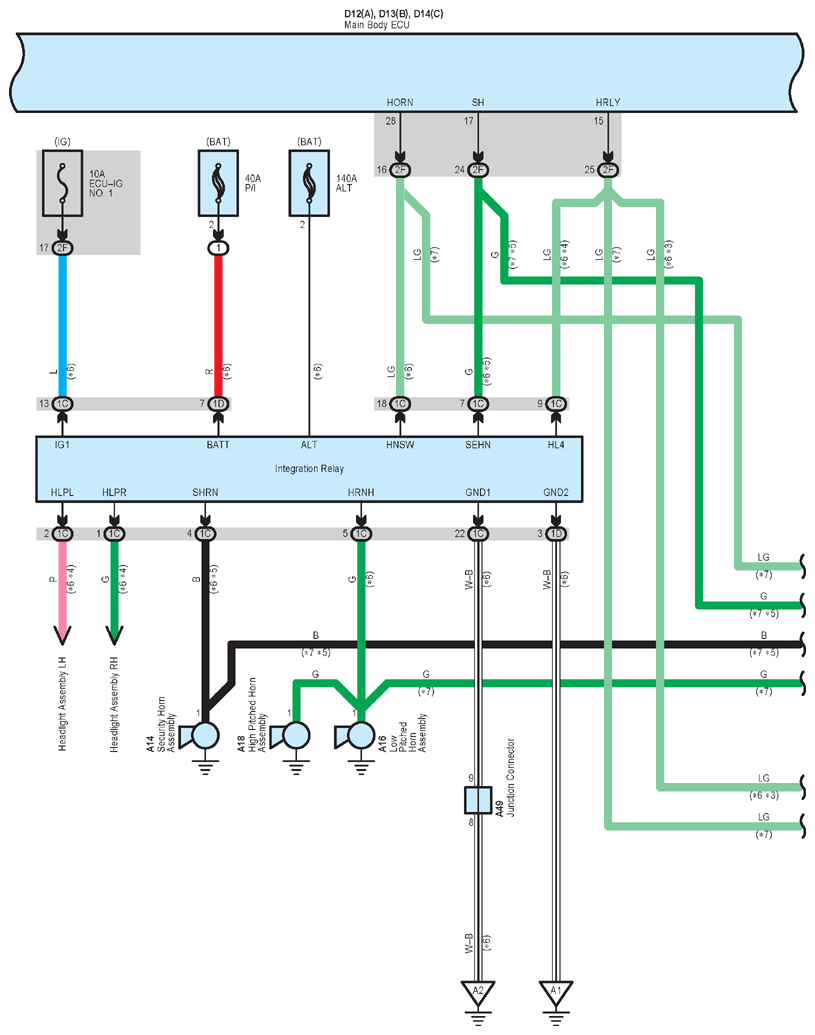

Fig 3: Wireless Door Lock Control (W/O Smart Key System) (3 Of 9)
G12221896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

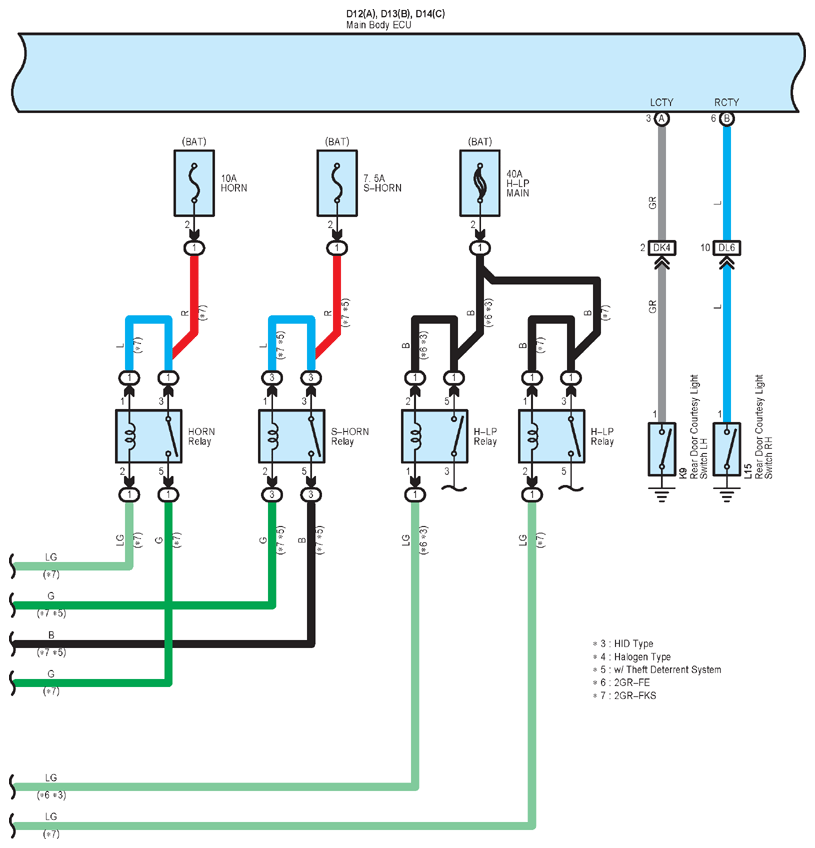

Fig 4: Wireless Door Lock Control (W/O Smart Key System) (4 Of 9)
G12221897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

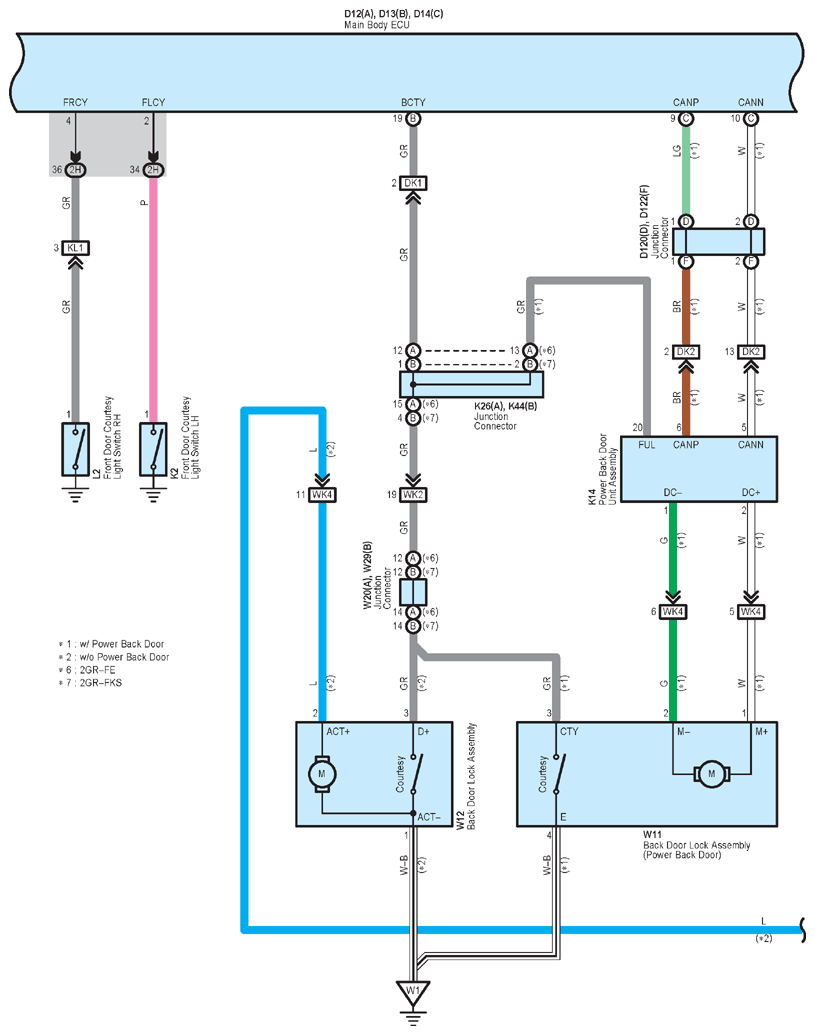

Fig 5: Wireless Door Lock Control (W/O Smart Key System) (5 Of 9)
G12221898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

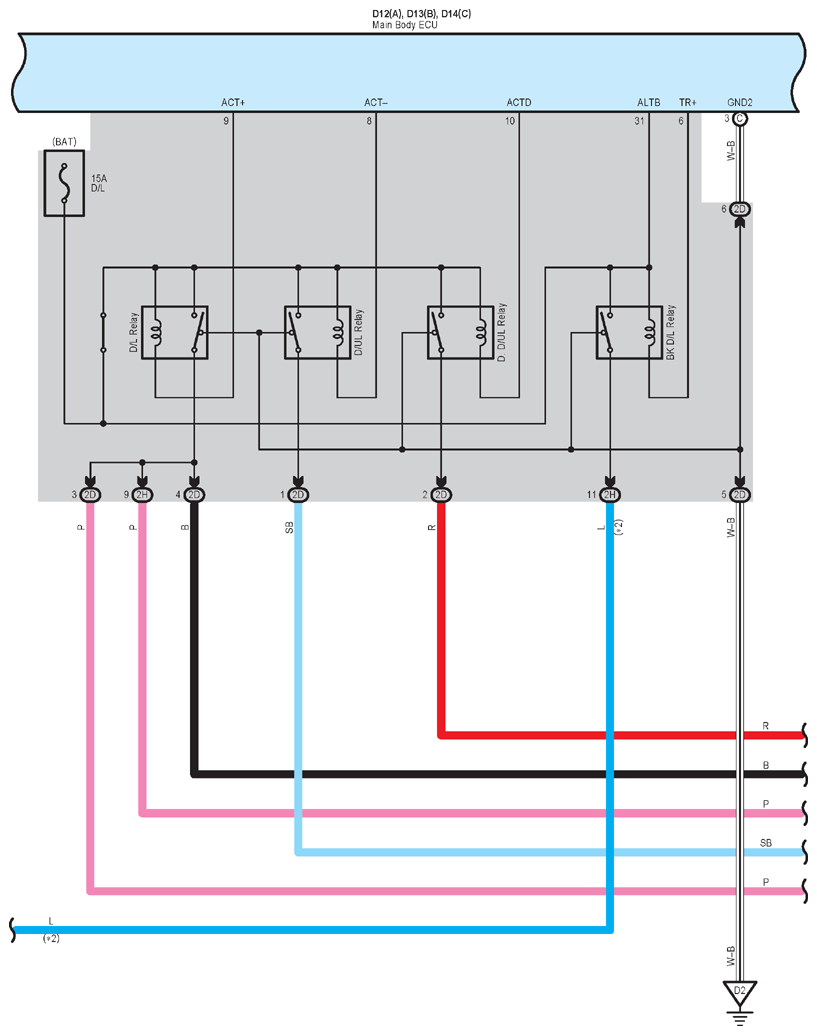

Fig 6: Wireless Door Lock Control (W/O Smart Key System) (6 Of 9)
G12221899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

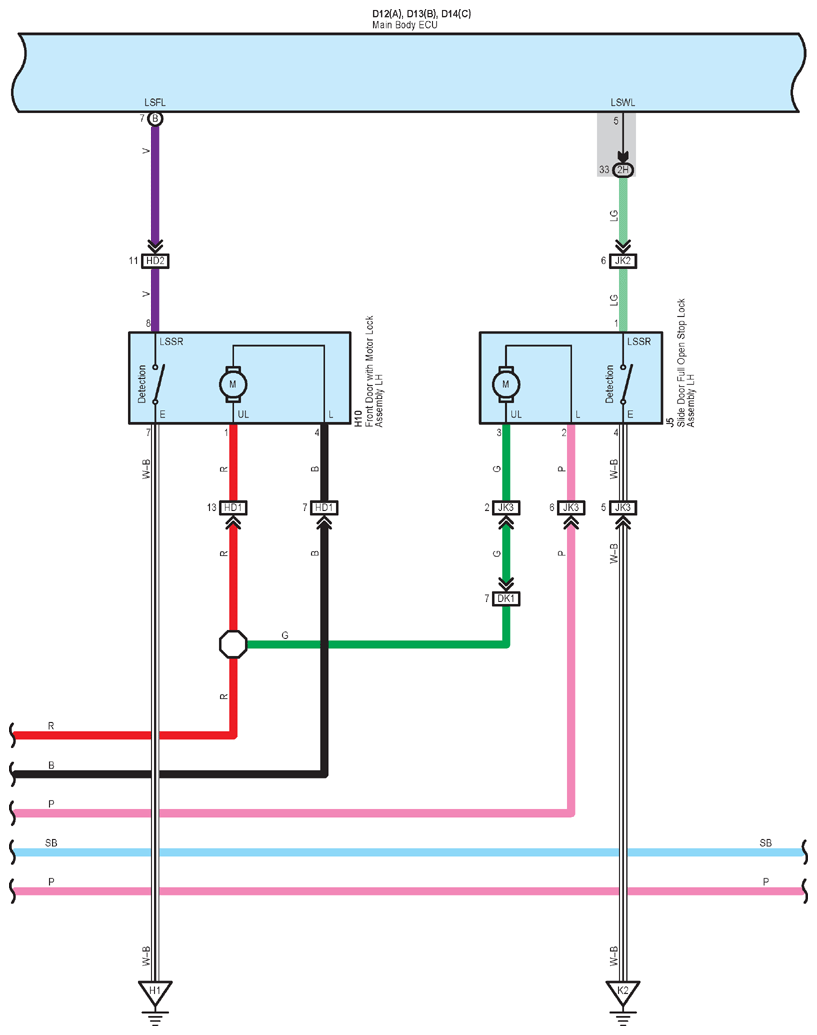

Fig 7: Wireless Door Lock Control (W/O Smart Key System) (7 Of 9)
G12221900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

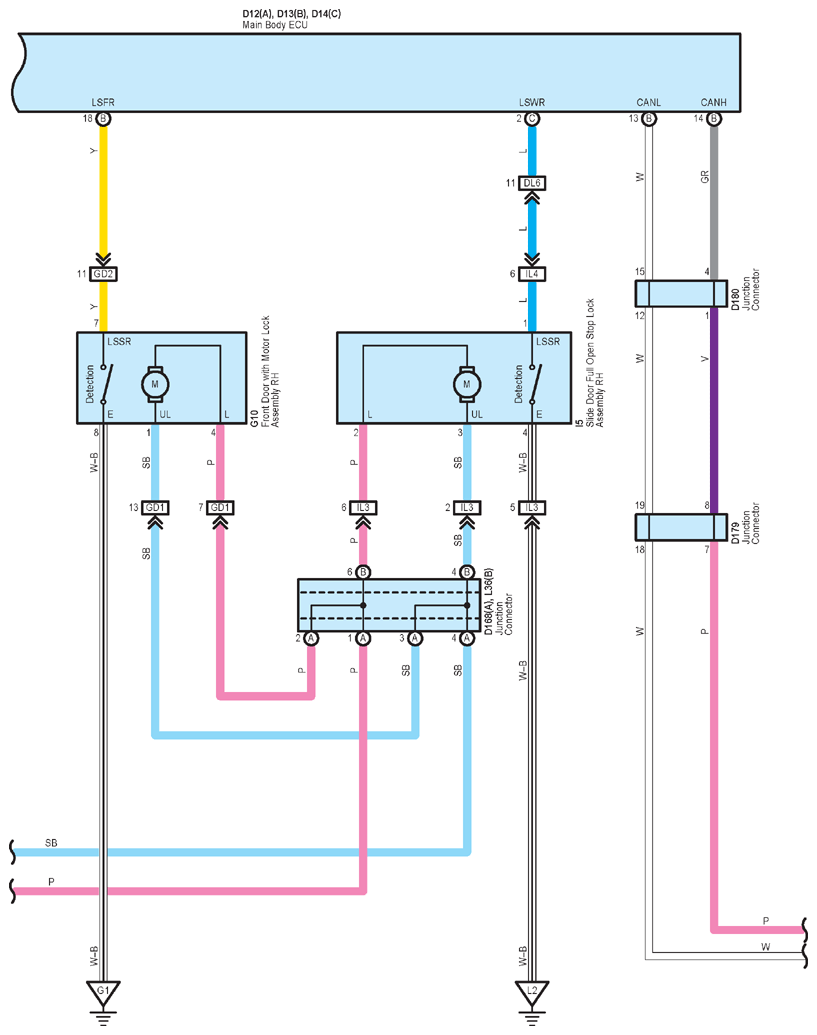

Fig 8: Wireless Door Lock Control (W/O Smart Key System) (8 Of 9)
G12221901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

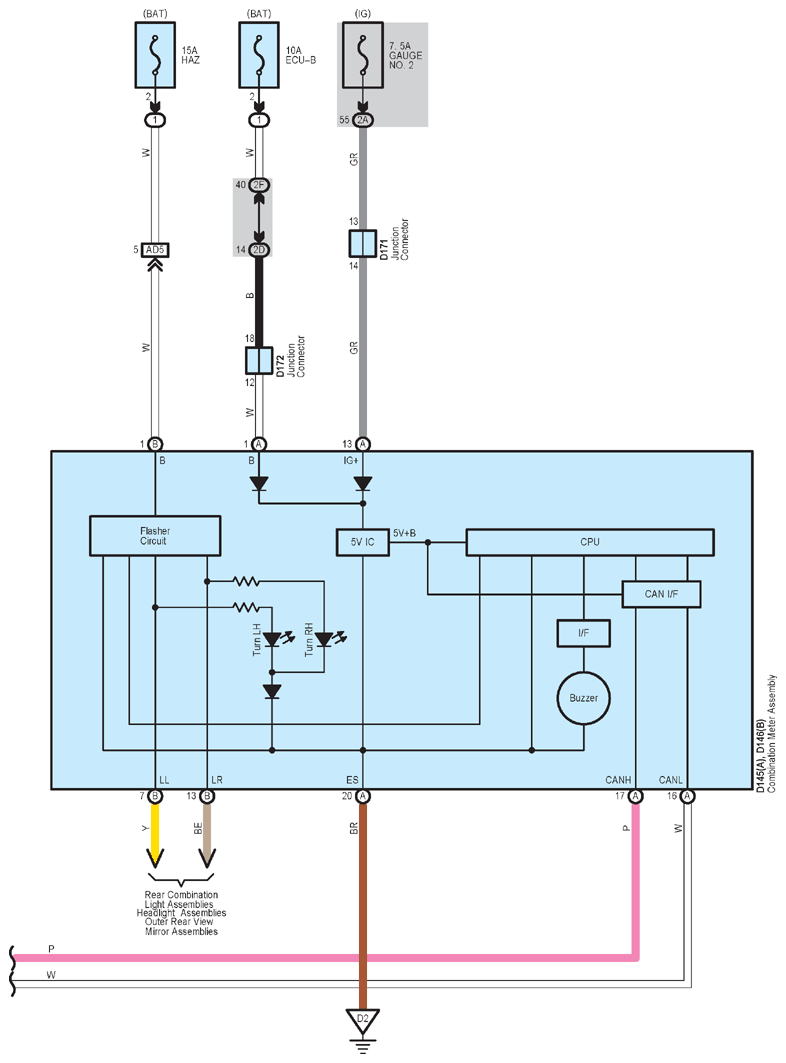

Fig 9: Wireless Door Lock Control (W/O Smart Key System) (9 Of 9)
G12221902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
