Components [08/2016 - ]

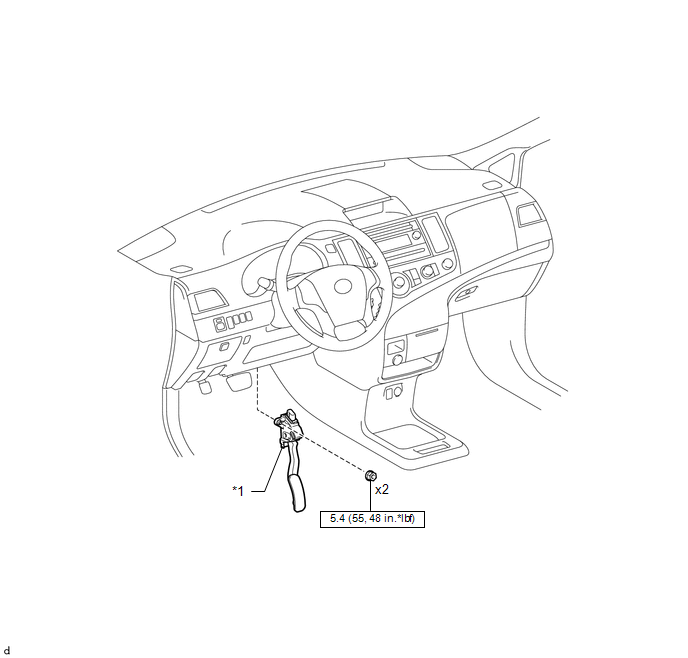

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
GTY686822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ACCELERATOR PEDAL SENSOR ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
