Installation [08/2016 - ]: Procedure

1. Install the front engine mounting insulator assembly with the 3 nuts.

   Torque: 58 N*m (591 kgf*cm, 43 ft.*lbf)

2. Install the hole plug.

See step  1

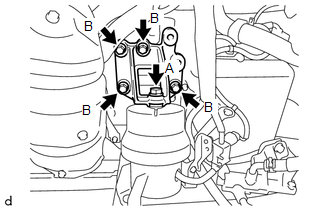

1. Install the front engine mounting bracket to the automatic transaxle assembly and front engine mounting insulator assembly with the 5 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   BOLT A

   Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)

   BOLT B

   Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

   Bolt Length

   Item	Length
   Bolt A	47 mm (1.85 in.)
   Bolt B	32 mm (1.26 in.)

2. Install the vacuum surge tank to the front engine mounting bracket with the 2 bolts.

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

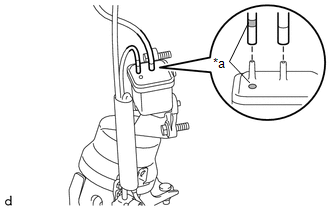

3. Connect the 2 vacuum hoses to the vacuum surge tank.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	White paint

   HINT:

   Align the white identification markings of the vacuum surge tank and vacuum hose.

Refer to INSTALLATION [08/2016 - 11/2017] , or refer to INSTALLATION [11/2017 - ]
