Removal [08/2016 - ]: Procedure

  1. REMOVE RADIATOR ASSEMBLY AND FAN ASSEMBLY WITH MOTOR

    Refer to REMOVAL [08/2016 - 11/2017] , or refer to REMOVAL [11/2017 - ]

  2. REMOVE FRONT ENGINE MOUNTING BRACKET

    HINT:

    Securely support the automatic transaxle using a jack.

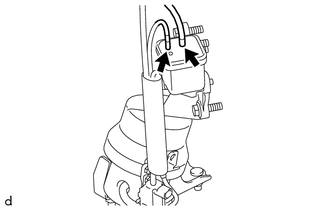

    1. Disconnect the 2 vacuum hoses from the vacuum surge tank.
      GTY738907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

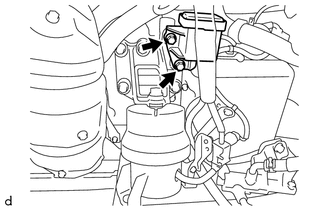

    2. Remove the 2 bolts and vacuum surge tank from the front engine mounting bracket.
      GTY722812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

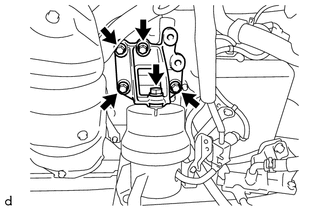

    3. Remove the 5 bolts and front engine mounting bracket from the automatic transaxle assembly and front engine mounting insulator assembly.
      GTY722811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE DUTY VACUUM SWITCHING VALVE

    See step  2

  4. REMOVE FRONT ENGINE MOUNTING INSULATOR ASSEMBLY

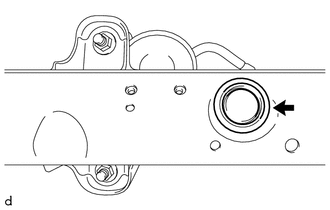

    1. Remove the hole plug.
      GTY722772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

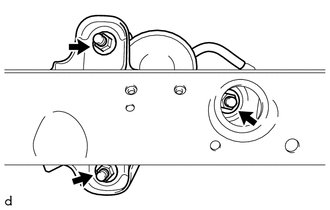

    2. Remove the 3 nuts and front engine mounting insulator assembly.
      GTY722771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
