Components [08/2016 - ]

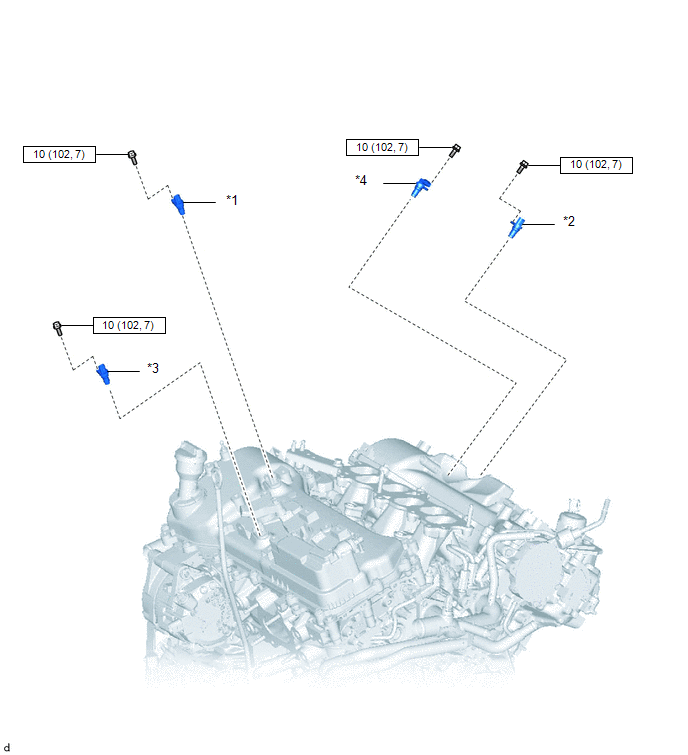

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications
GTY722051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 VVT SENSOR (for Intake Side of Bank 2) *2 VVT SENSOR (for Exhaust Side of Bank 1)
*3 VVT SENSOR (for Exhaust Side of Bank 2) *4 VVT SENSOR (for Intake Side of Bank 1)
N*m (kgf*cm, ft.*lbf): Specified torque - -
