Removal [08/2016 - ]: Procedure

Refer to REMOVAL [08/2016 - ]

1. w/ Oil Cooler:

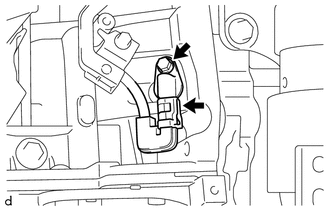

   1. Remove the nut and hose clamp from the crankshaft position sensor protector.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

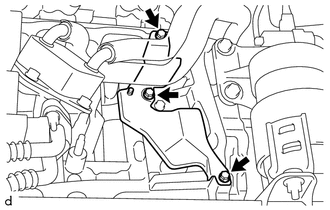

2. Remove the 3 bolts and crankshaft position sensor protector from the cylinder block sub-assembly and oil pan sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the crankshaft position sensor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

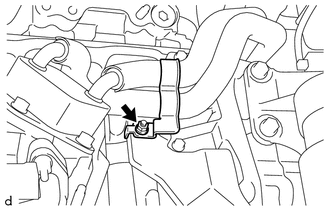

2. Remove the bolt and crankshaft position sensor from the cylinder block sub-assembly.
   NOTE:

   If the crankshaft position sensor has been struck or dropped, replace it.
