Installation [08/2016 - ]: Procedure
- INSTALL ECM BRACKET
- Install the ECM bracket to the ECM with the 2 bolts.
Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)
- Install the ECM bracket to the ECM with the 2 bolts.
- INSTALL ECM

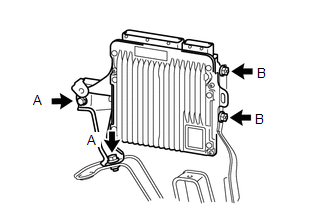

- Install the ECM to the vehicle with the 4 bolts.NOTE:
If the ECM has been struck or dropped, replace it.
Bolt A
Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)
Bolt B
Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)

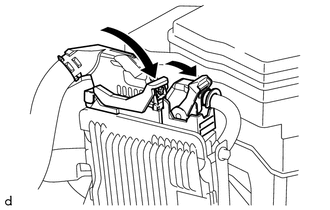

- Connect the 2 ECM connectors and lower the 2 levers.NOTE:
- When connecting the ECM connectors, make sure that the connecting parts of the ECM connectors are free of dirt, water or other foreign matter.
- Be sure to securely connect the ECM connectors.
- Install the ECM to the vehicle with the 4 bolts.
- INSTALL AIR CLEANER CASE SUB-ASSEMBLY
Refer to PROCEDURE - Step 64
- INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
Refer to PROCEDURE - Step 65
- INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE
See step 3
- INSTALL AIR CLEANER INLET ASSEMBLY
Refer to PROCEDURE - Step 67
- INSTALL COWL PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 11
- INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
Refer to INSTALLATION [12/2015 - ]
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [08/2016 - 11/2017] , or refer to INITIALIZATION [11/2017 - ]
- PERFORM INITIALIZATION
Refer to PRECAUTION [08/2016 - ]
