Components [08/2016 - ]

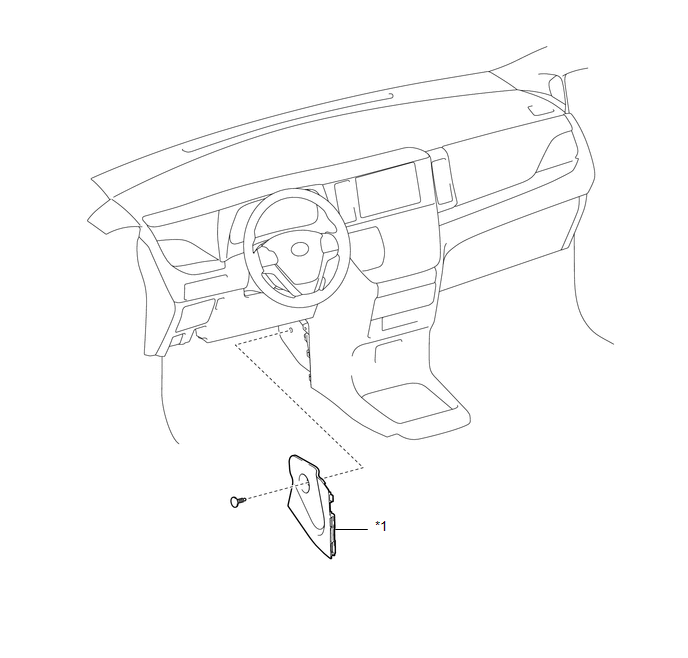

Fig 1: Heated Oxygen Sensor Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL FINISH PANEL END LH

Fig 2: Heated Oxygen Sensor Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for AWD	-	-
*1	NO. 1 ENGINE UNDER COVER	*2	NO. 2 ENGINE UNDER COVER
*3	FRONT WHEEL OPENING EXTENSION PAD LH	*4	FRONT WHEEL OPENING EXTENSION PAD RH
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

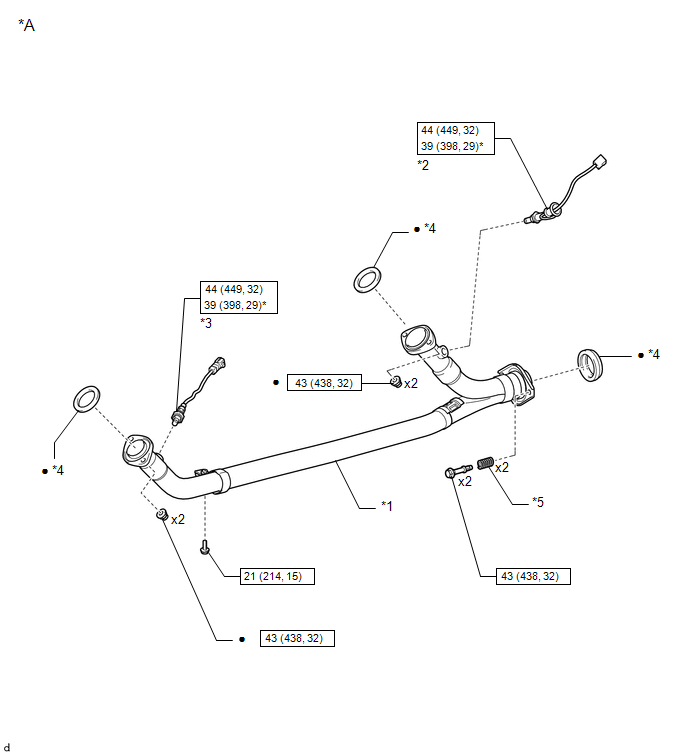

Fig 3: Heated Oxygen Sensor Replacement Components With Torque Specifications (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 2WD	-	-
*1	FRONT EXHAUST PIPE ASSEMBLY	*2	HEATED OXYGEN SENSOR (for Bank 1)
*3	HEATED OXYGEN SENSOR (for Bank 2)	*4	GASKET
*5	COMPRESSION SPRING	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	*	For use with SST
•	Non-reusable part	-	-

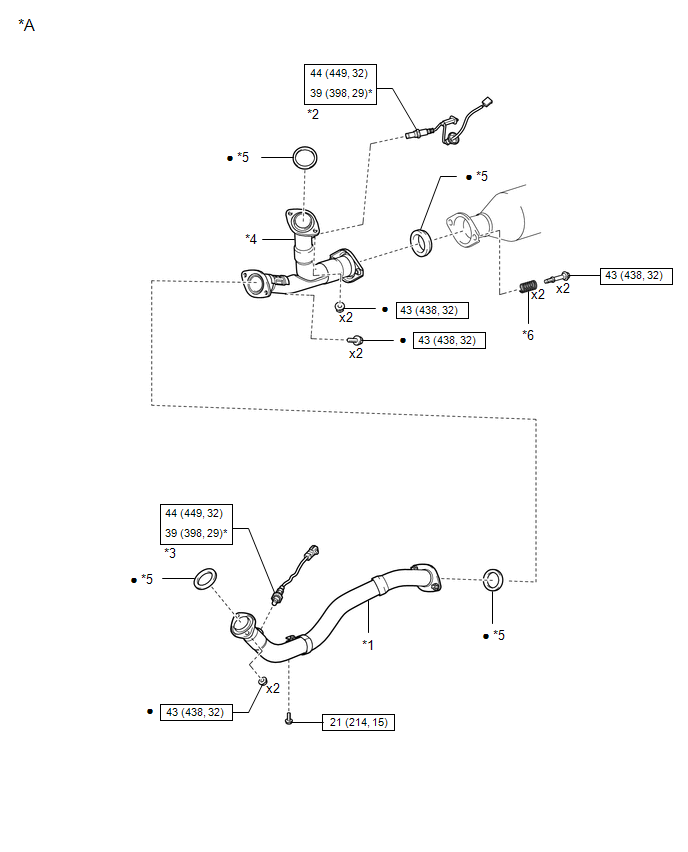

Fig 4: Heated Oxygen Sensor Replacement Components With Torque Specifications (4 Of 4)

Callout	Description	Callout	Description
*A	for AWD	-	-
*1	FRONT EXHAUST PIPE ASSEMBLY	*2	HEATED OXYGEN SENSOR (for Bank 1)
*3	HEATED OXYGEN SENSOR (for Bank 2)	*4	FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY
*5	GASKET	*6	COMPRESSION SPRING
	Nm (kgfcm, ft.*lbf): Specified torque	*	For use with SST
•	Non-reusable part	-	-
