System Diagram [12/2015 - 08/2016]

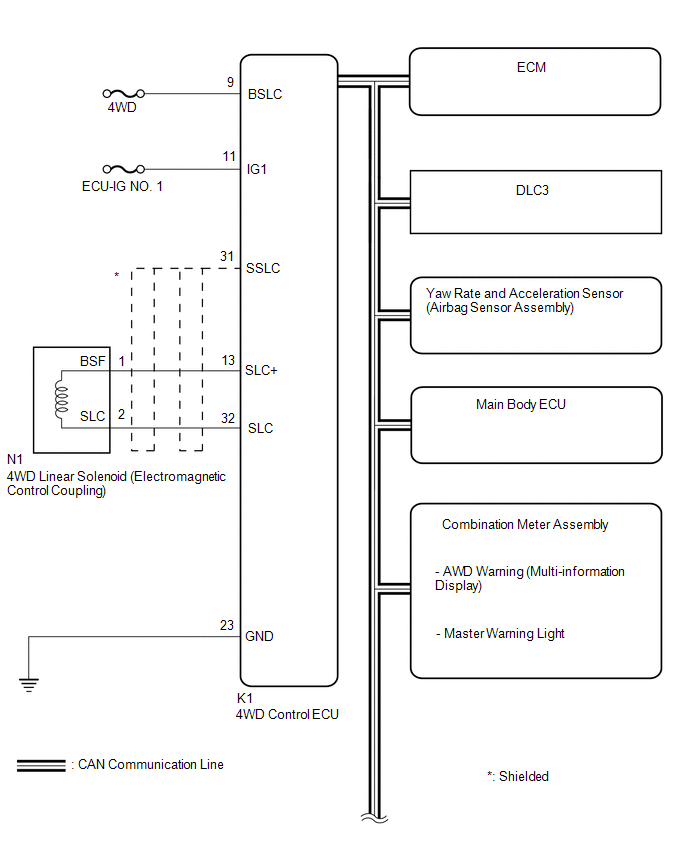

Fig 1: Active Torque Control 4WD System Circuit Diagram (1 Of 2)
GTY738024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

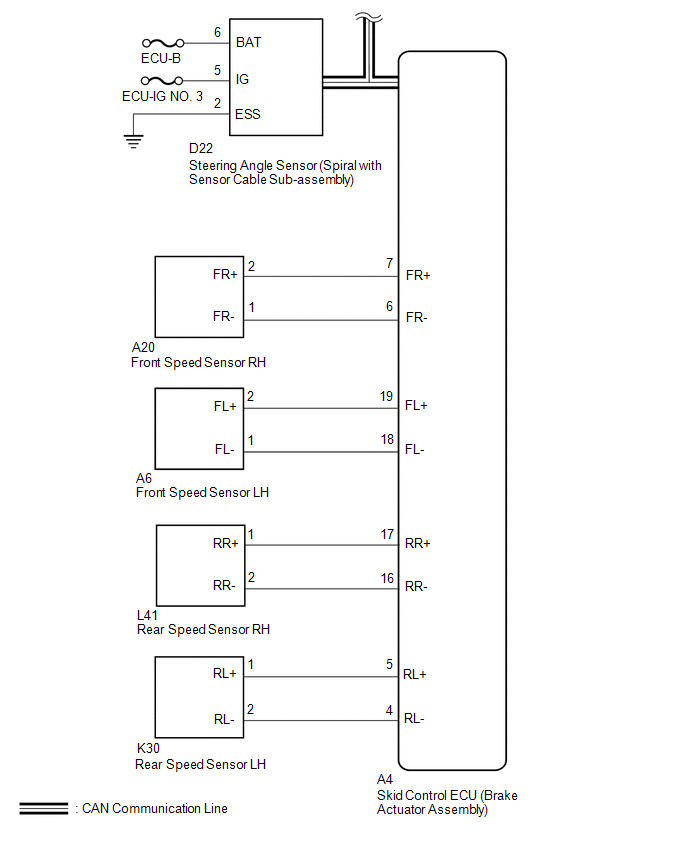

Fig 2: Active Torque Control 4WD System Circuit Diagram (2 Of 2)
GTY722352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
