Components [08/2016 - ]

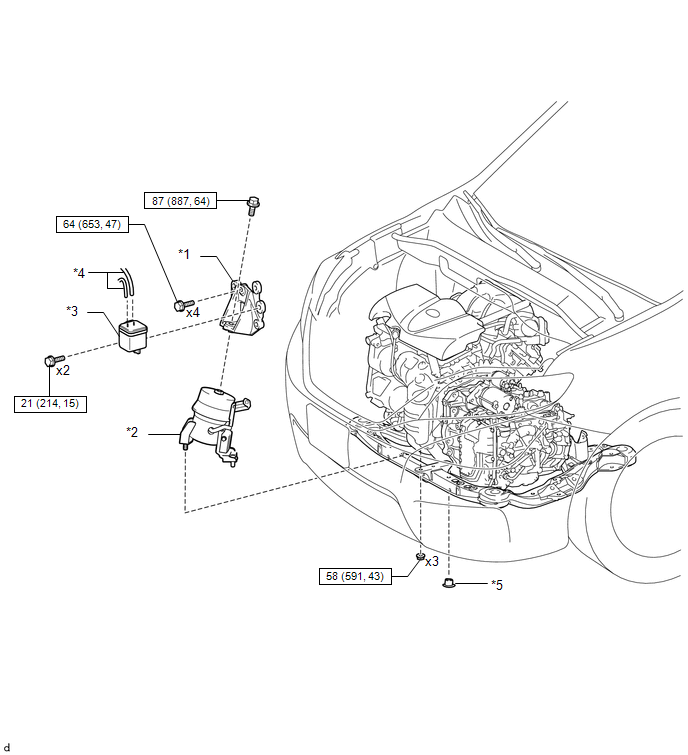

Fig 1: Active Control Engine Mount Replacement Components With Torque Specifications
GTY696769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT ENGINE MOUNTING BRACKET *2 FRONT ENGINE MOUNTING INSULATOR ASSEMBLY
*3 VACUUM SURGE TANK *4 VACUUM HOSE
*5 HOLE PLUG - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
