System Diagrams

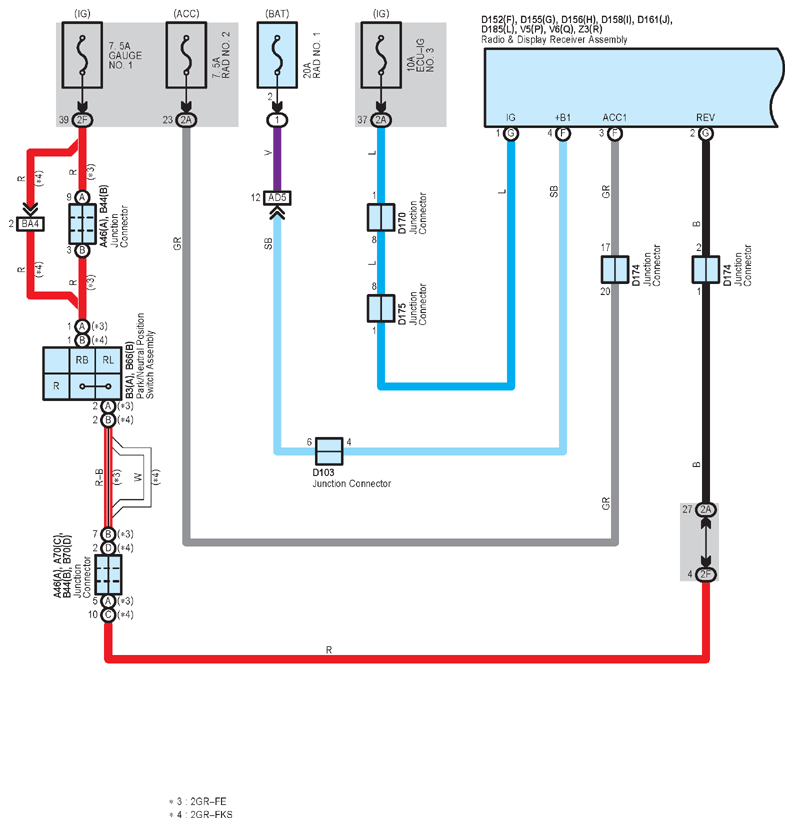

Fig 1: Audio System (W/O Navigation System), Parking Assist (Rear View Monitor W/O Navigation System) (1 Of 17)
G12221259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

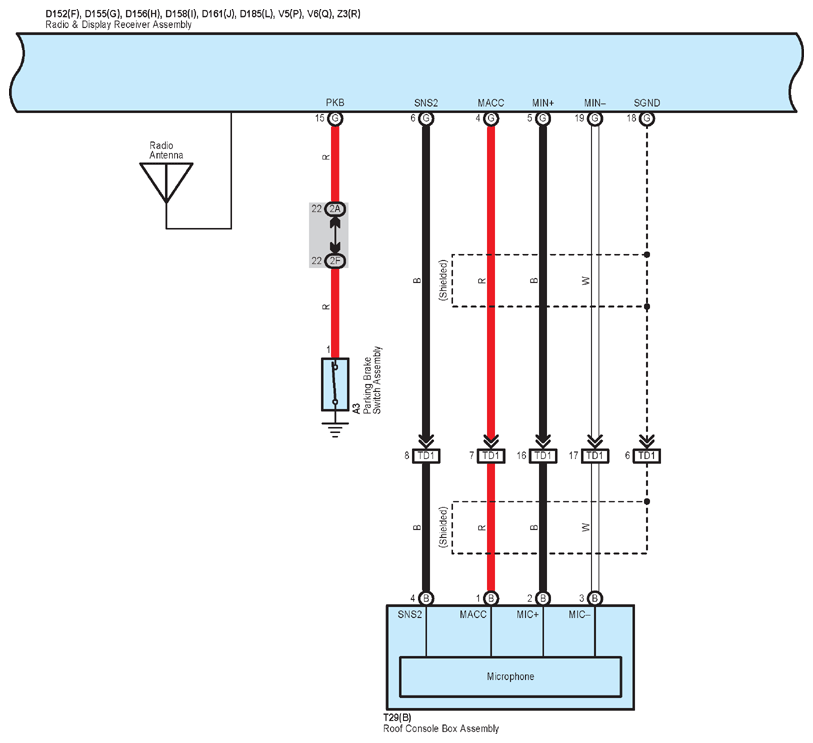

Fig 2: Audio System (W/O Navigation System), Parking Assist (Rear View Monitor W/O Navigation System) (2 Of 17)
G12221260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

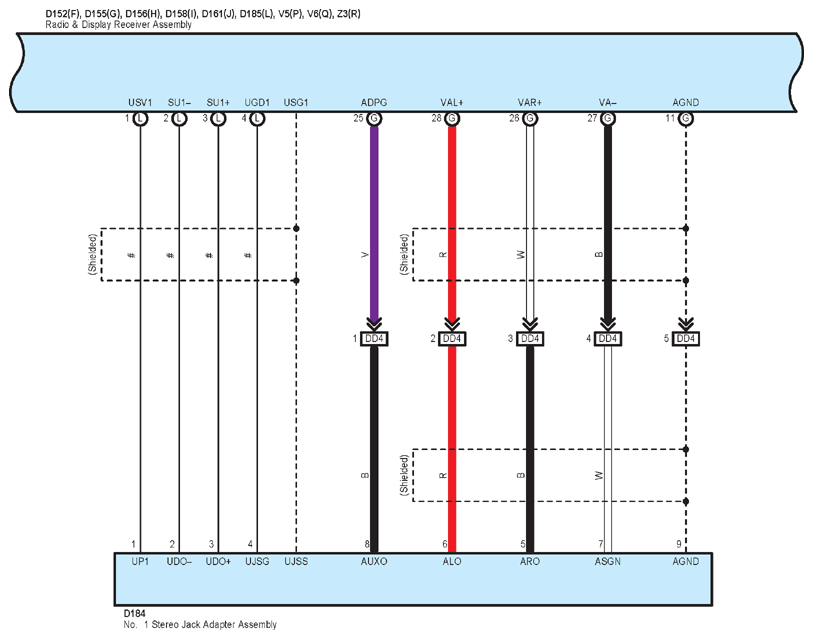

Fig 3: Audio System (W/O Navigation System), Parking Assist (Rear View Monitor W/O Navigation System) (3 Of 17)
G12221261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

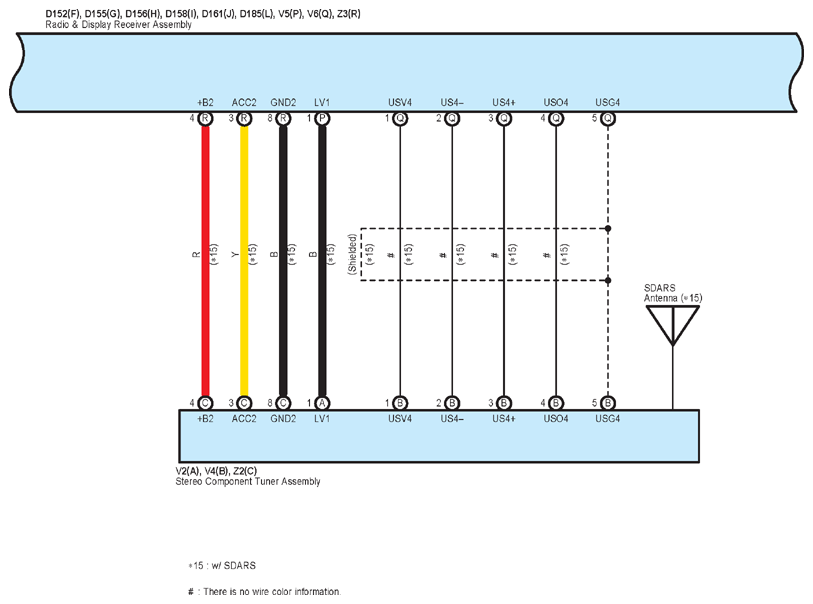

Fig 4: Audio System (W/O Navigation System), Parking Assist (Rear View Monitor W/O Navigation System) (4 Of 17)
G12221262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

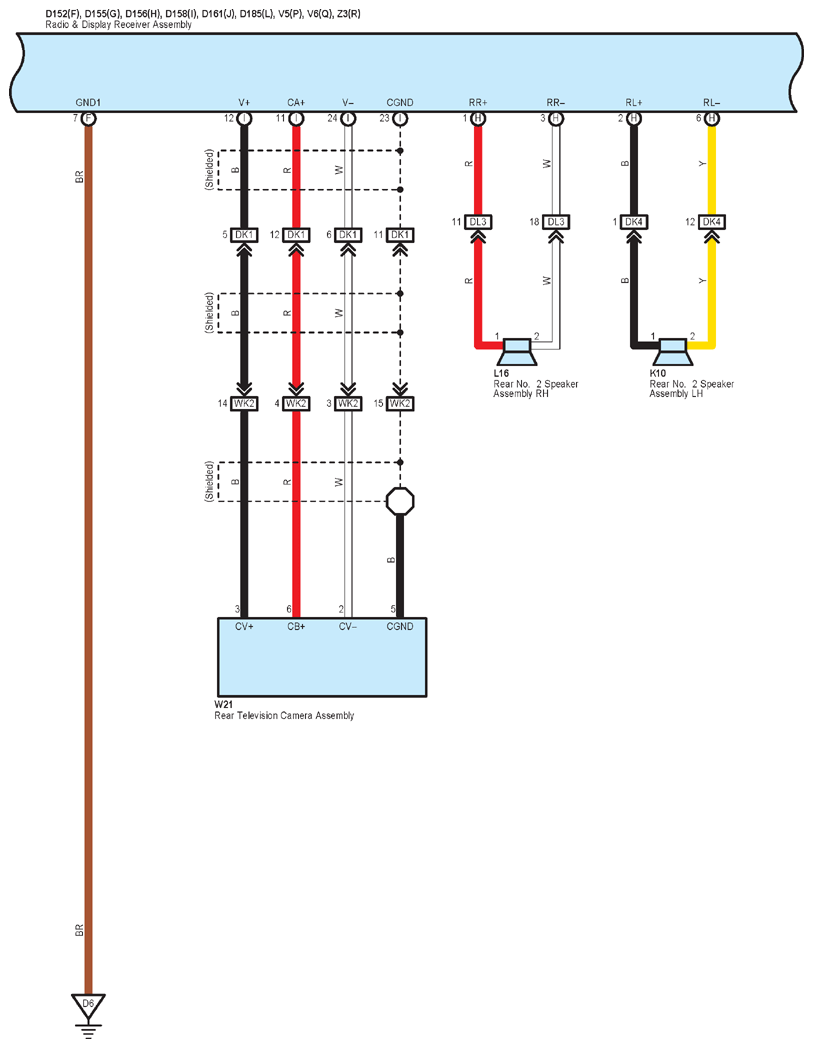

Fig 5: Audio System (W/O Navigation System), Parking Assist (Rear View Monitor W/O Navigation System) (5 Of 17)
G12221263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

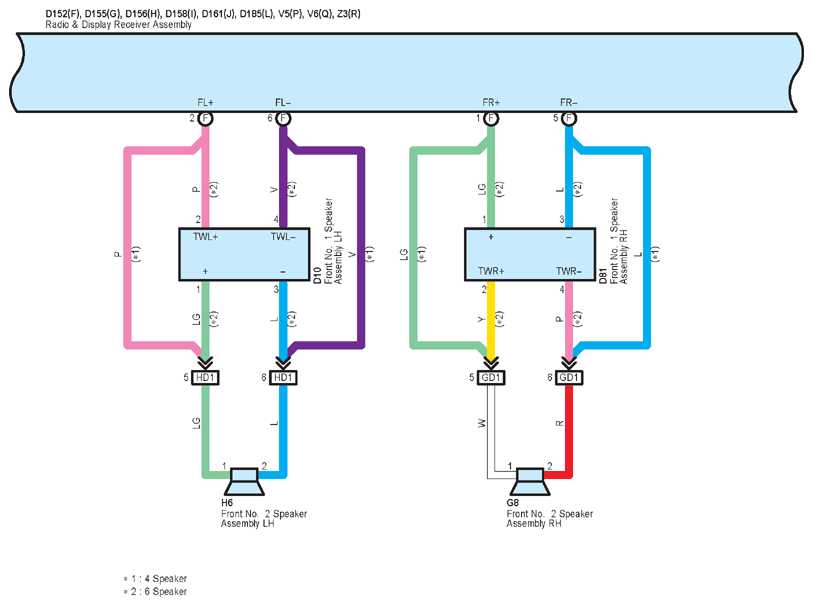

Fig 6: Audio System (W/O Navigation System), Parking Assist (Rear View Monitor W/O Navigation System) (6 Of 17)
G12221264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

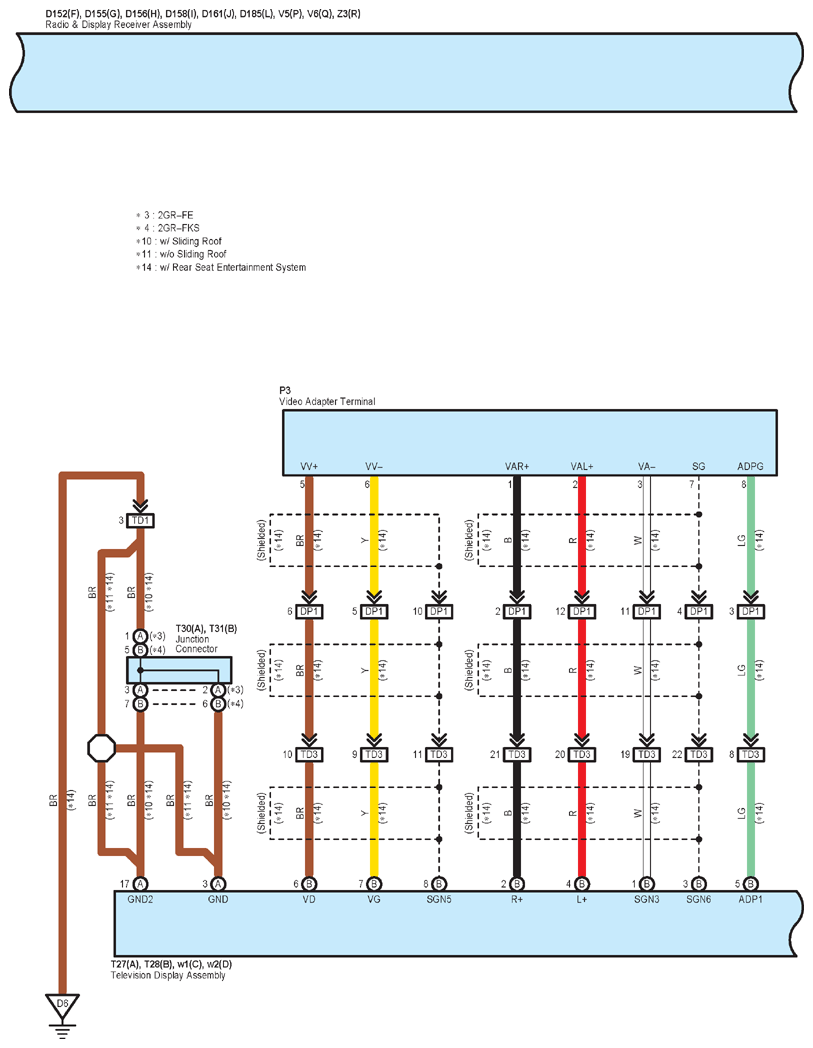

Fig 7: Audio System (W/O Navigation System), Parking Assist (Rear View Monitor W/O Navigation System) (7 Of 17)
G12221265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

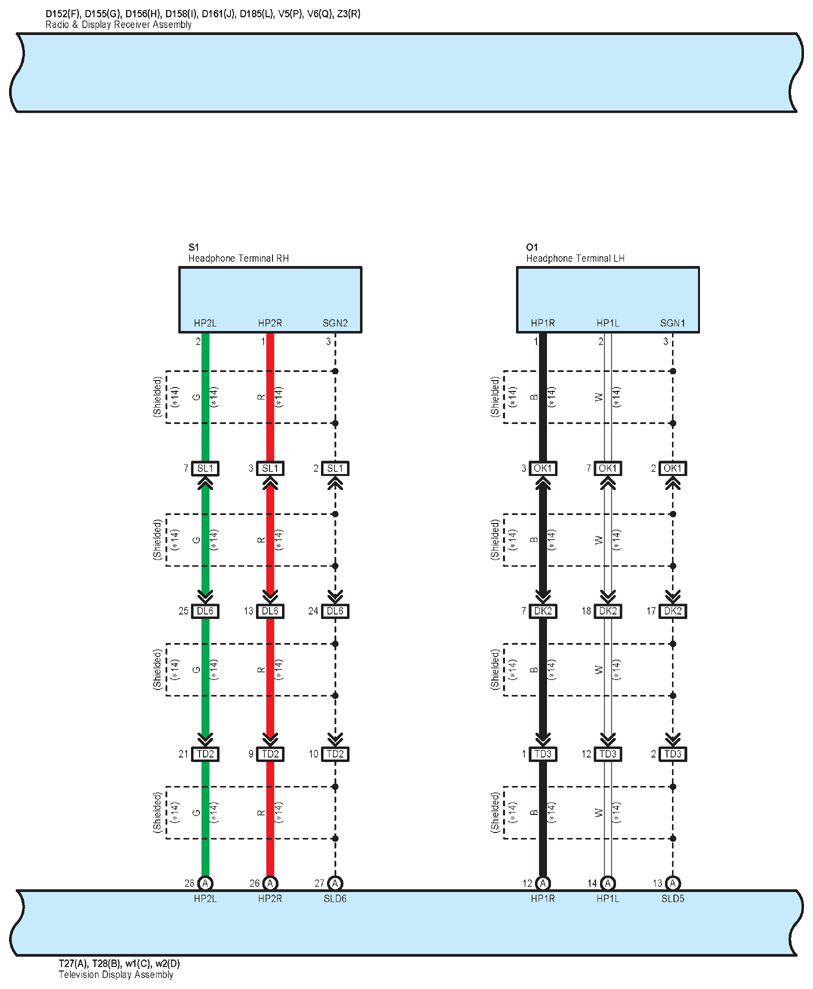

Fig 8: Audio System (W/O Navigation System), Parking Assist (Rear View Monitor W/O Navigation System) (8 Of 17)
G12221266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

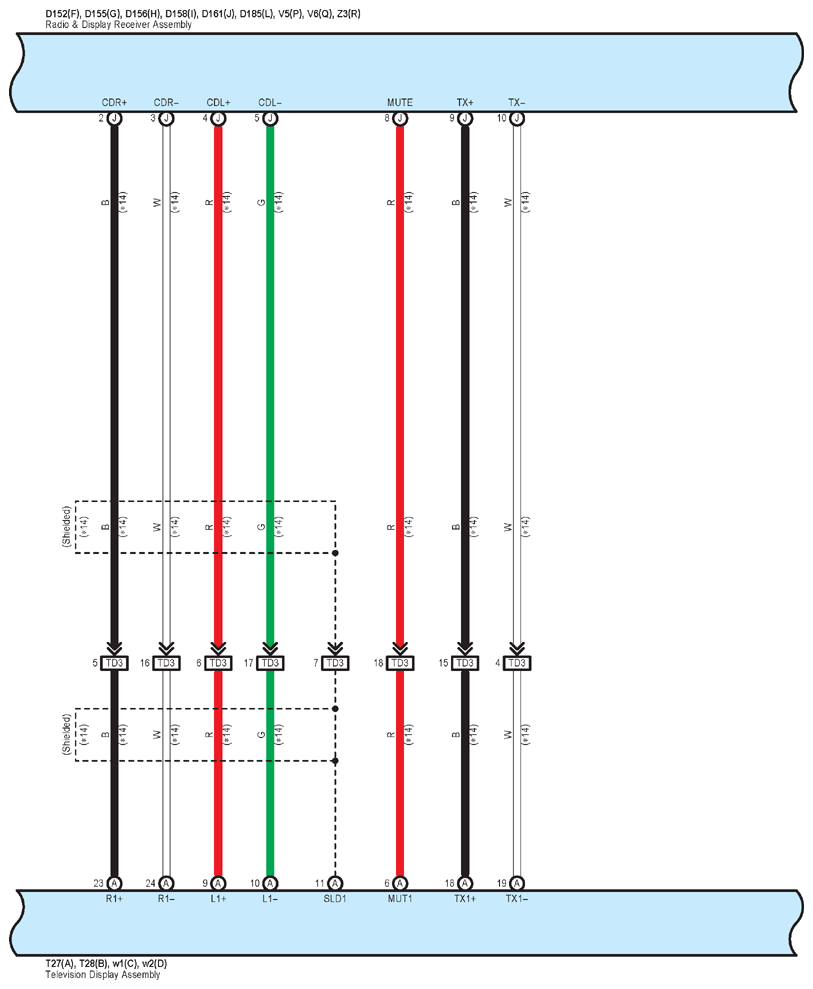

Fig 9: Audio System (W/O Navigation System), Parking Assist (Rear View Monitor W/O Navigation System) (9 Of 17)
G12221267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

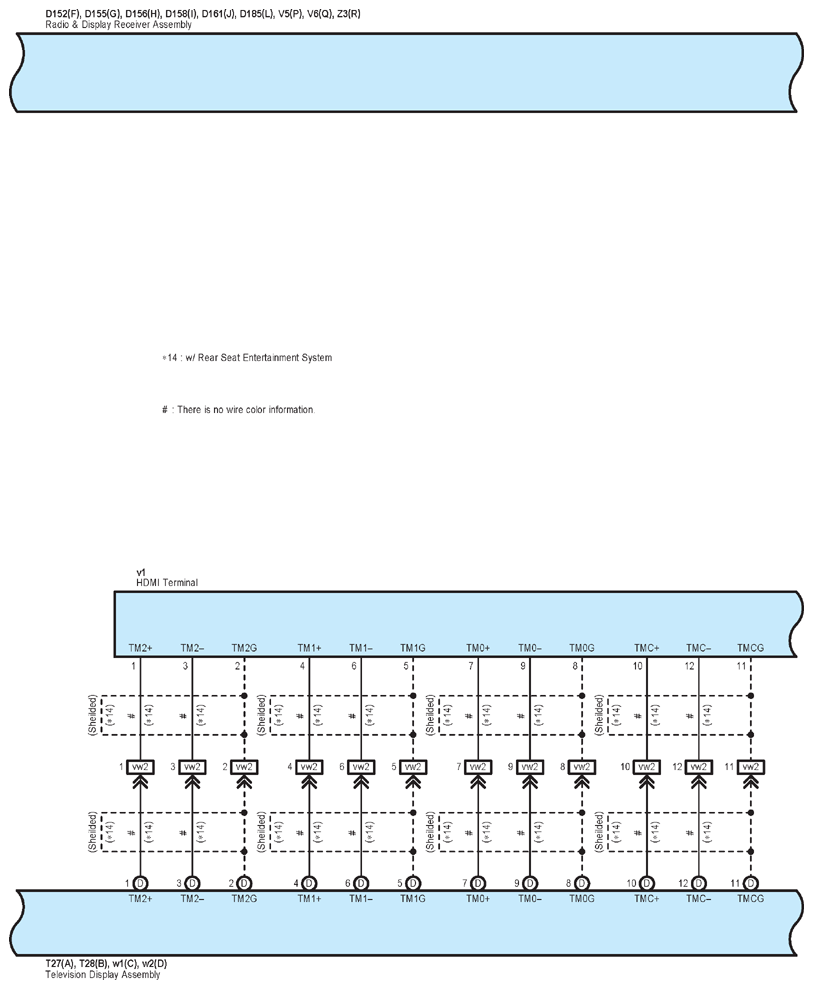

Fig 10: Audio System (W/O Navigation System), Parking Assist (Rear View Monitor W/O Navigation System) (10 Of 17)
G12221268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

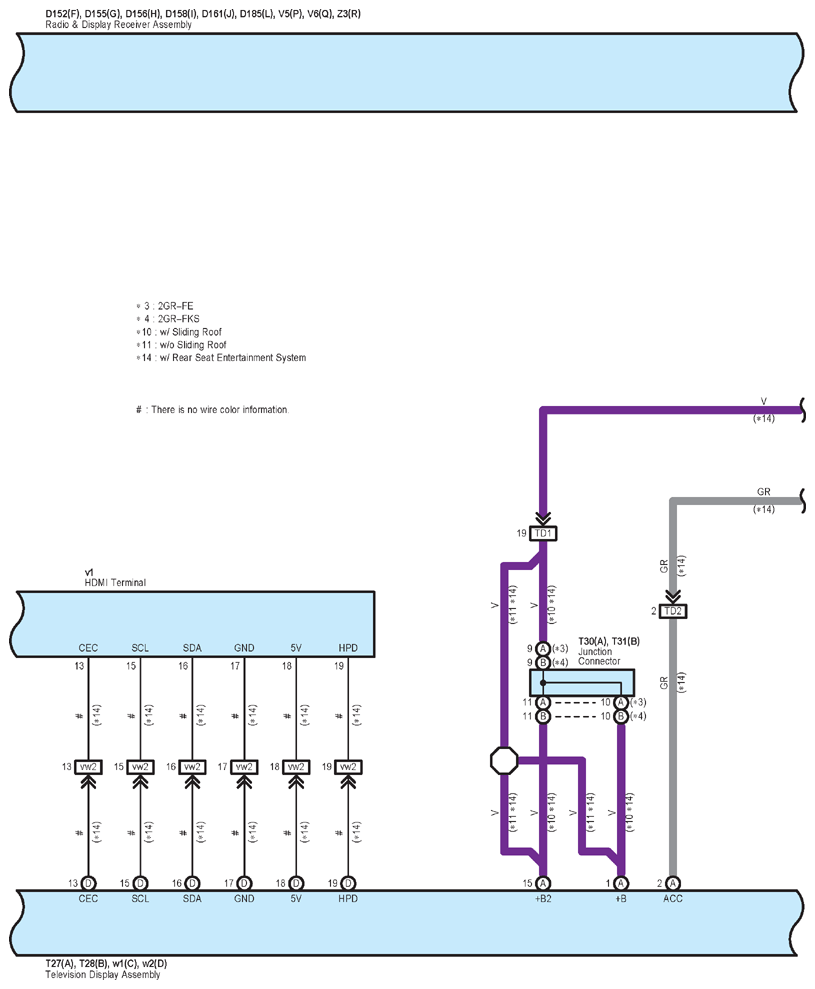

Fig 11: Audio System (W/O Navigation System), Parking Assist (Rear View Monitor W/O Navigation System) (11 Of 17)
G12221269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

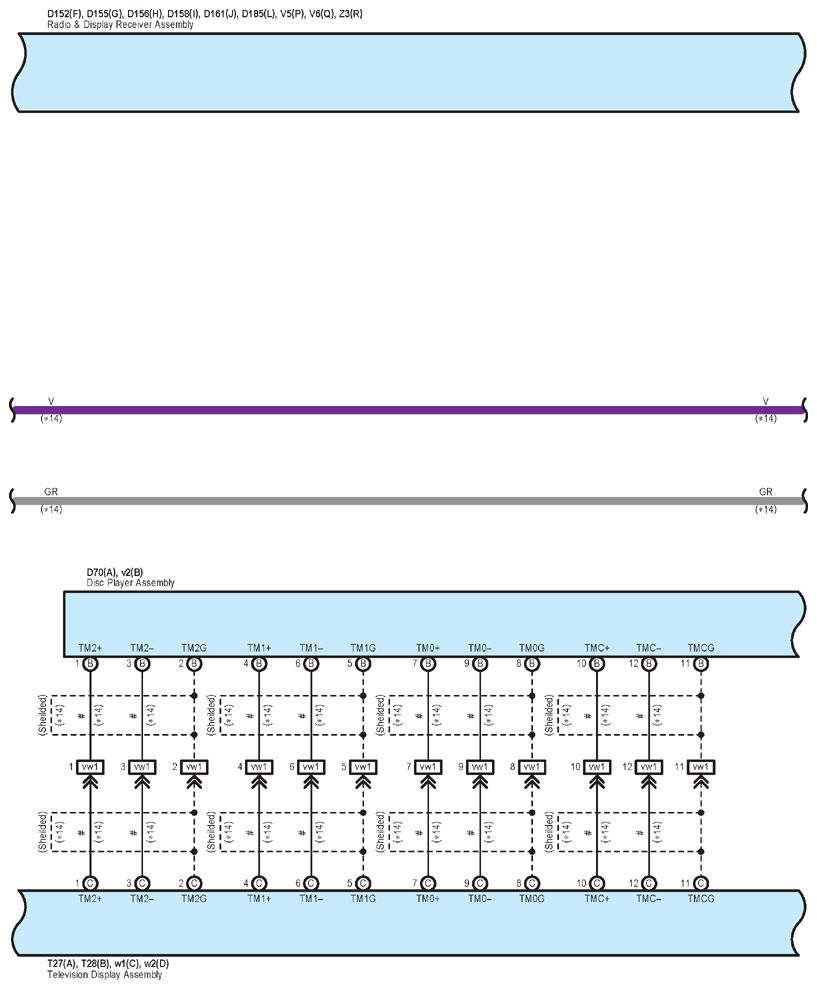

Fig 12: Audio System (W/O Navigation System), Parking Assist (Rear View Monitor W/O Navigation System) (12 Of 17)
G12221270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

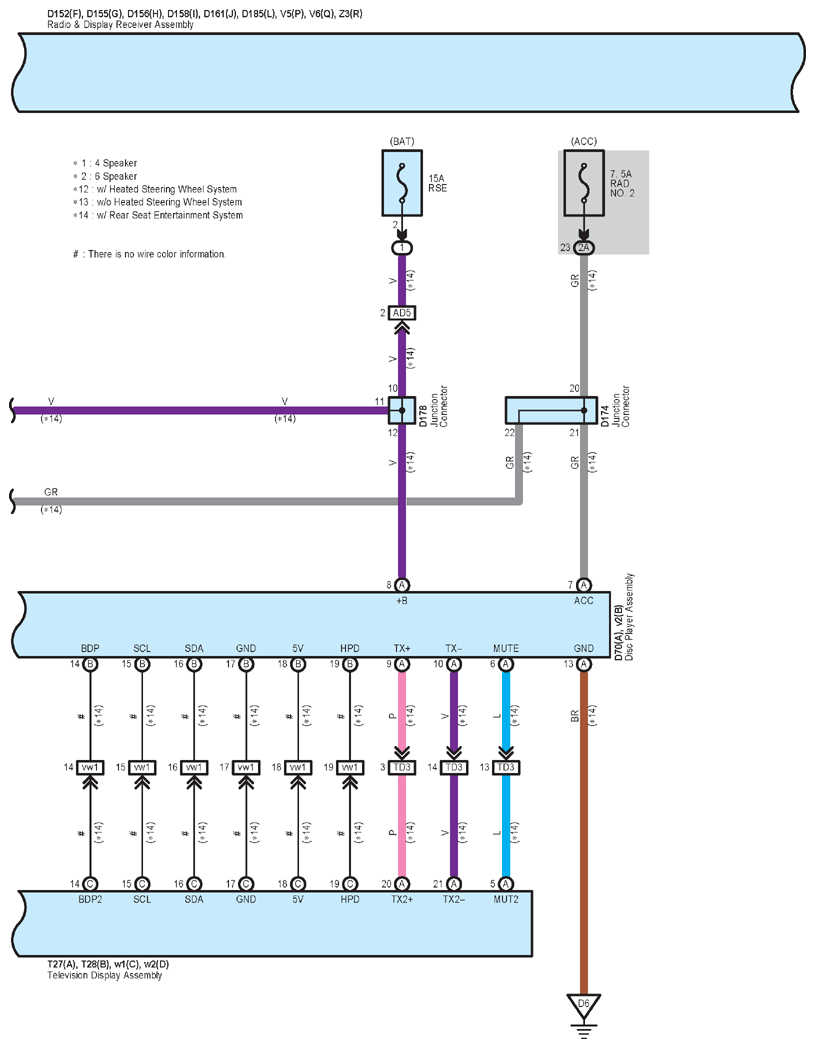

Fig 13: Audio System (W/O Navigation System), Parking Assist (Rear View Monitor W/O Navigation System) (13 Of 17)
G12221271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

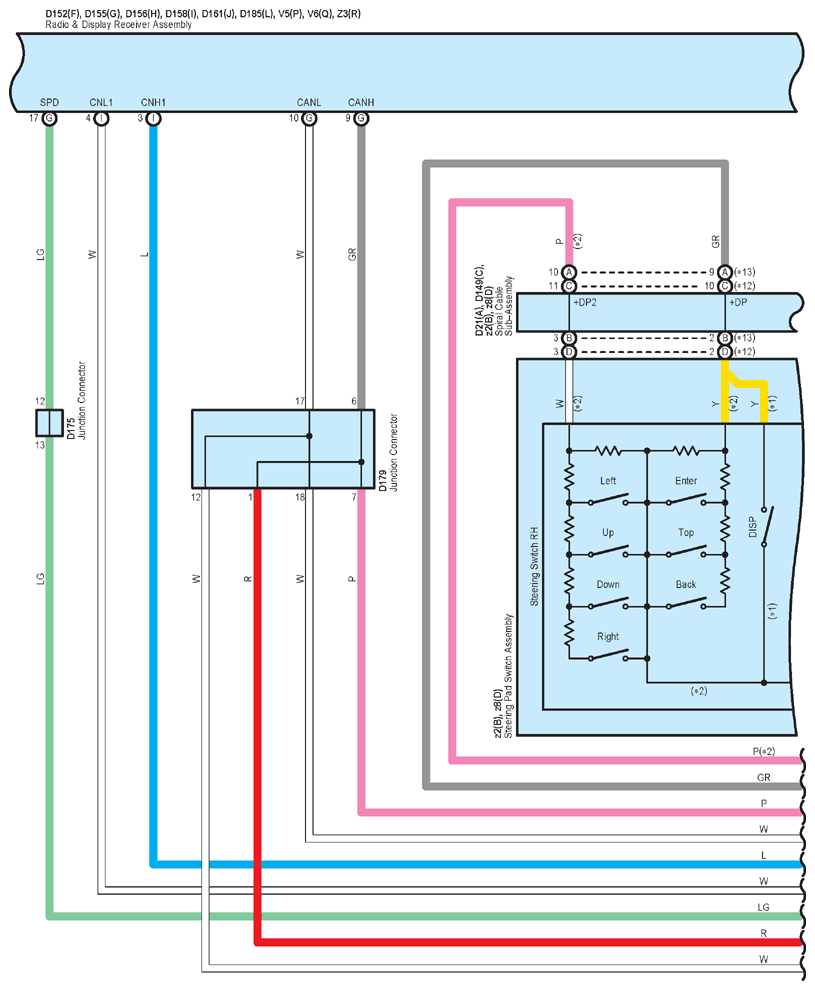

Fig 14: Audio System (W/O Navigation System), Parking Assist (Rear View Monitor W/O Navigation System) (14 Of 17)
G12221272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

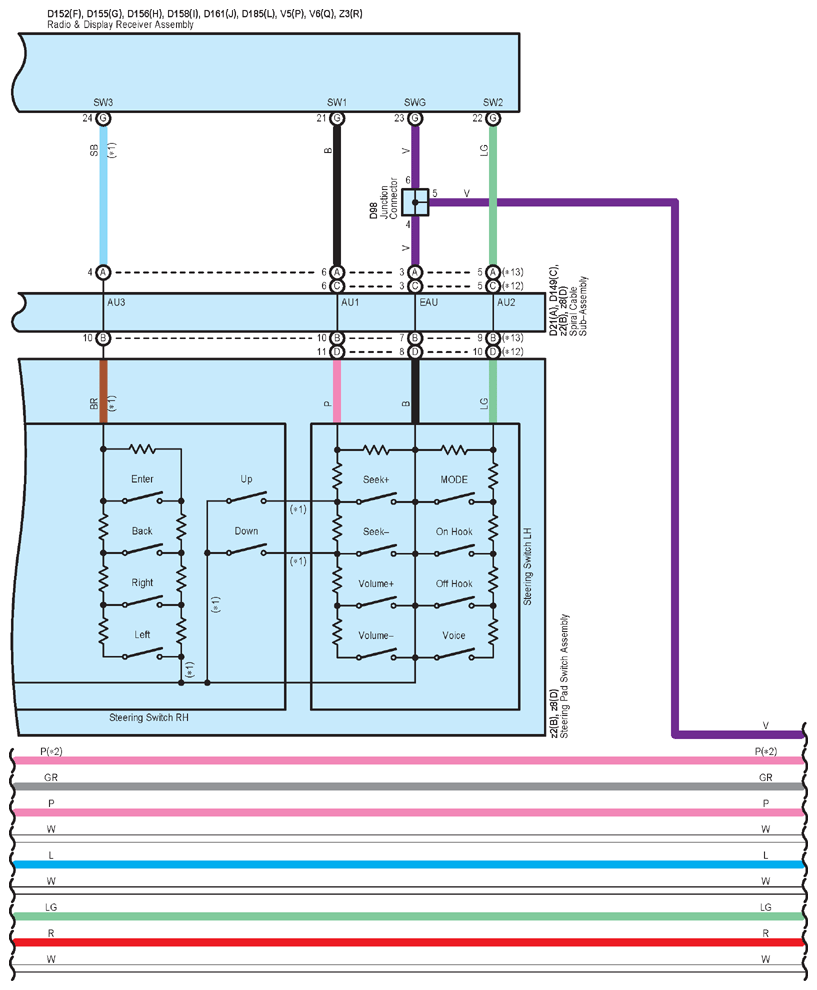

Fig 15: Audio System (W/O Navigation System), Parking Assist (Rear View Monitor W/O Navigation System) (15 Of 17)
G12221273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

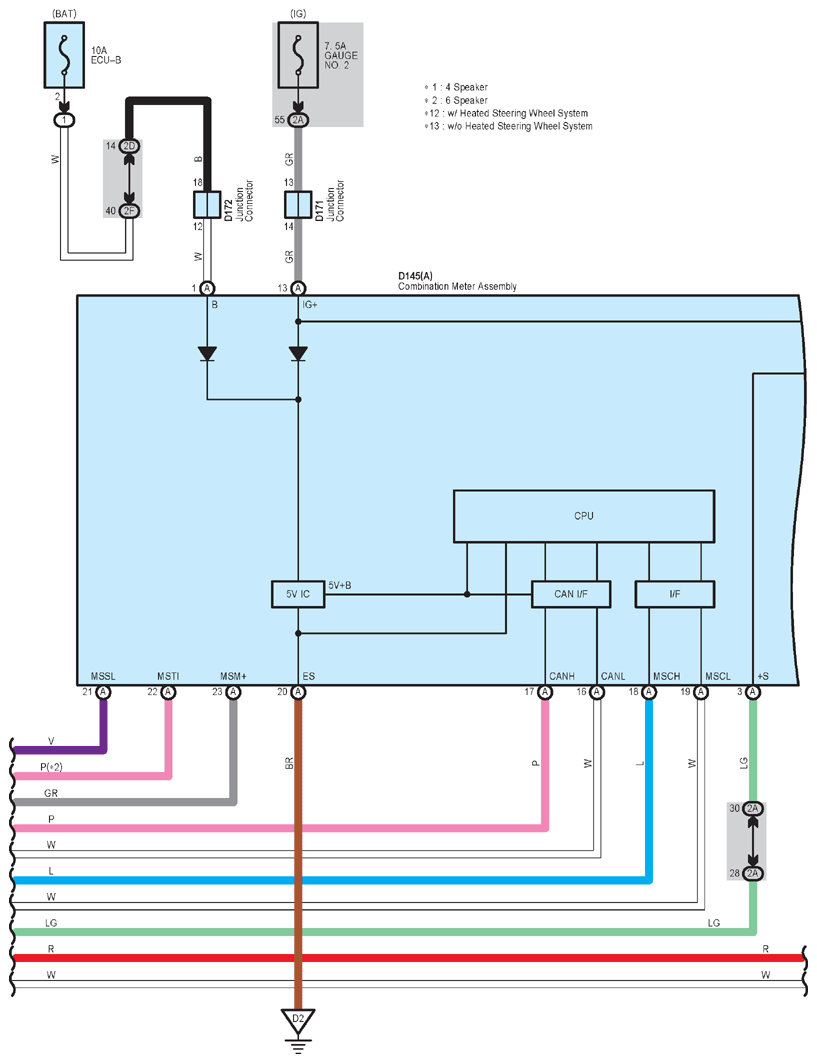

Fig 16: Audio System (W/O Navigation System), Parking Assist (Rear View Monitor W/O Navigation System) (16 Of 17)
G12221274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

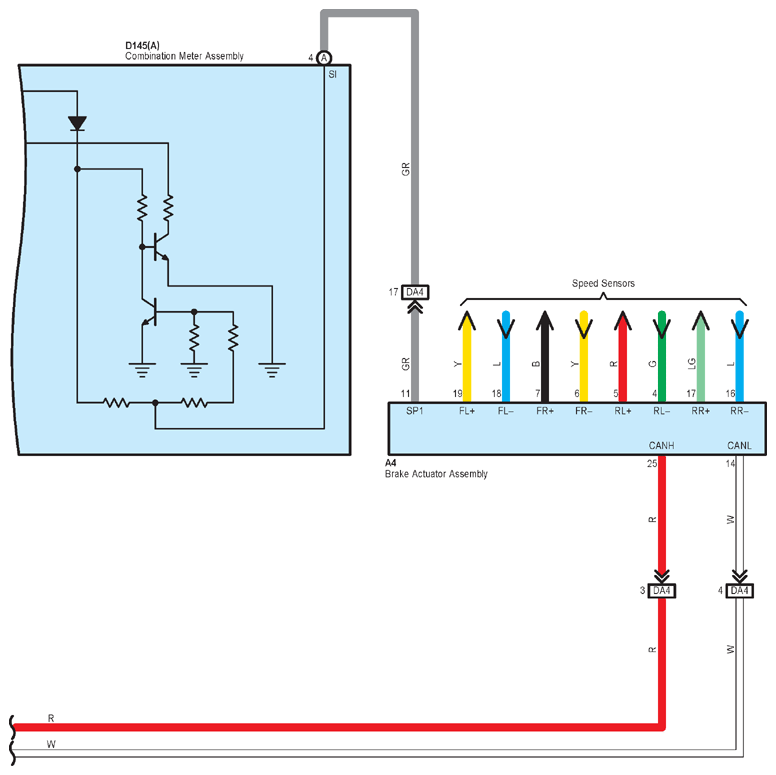

Fig 17: Audio System (W/O Navigation System), Parking Assist (Rear View Monitor W/O Navigation System) (17 Of 17)
G12221275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
