Parts Location [08/2015 - 09/2019]: Illustration

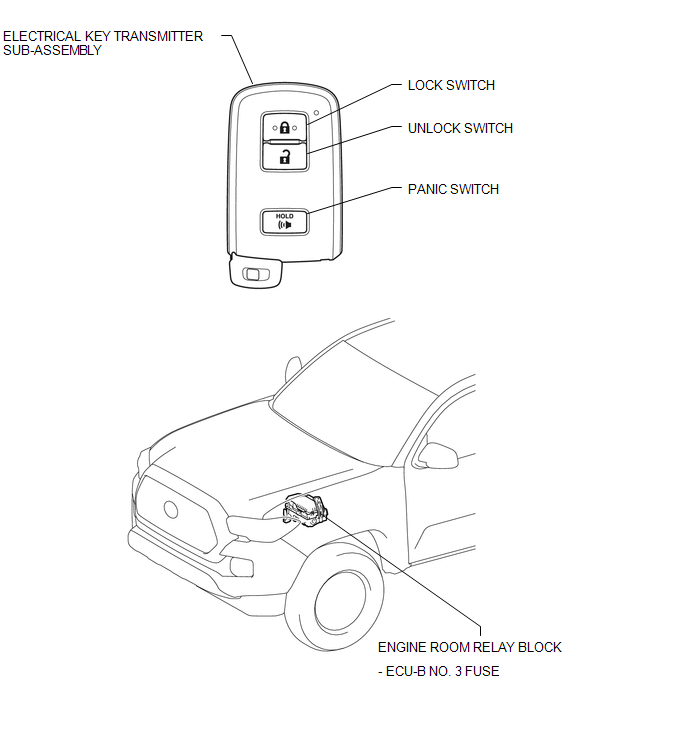

GTY712182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

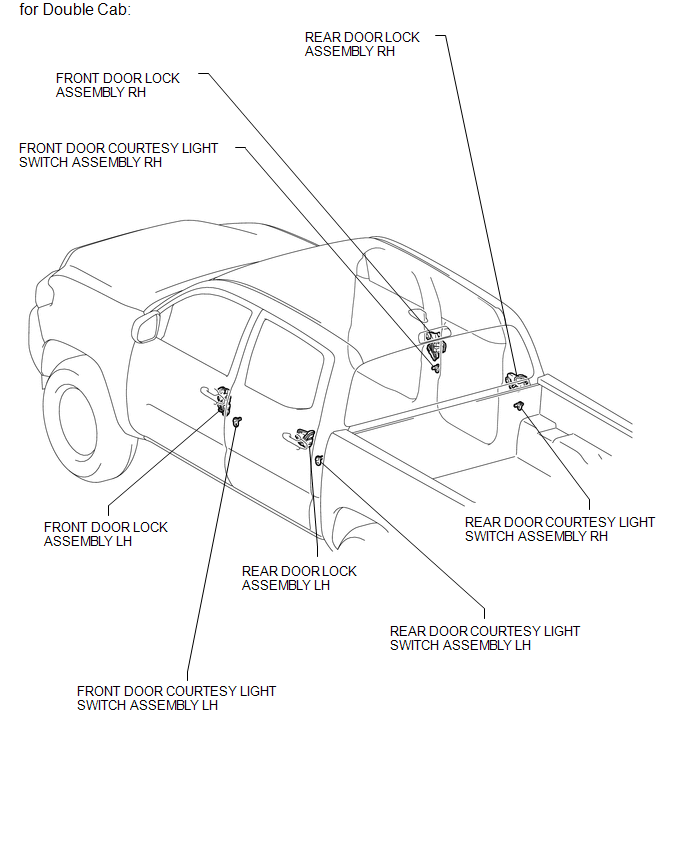

GTY726347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

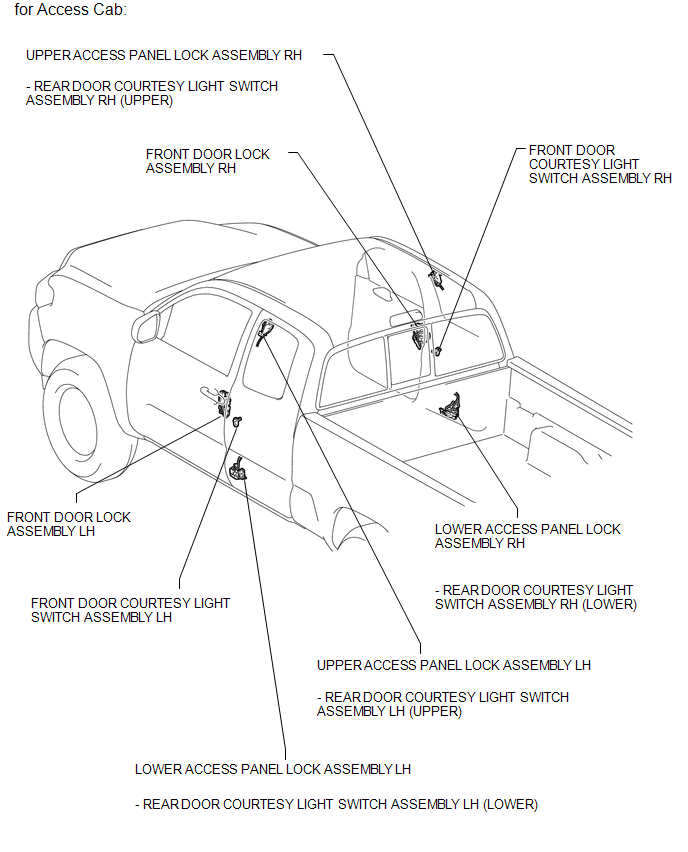

GTY704580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

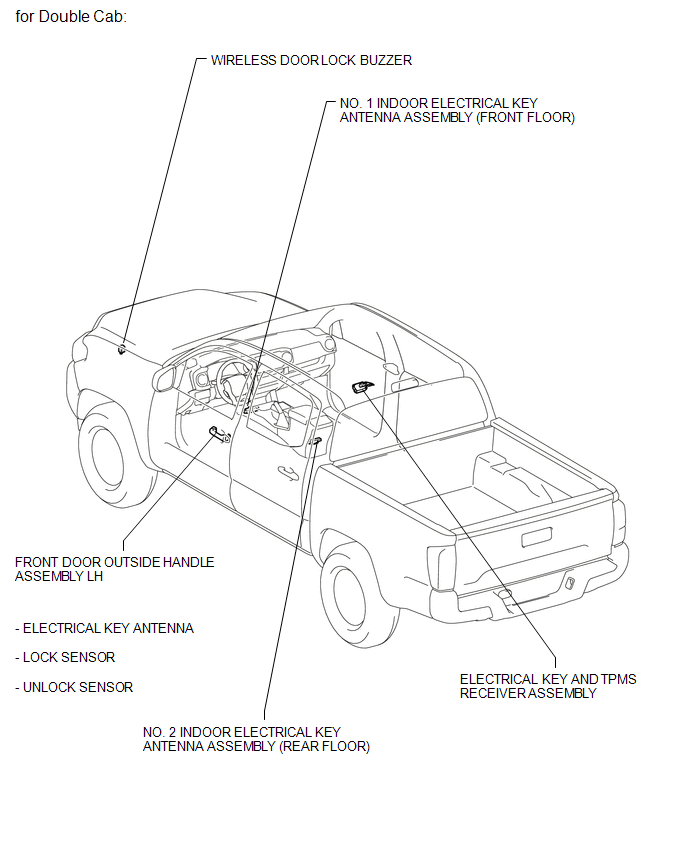

GTY607012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

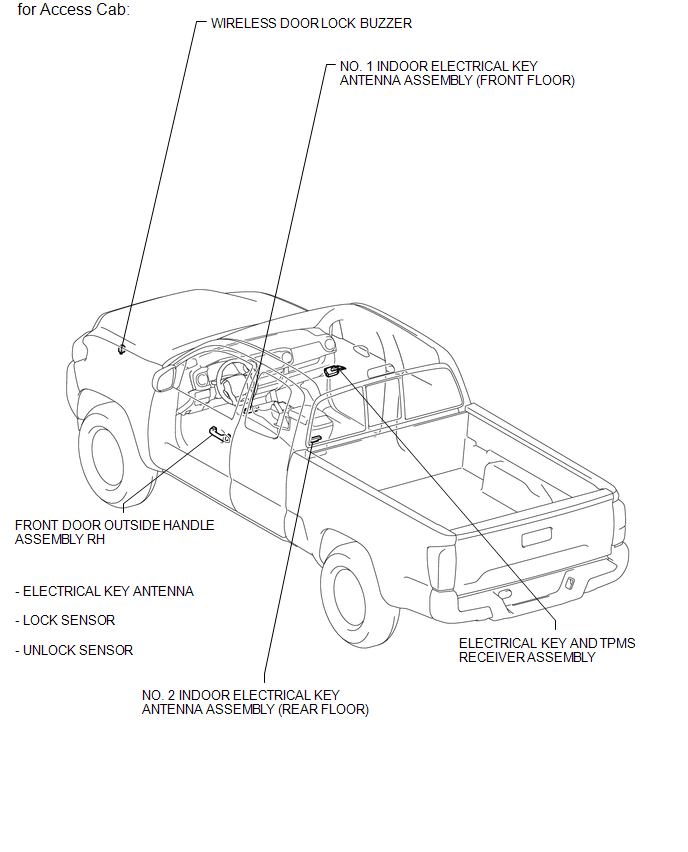

GTY733096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

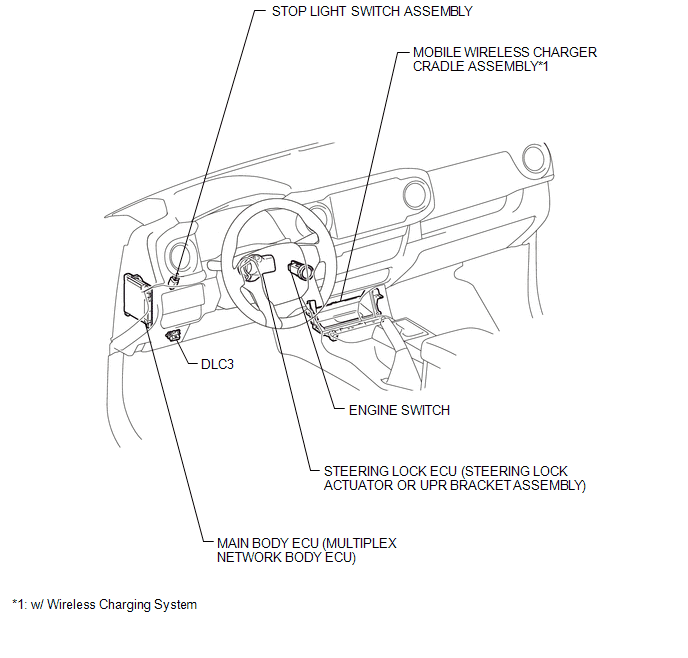

GTY736340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

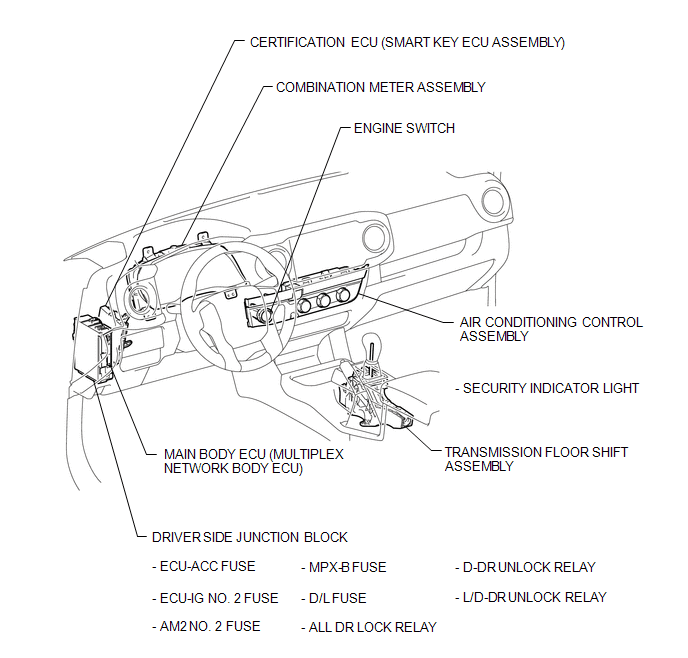

GTY726763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
