System Diagrams

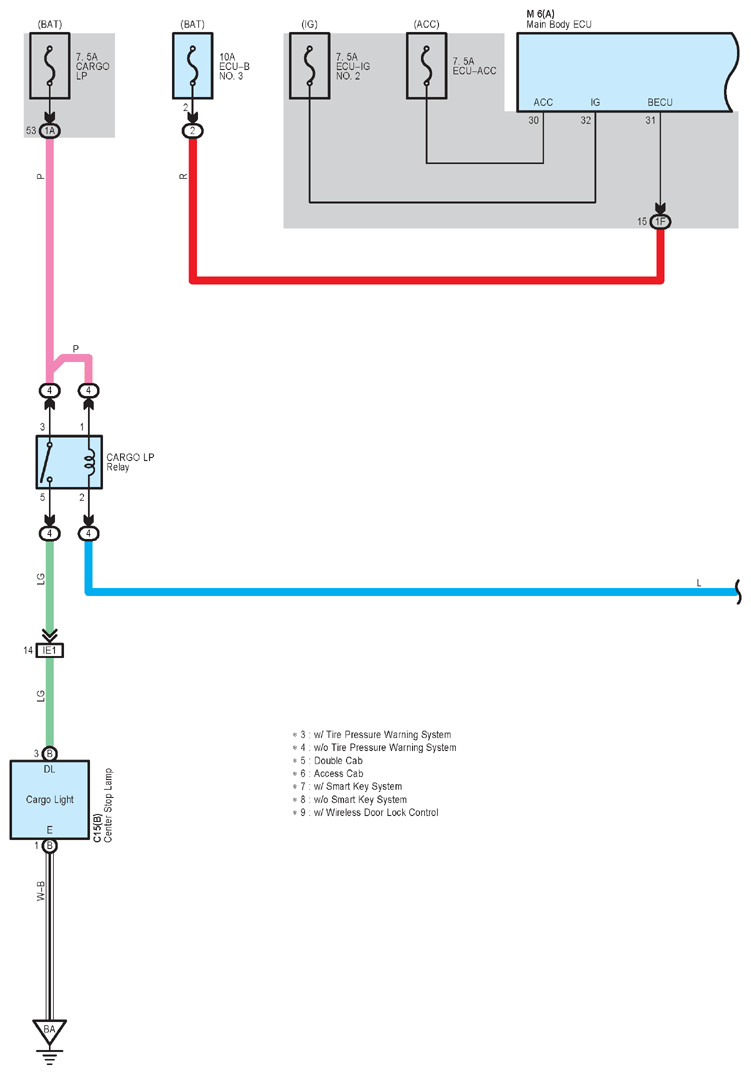

Fig 1: Cargo Light (1 Of 4)

G12222936

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

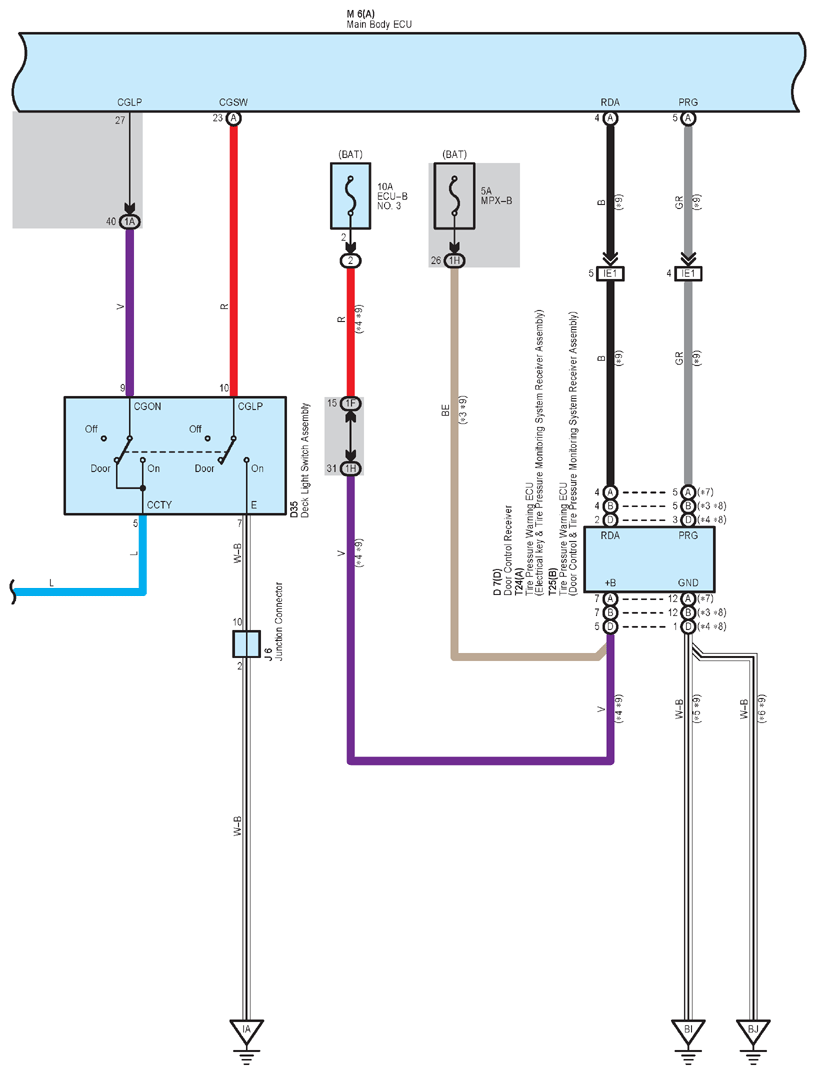

Fig 2: Cargo Light (2 Of 4)

G12222937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

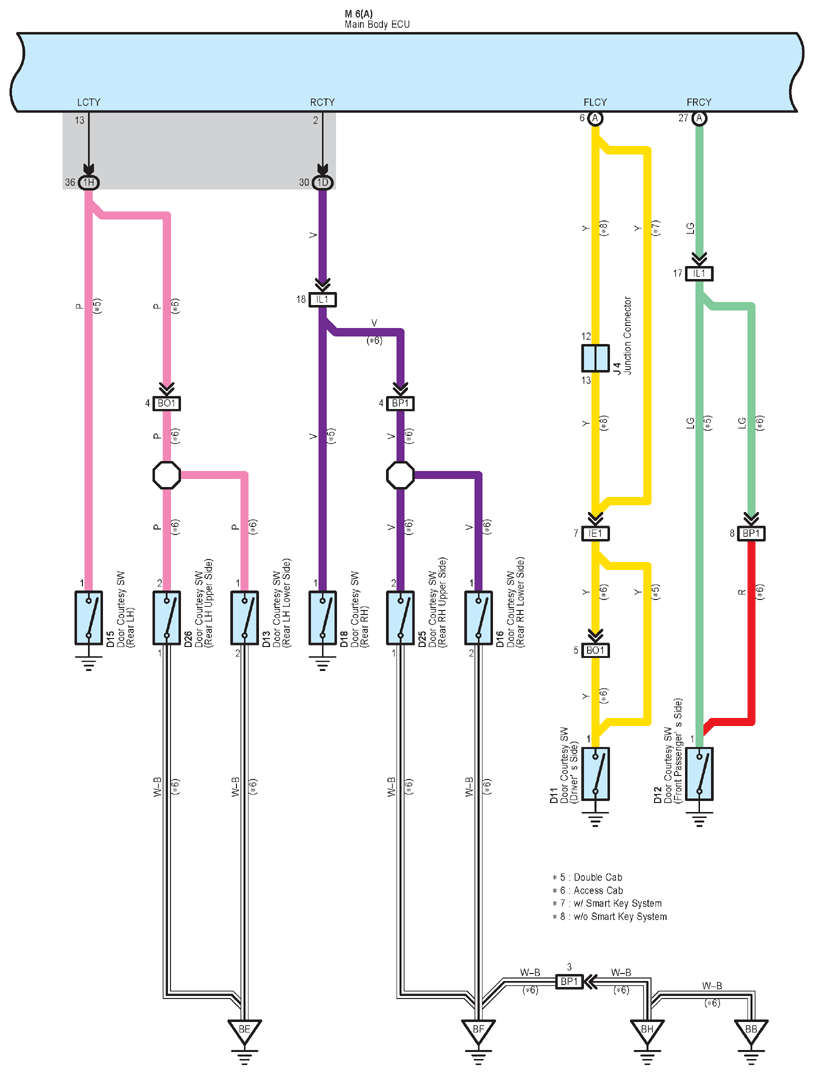

Fig 3: Cargo Light (3 Of 4)

G12222938

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

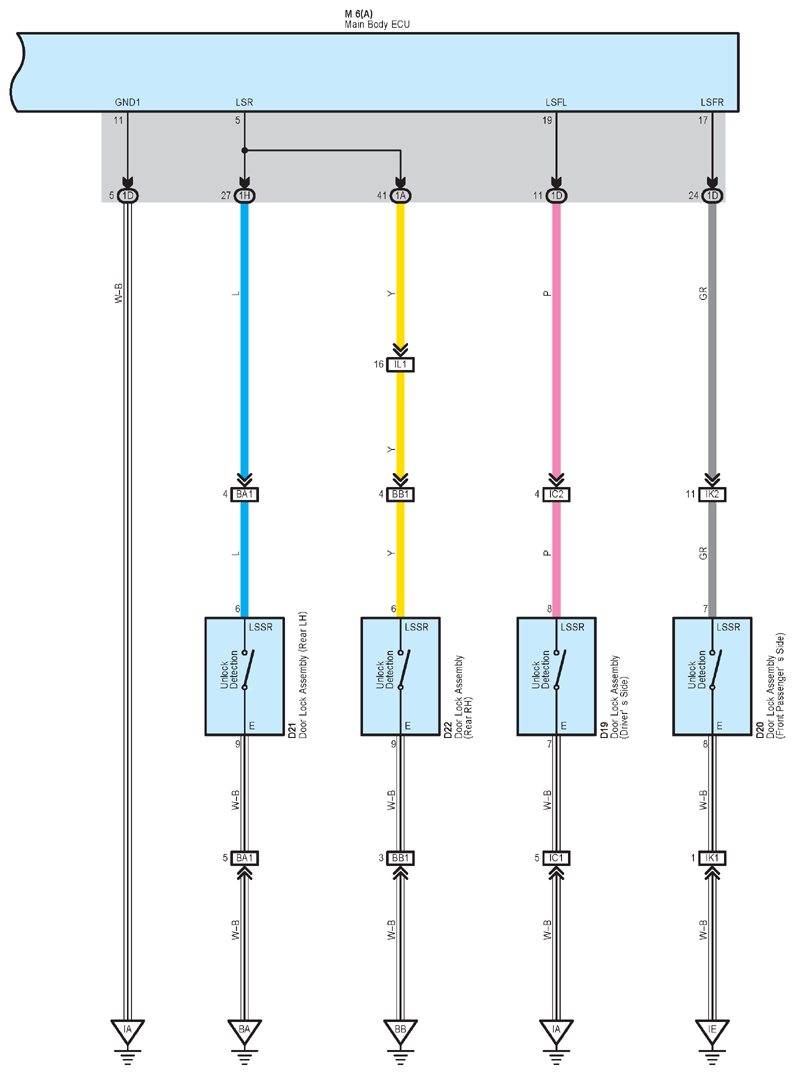

Fig 4: Cargo Light (4 Of 4)

G12222939

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
