System Diagrams

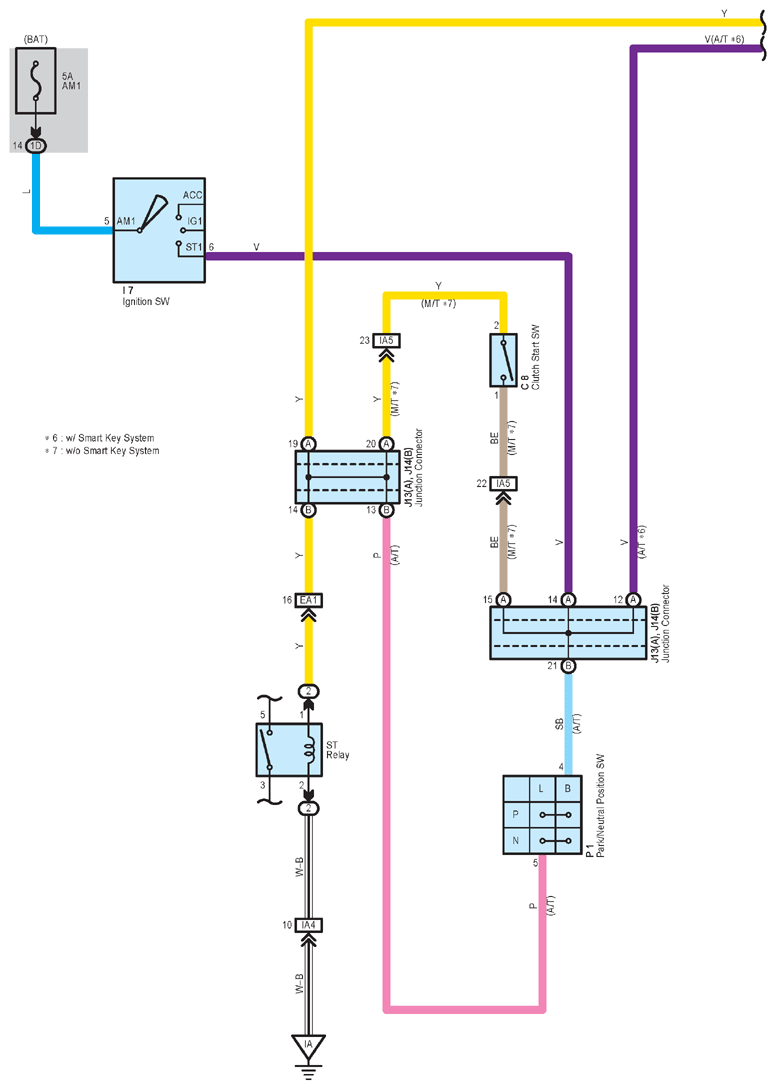

Fig 1: Engine Control (2GR-FKS) (1 Of 21)

G12223003

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

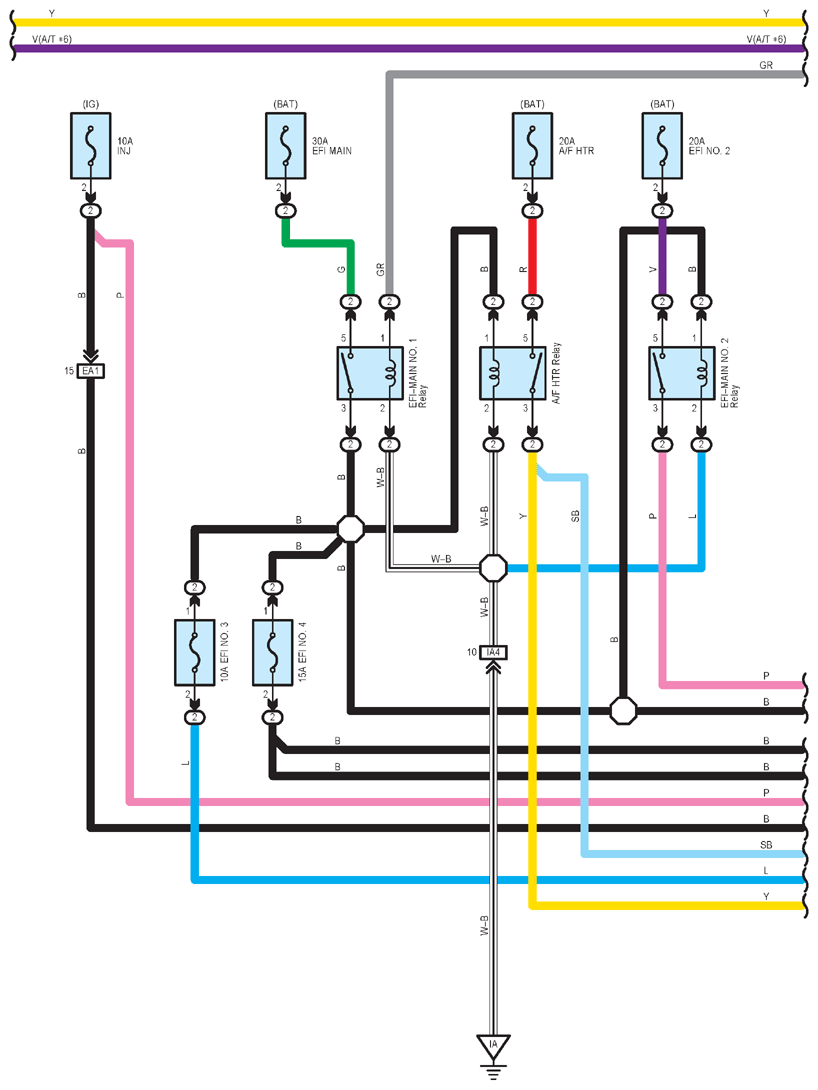

Fig 2: Engine Control (2GR-FKS) (2 Of 21)

G12223004

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

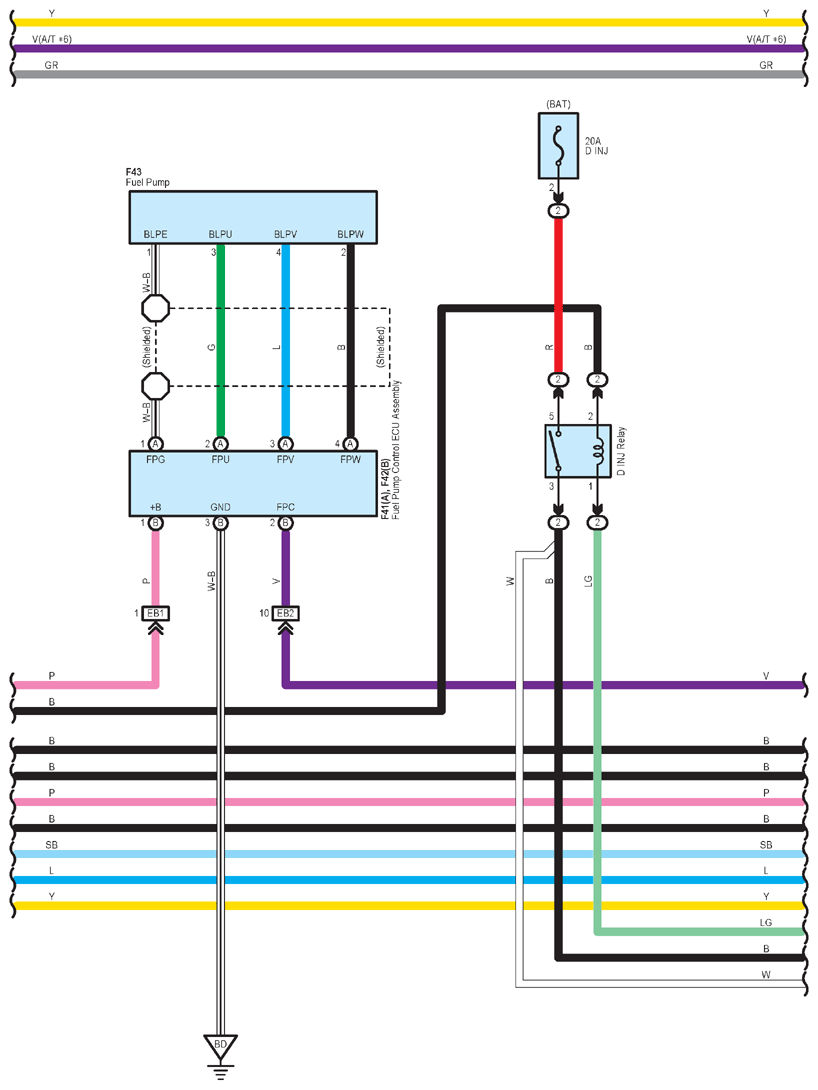

Fig 3: Engine Control (2GR-FKS) (3 Of 21)

G12223005

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

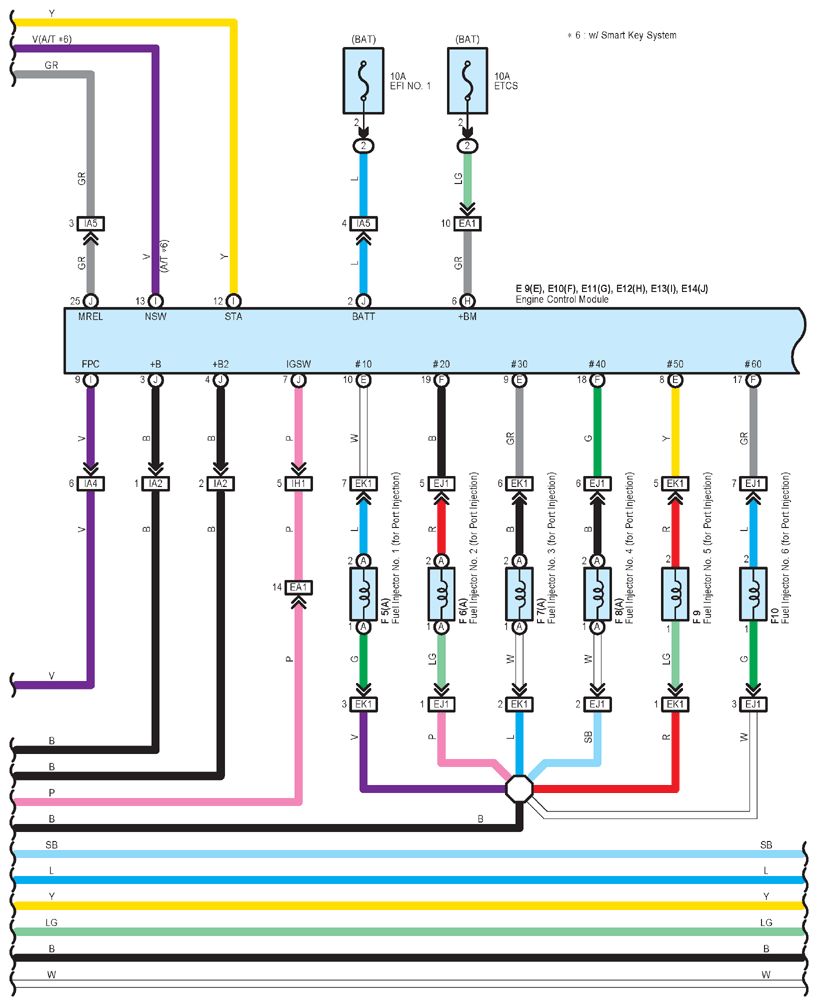

Fig 4: Engine Control (2GR-FKS) (4 Of 21)

G12223006

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

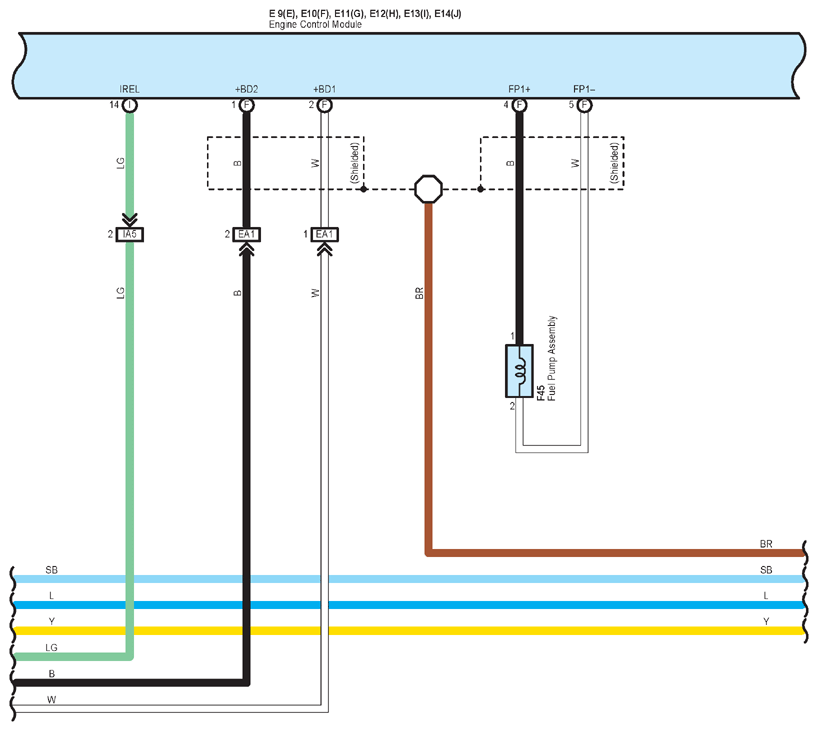

Fig 5: Engine Control (2GR-FKS) (5 Of 21)

G12223007

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

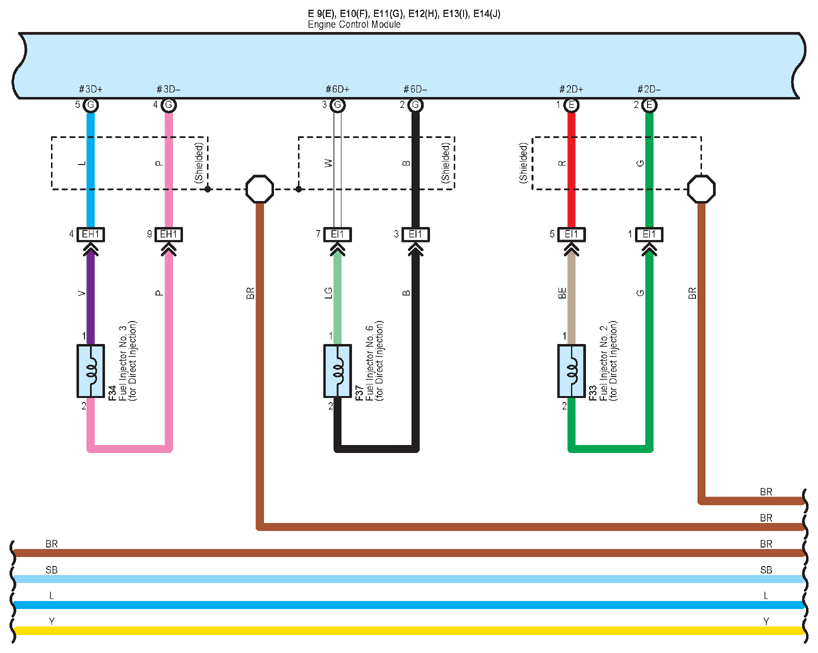

Fig 6: Engine Control (2GR-FKS) (6 Of 21)

G12223008

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

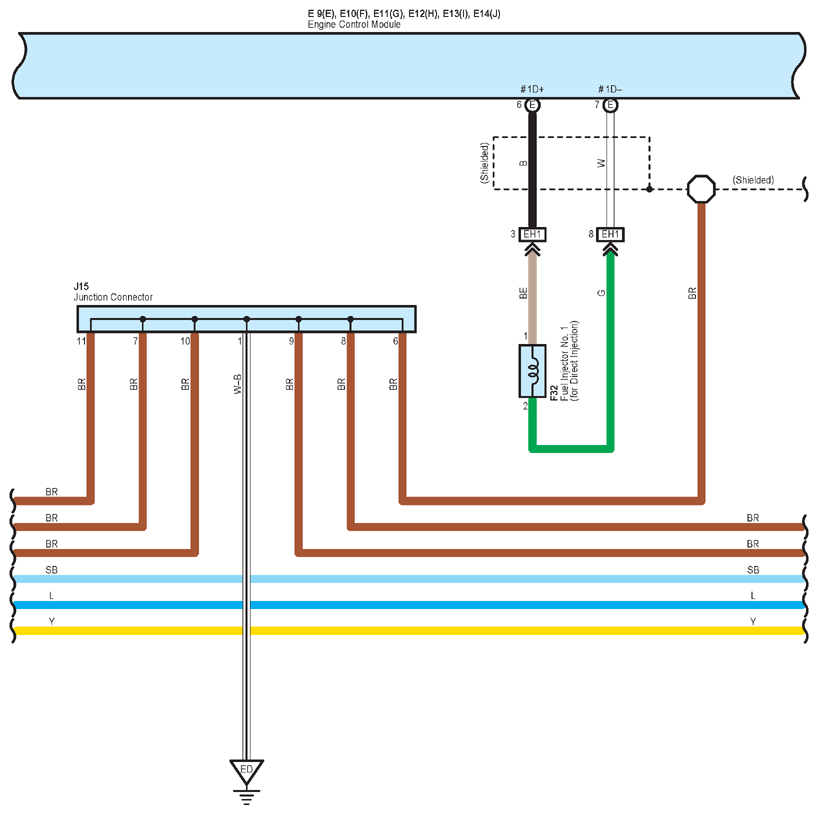

Fig 7: Engine Control (2GR-FKS) (7 Of 21)

G12223009

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

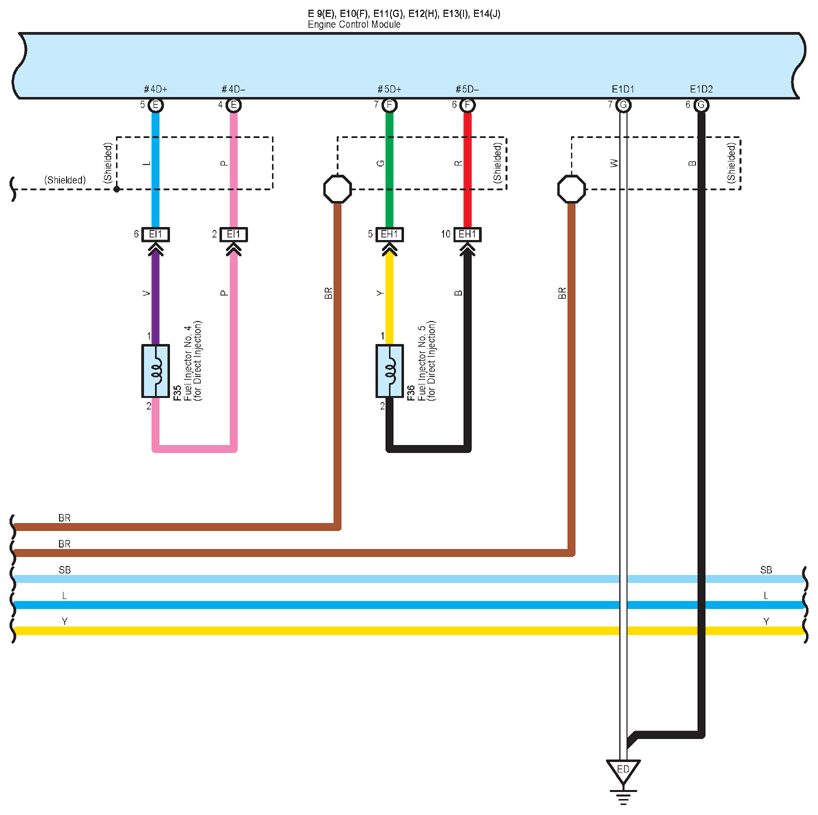

Fig 8: Engine Control (2GR-FKS) (8 Of 21)

G12223010

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

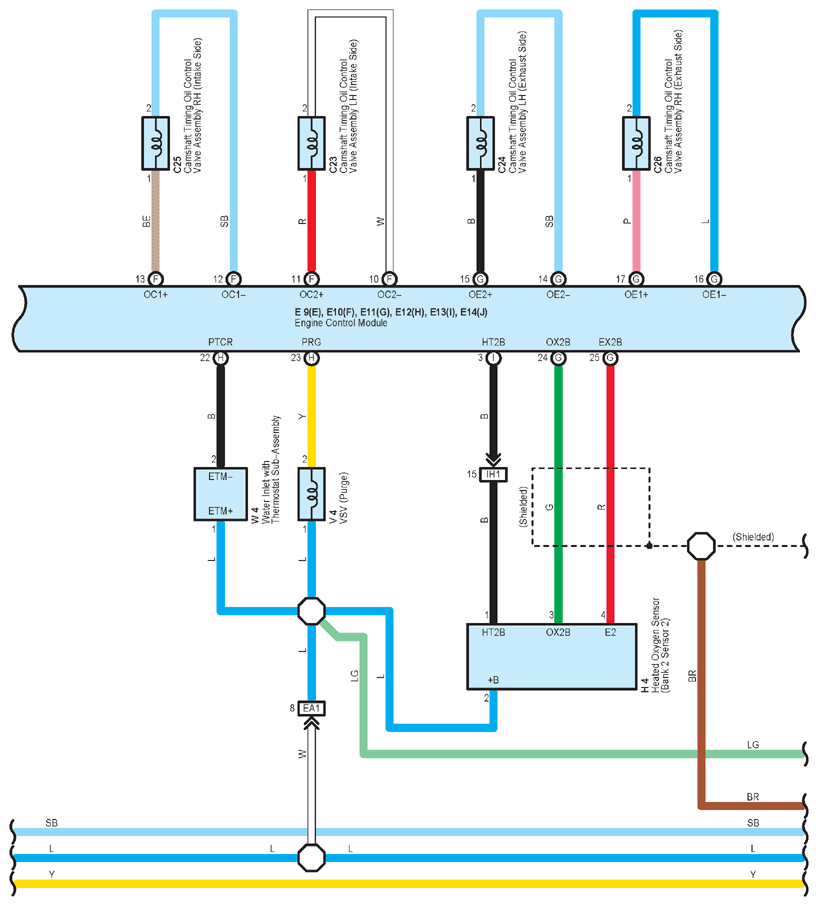

Fig 9: Engine Control (2GR-FKS) (9 Of 21)

G12223011

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

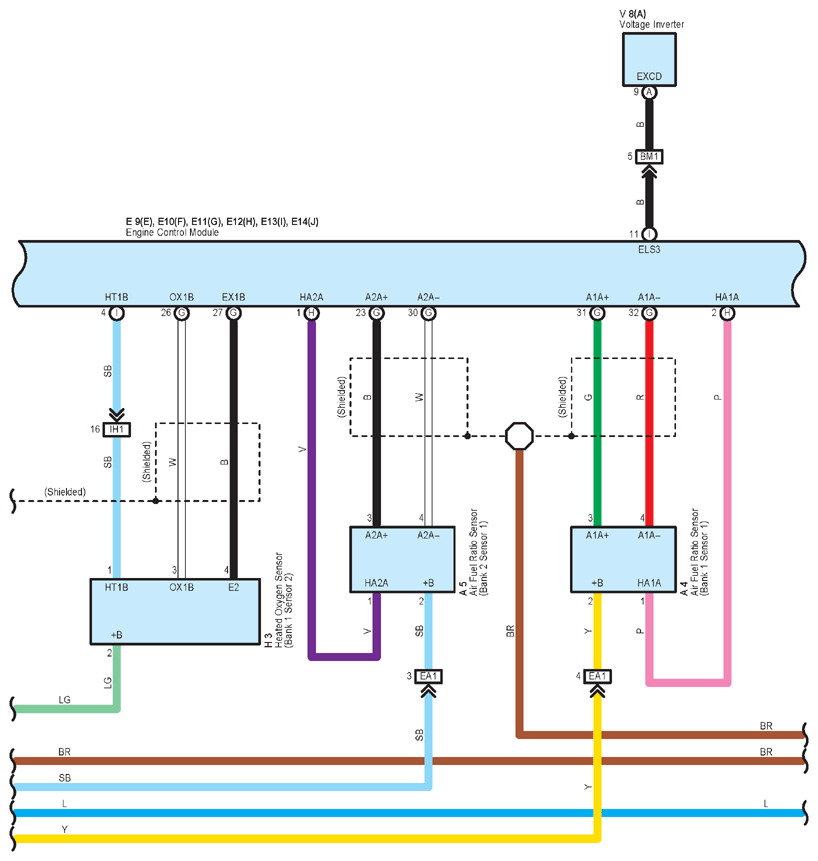

Fig 10: Engine Control (2GR-FKS) (10 Of 21)

G12223012

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

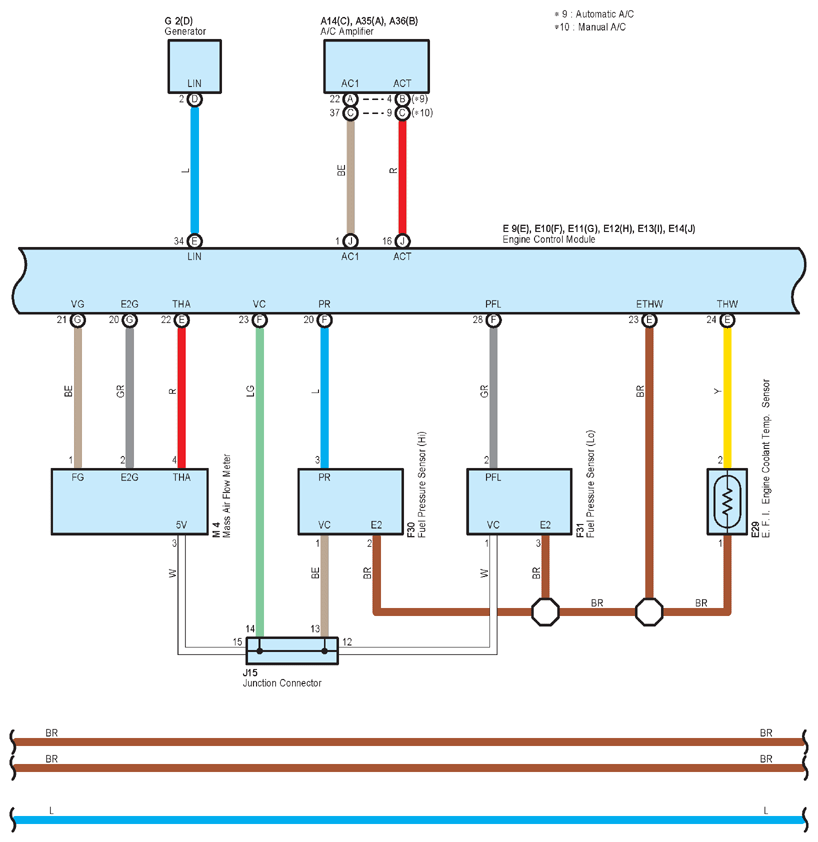

Fig 11: Engine Control (2GR-FKS) (11 Of 21)

G12223013

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

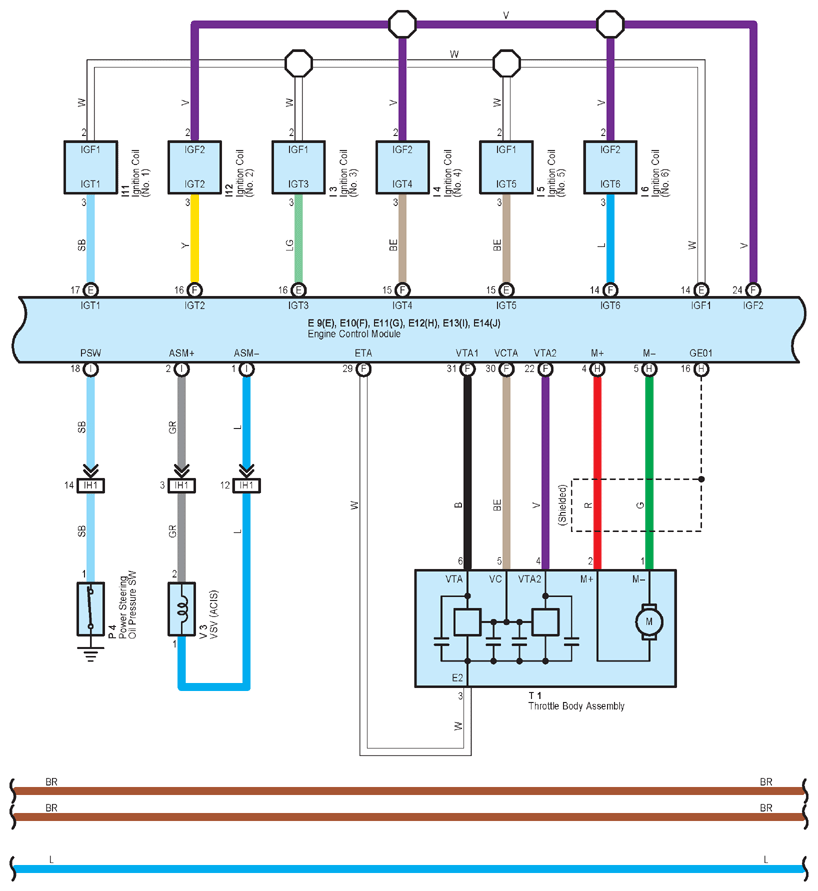

Fig 12: Engine Control (2GR-FKS) (12 Of 21)

G12223014

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

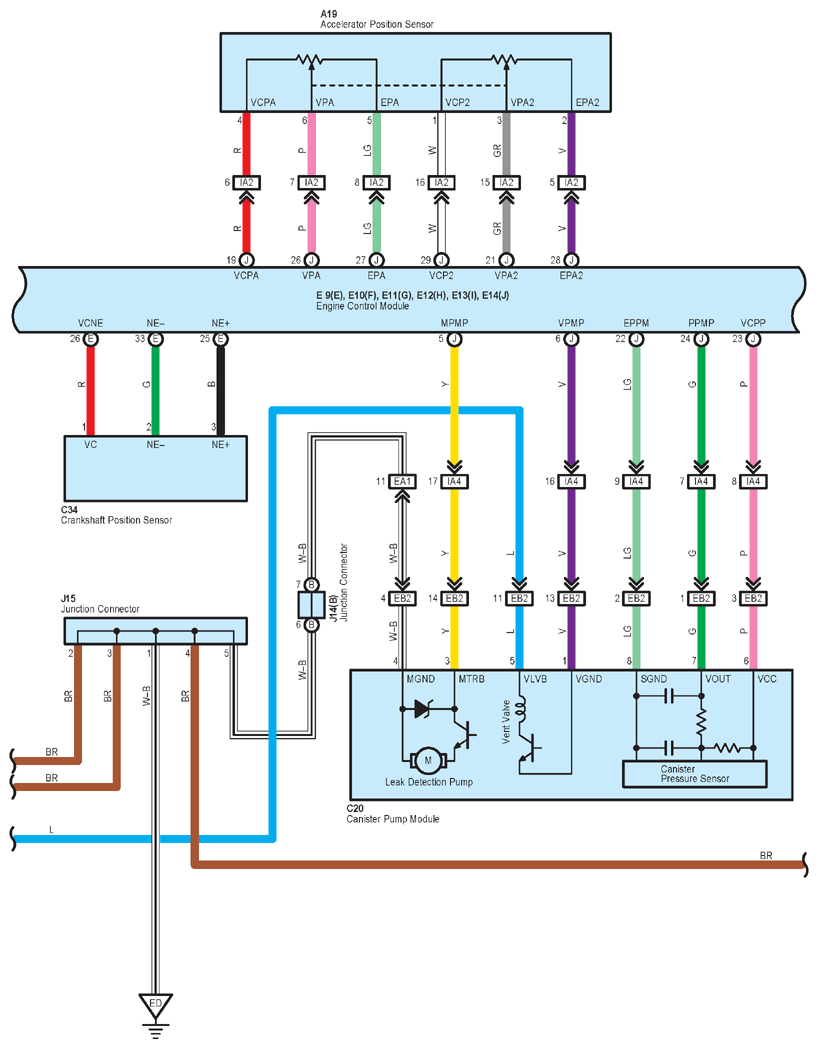

Fig 13: Engine Control (2GR-FKS) (13 Of 21)

G12223015

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

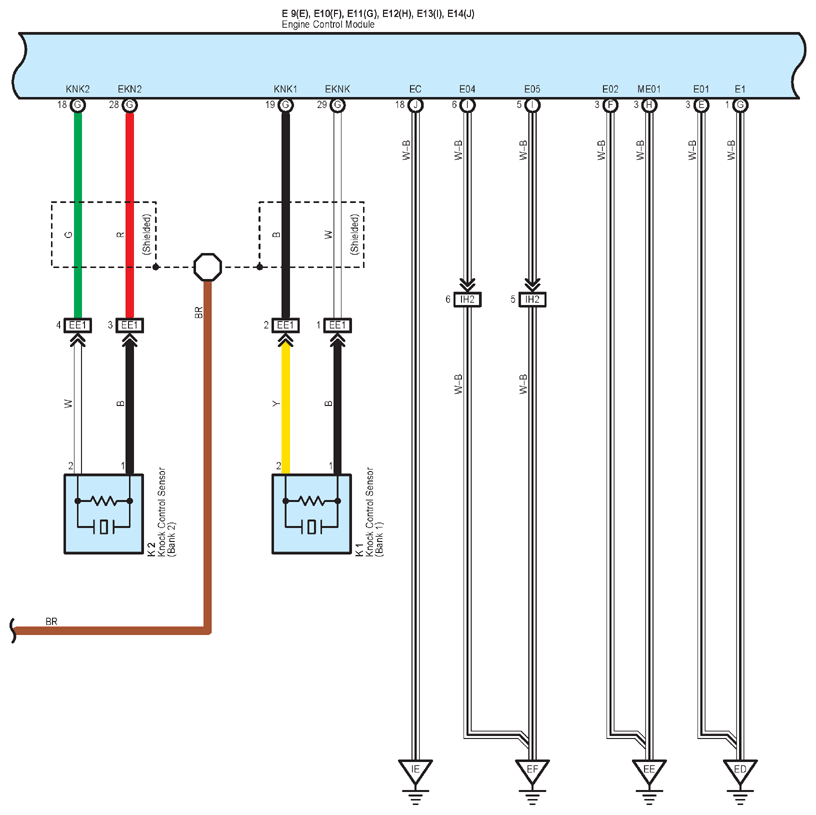

Fig 14: Engine Control (2GR-FKS) (14 Of 21)

G12223016

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Engine Control (2GR-FKS) (15 Of 21)

G12223017

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

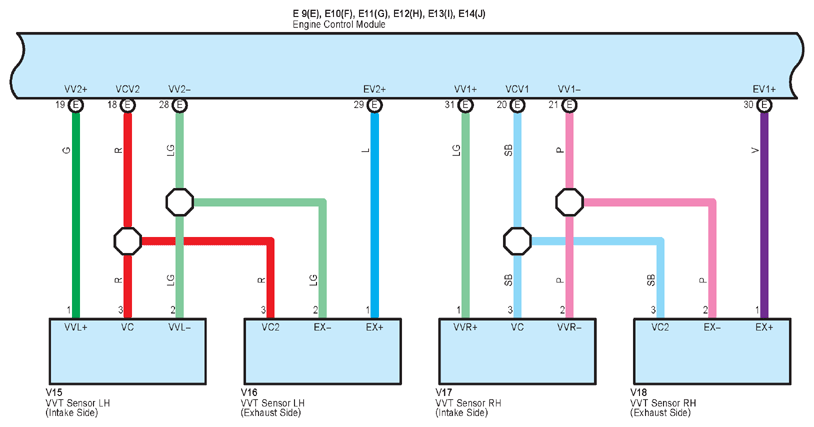

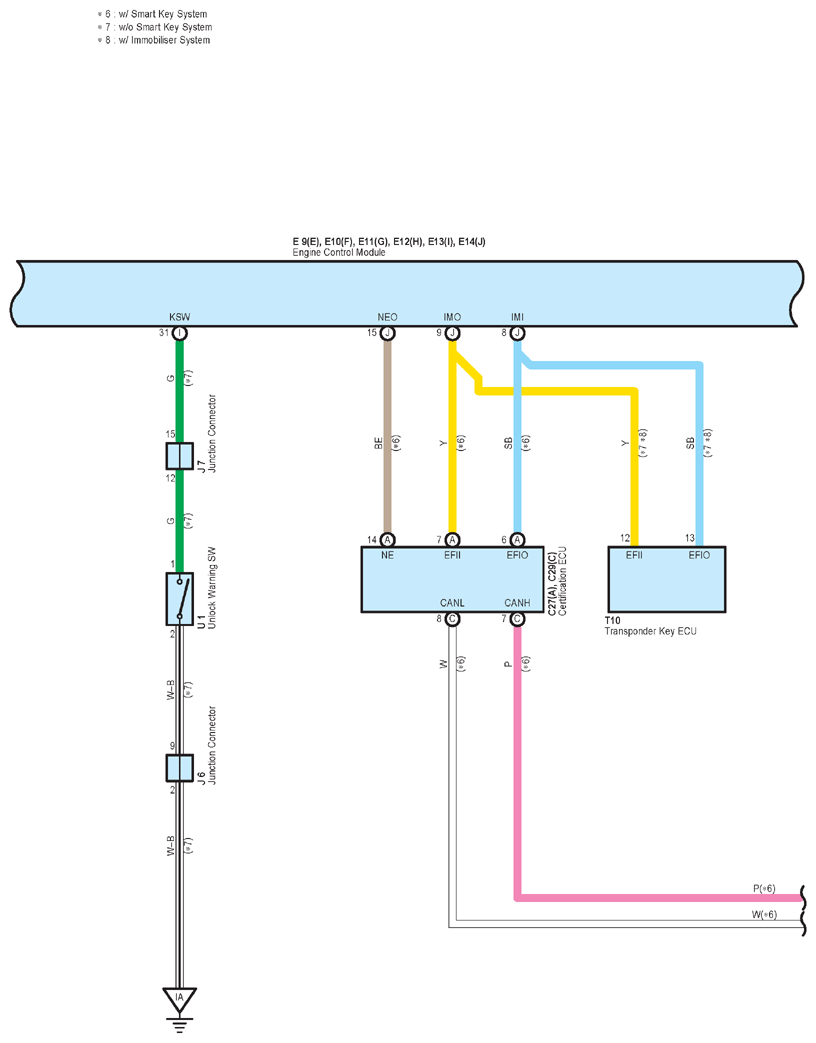

Fig 16: Engine Control (2GR-FKS) (16 Of 21)

G12223018

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Engine Control (2GR-FKS) (17 Of 21)

G12223019

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

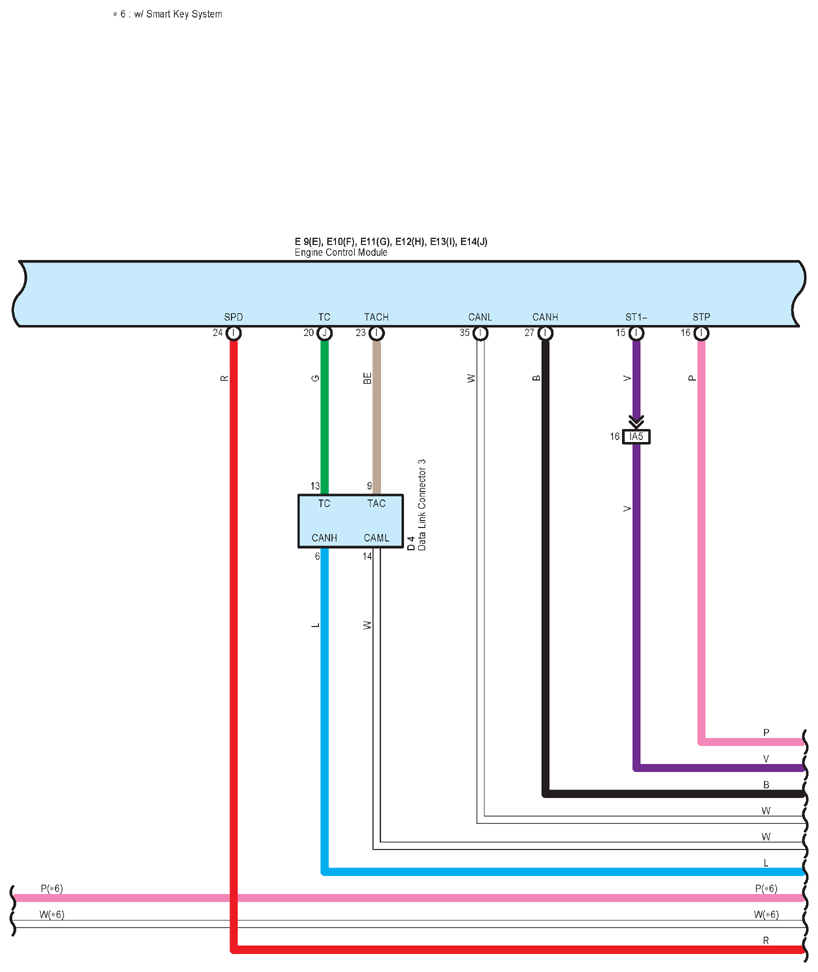

Fig 18: Engine Control (2GR-FKS) (18 Of 21)

G12223020

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

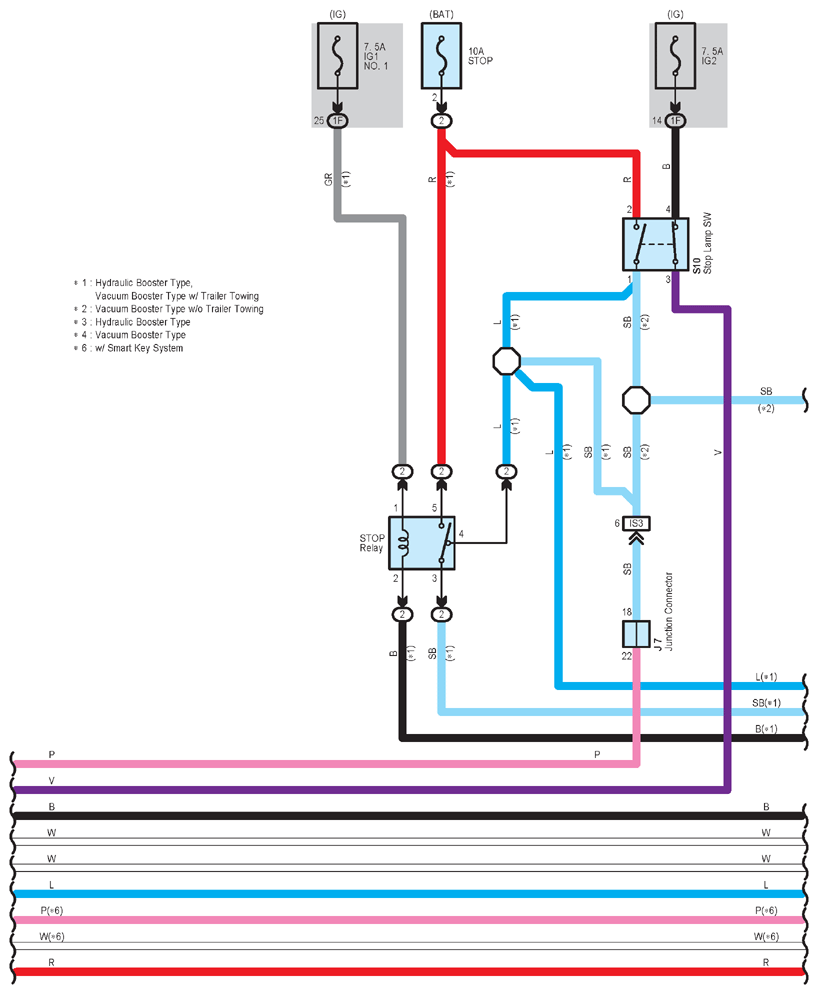

Fig 19: Engine Control (2GR-FKS) (19 Of 21)

G12223021

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

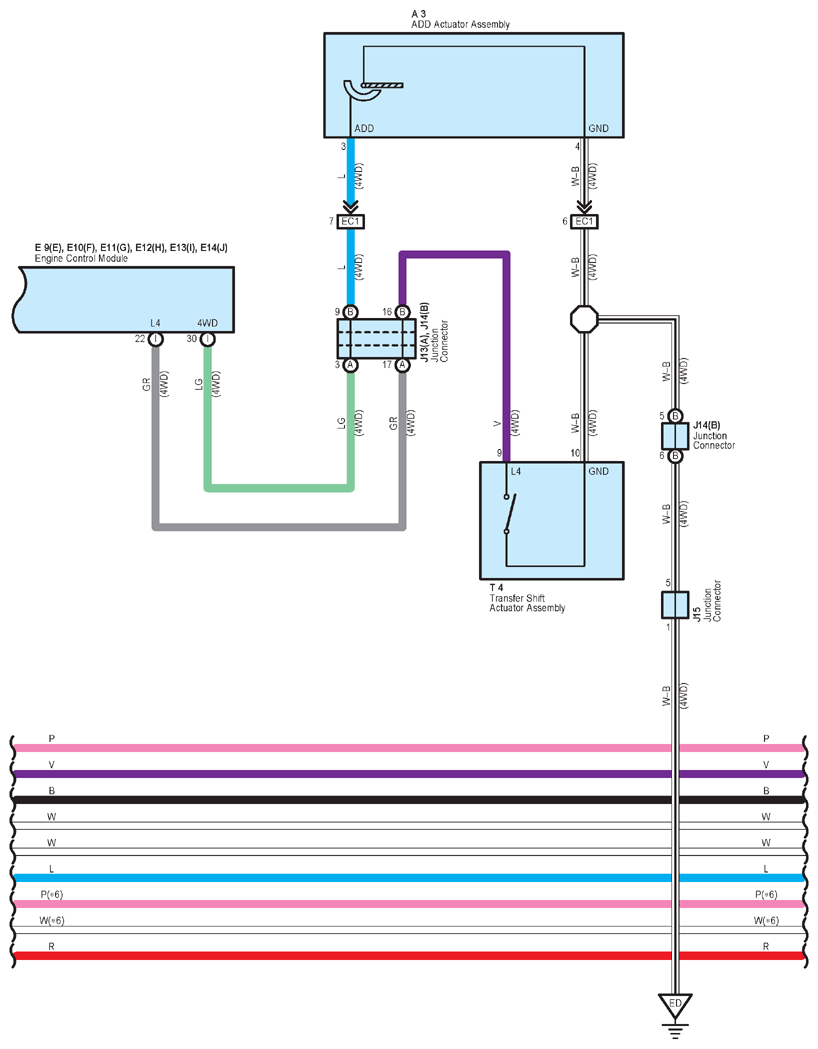

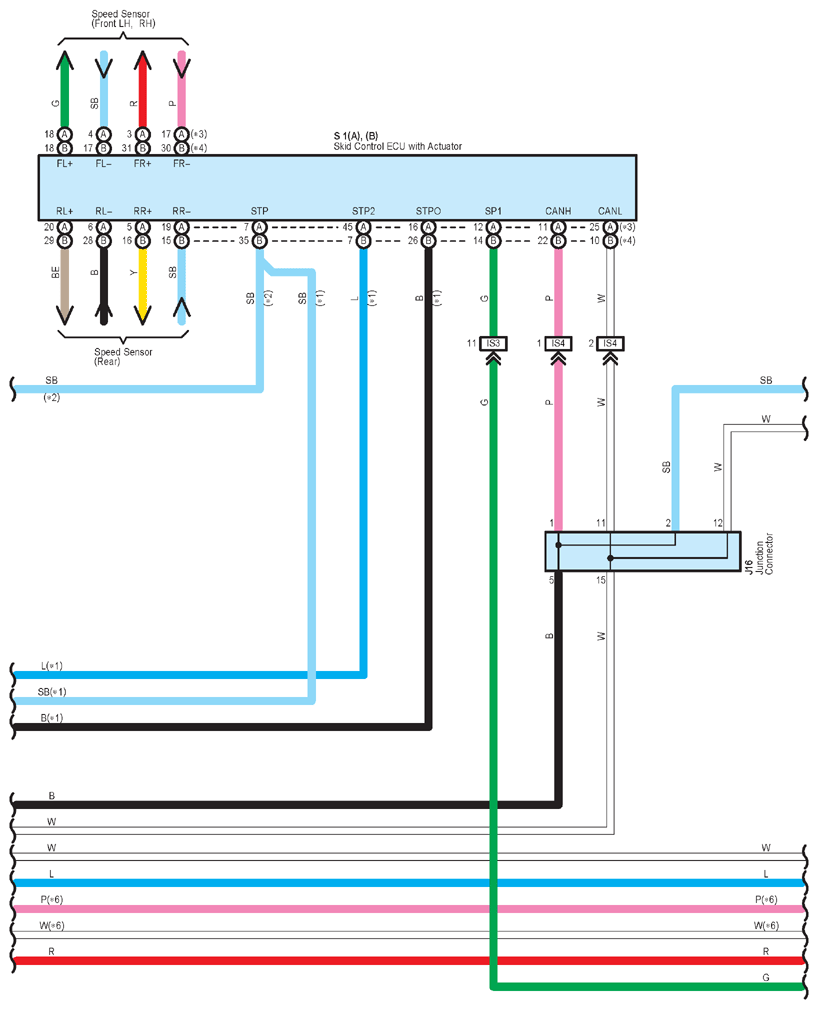

Fig 20: Engine Control (2GR-FKS) (20 Of 21)

G12223022

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

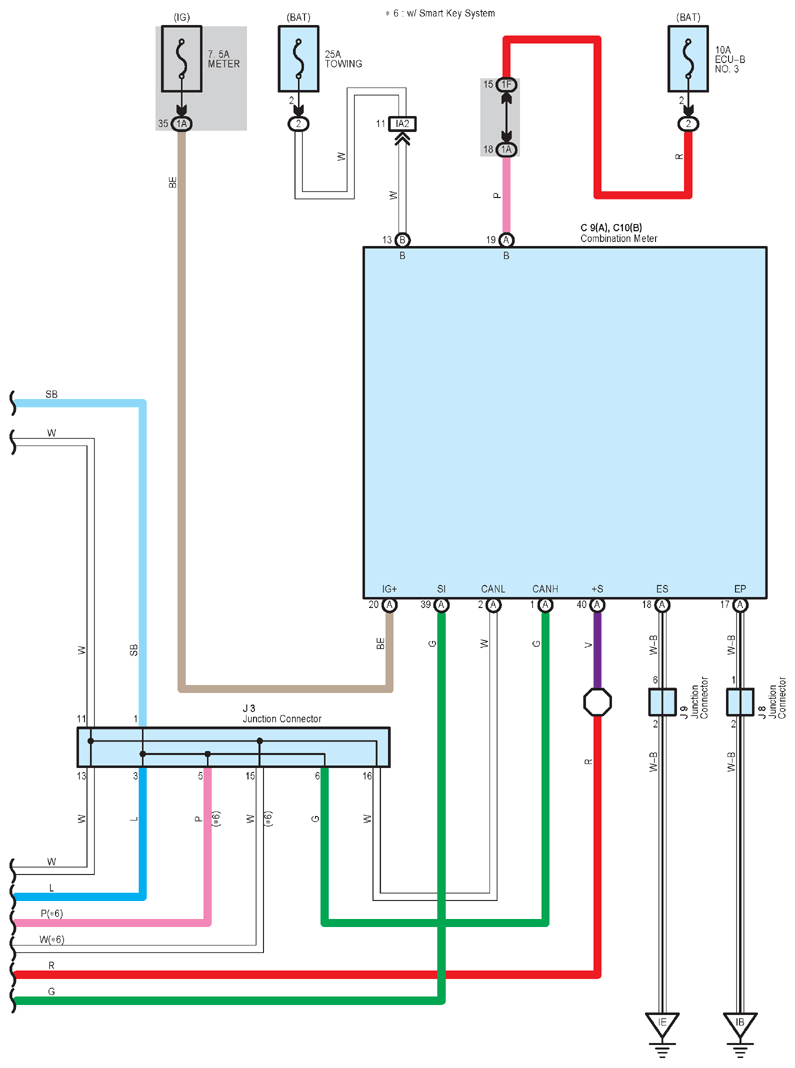

Fig 21: Engine Control (2GR-FKS) (21 Of 21)

G12223023

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
