System Diagrams

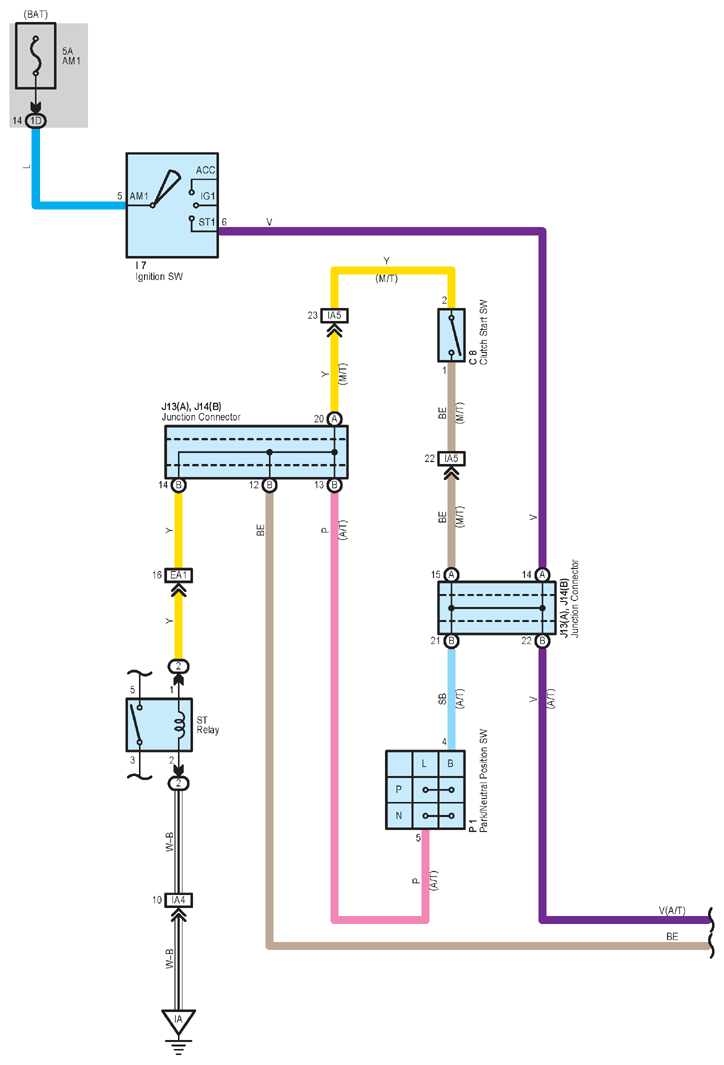

Fig 1: Engine Control (2TR-FE) (1 Of 14)

G12223031

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

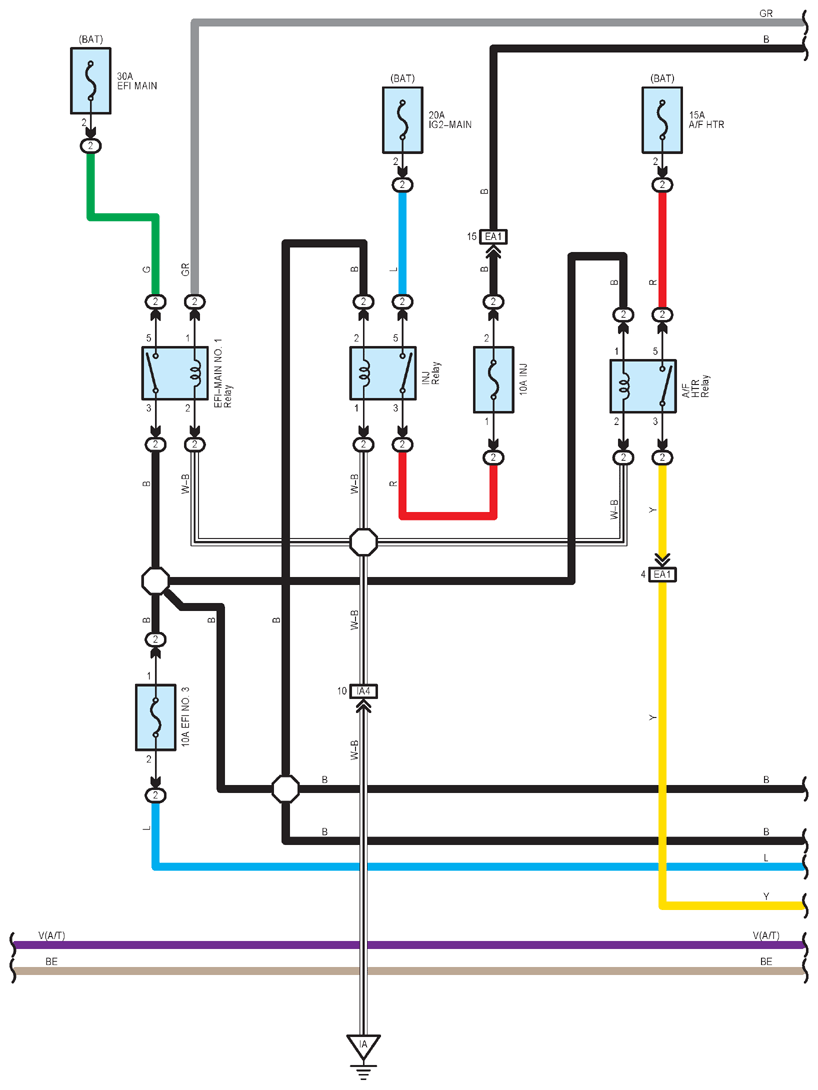

Fig 2: Engine Control (2TR-FE) (2 Of 14)

G12223032

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

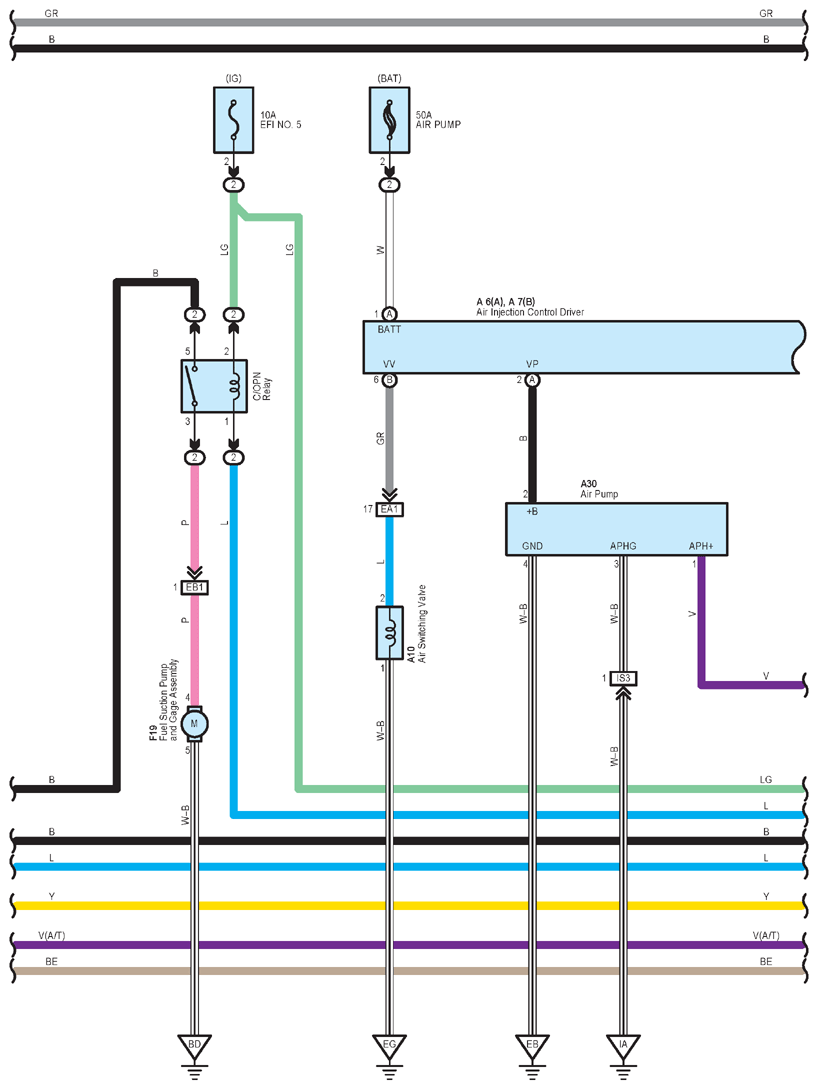

Fig 3: Engine Control (2TR-FE) (3 Of 14)

G12223033

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

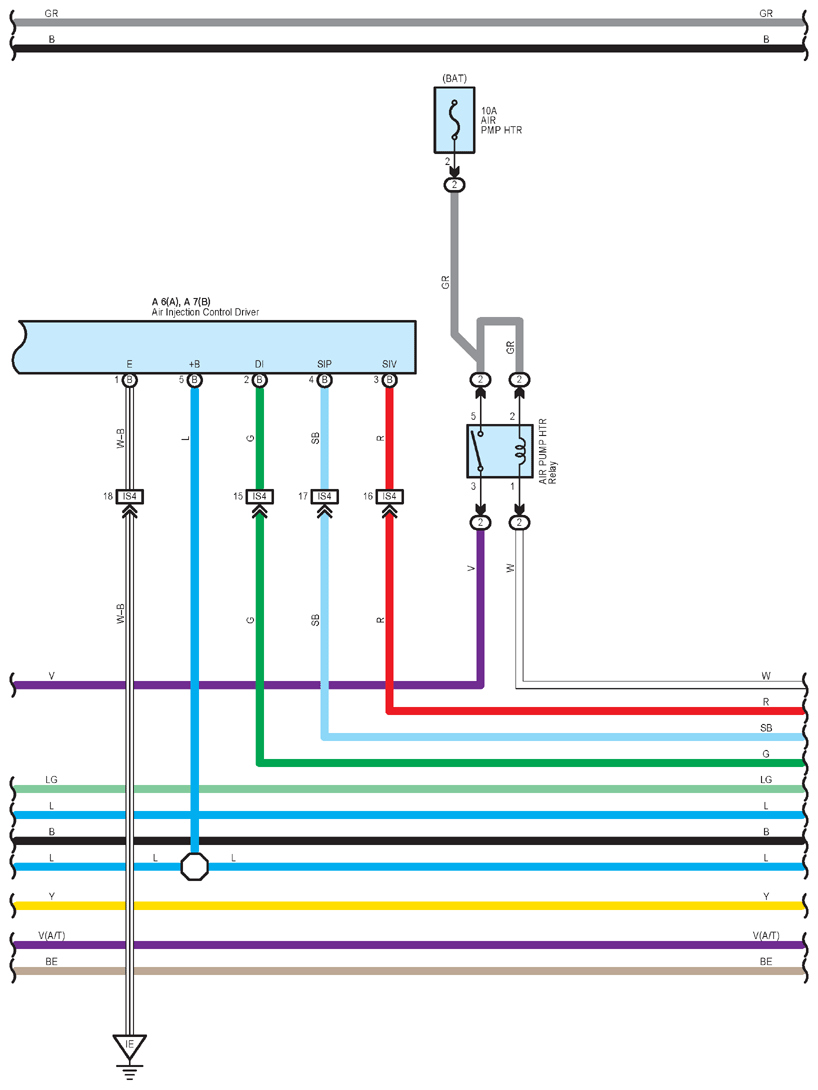

Fig 4: Engine Control (2TR-FE) (4 Of 14)

G12223034

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

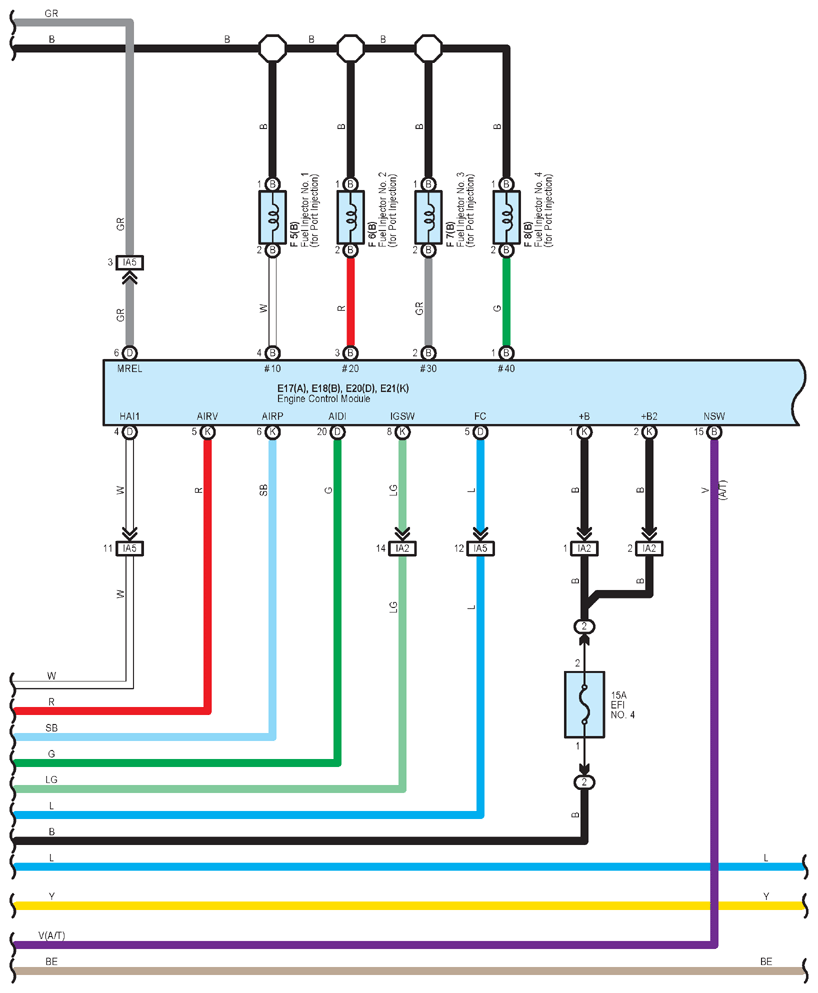

Fig 5: Engine Control (2TR-FE) (5 Of 14)

G12223035

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

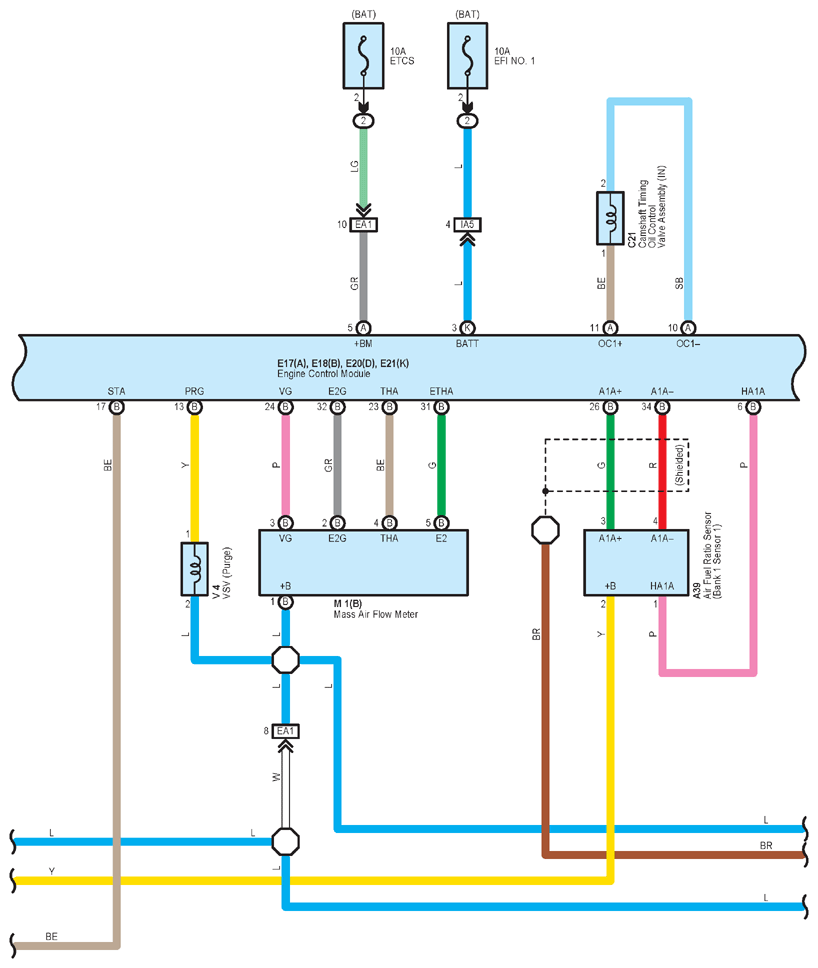

Fig 6: Engine Control (2TR-FE) (6 Of 14)

G12223036

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

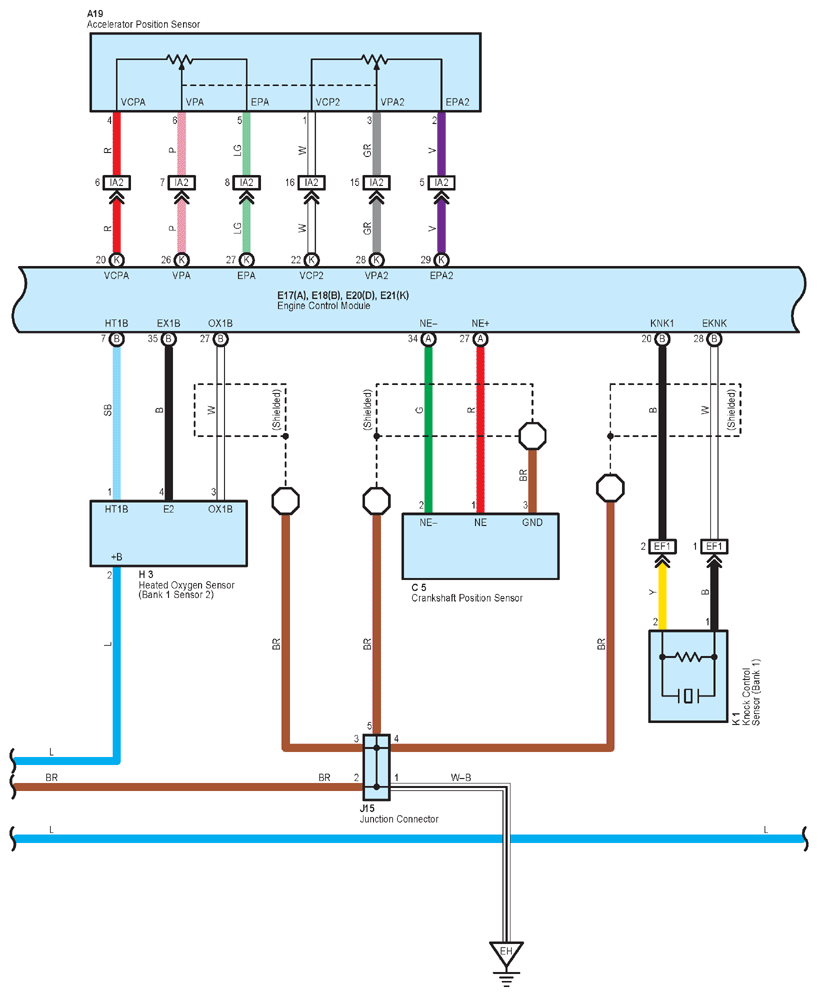

Fig 7: Engine Control (2TR-FE) (7 Of 14)

G12223037

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

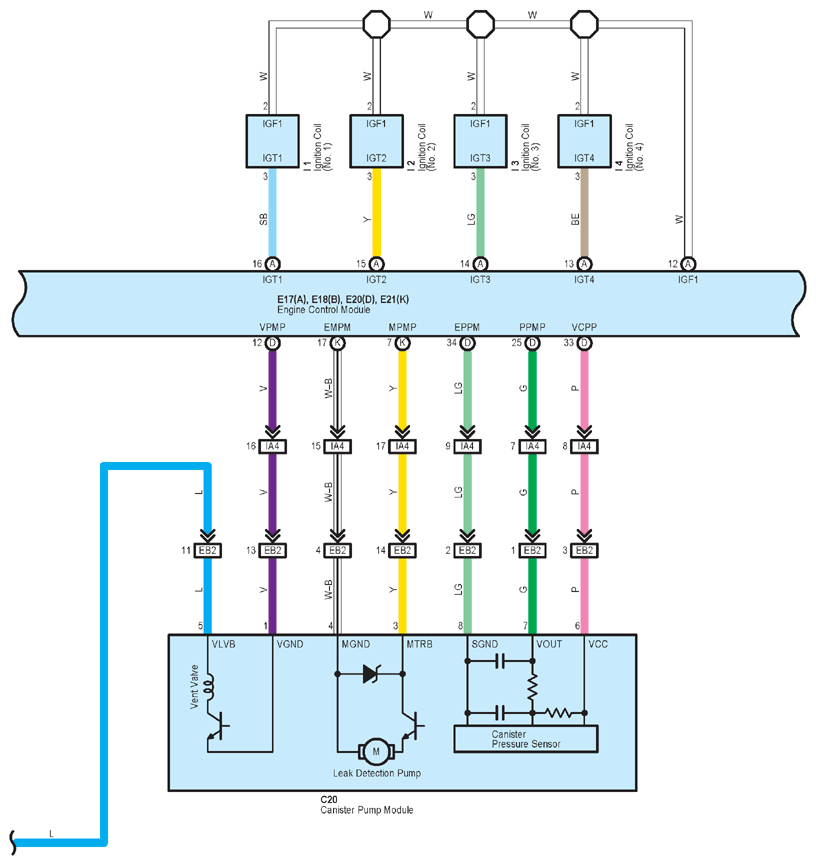

Fig 8: Engine Control (2TR-FE) (8 Of 14)

G12223038

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

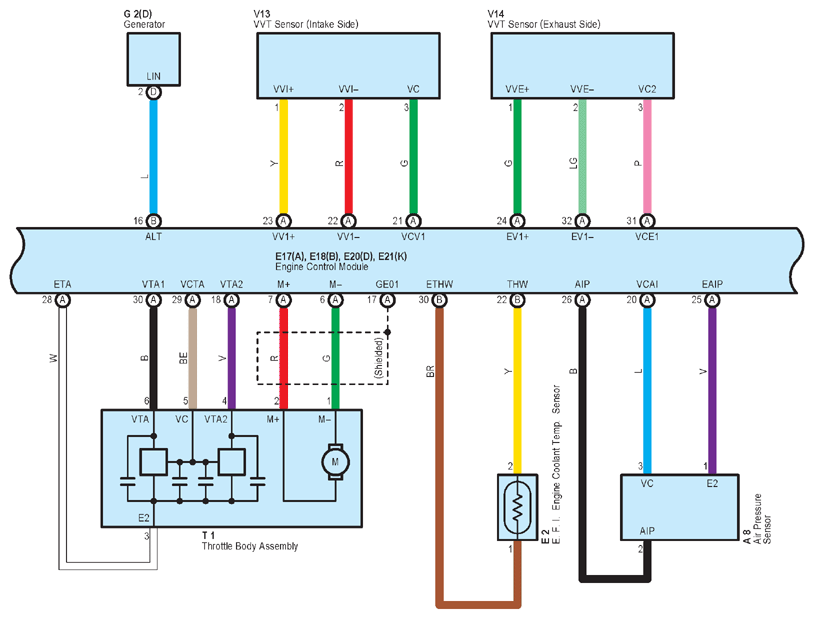

Fig 9: Engine Control (2TR-FE) (9 Of 14)

G12223039

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

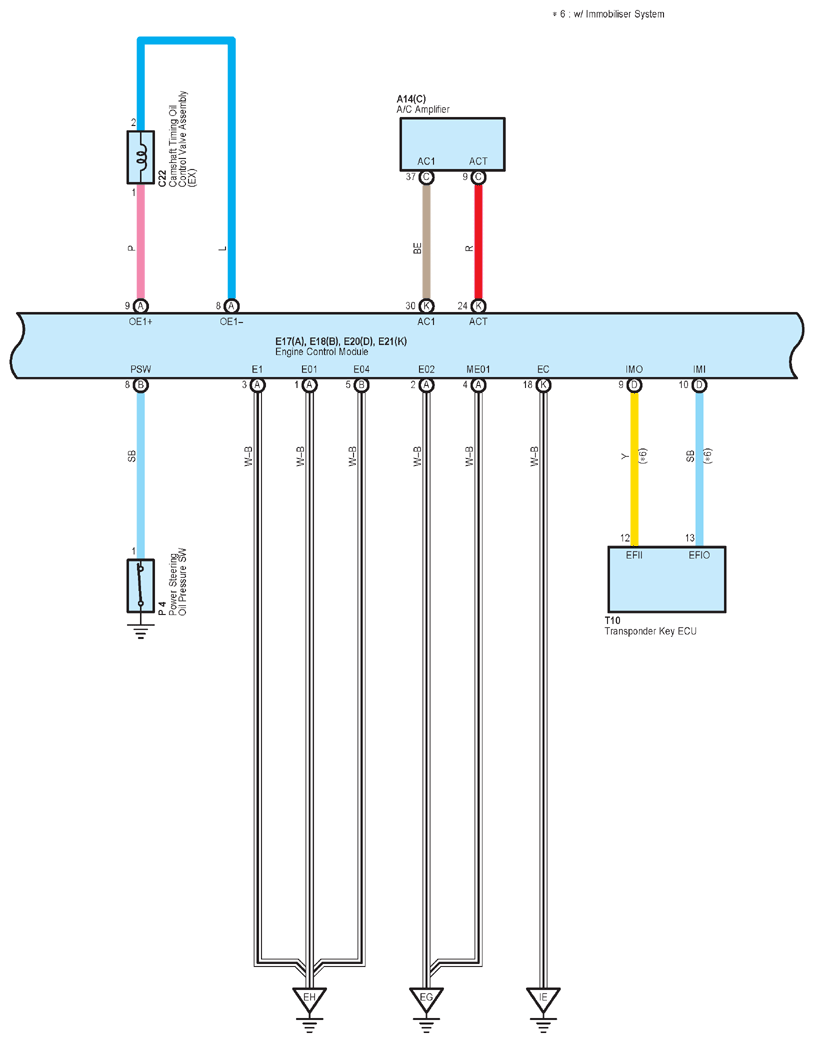

Fig 10: Engine Control (2TR-FE) (10 Of 14)

G12223040

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

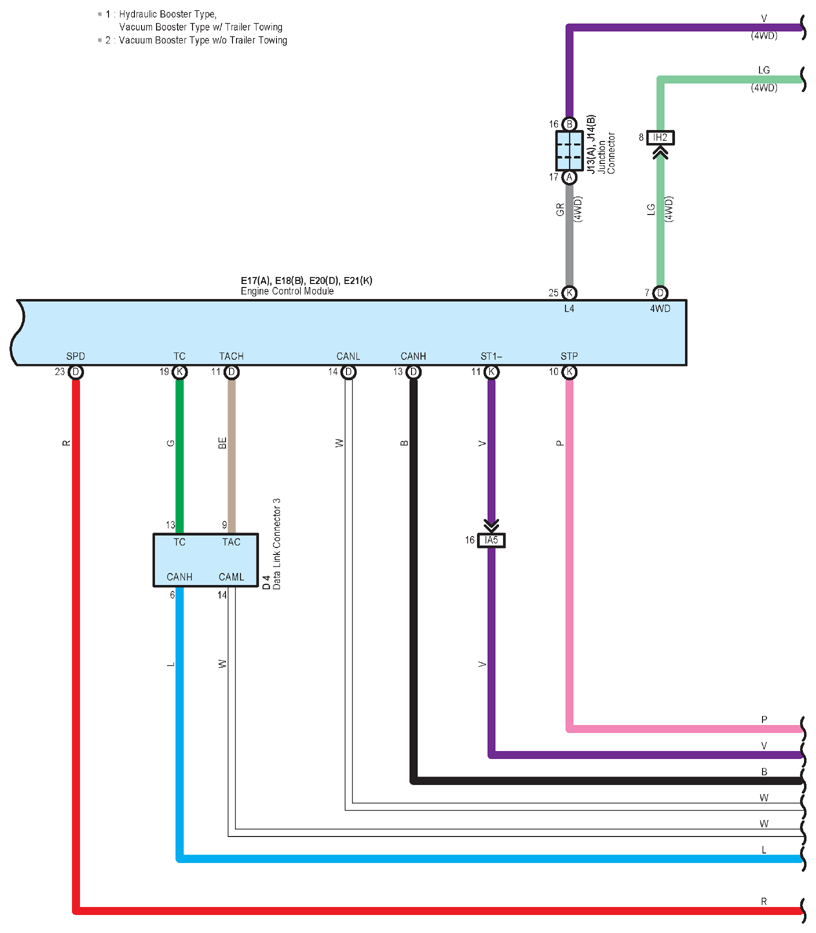

Fig 11: Engine Control (2TR-FE) (11 Of 14)

G12223041

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

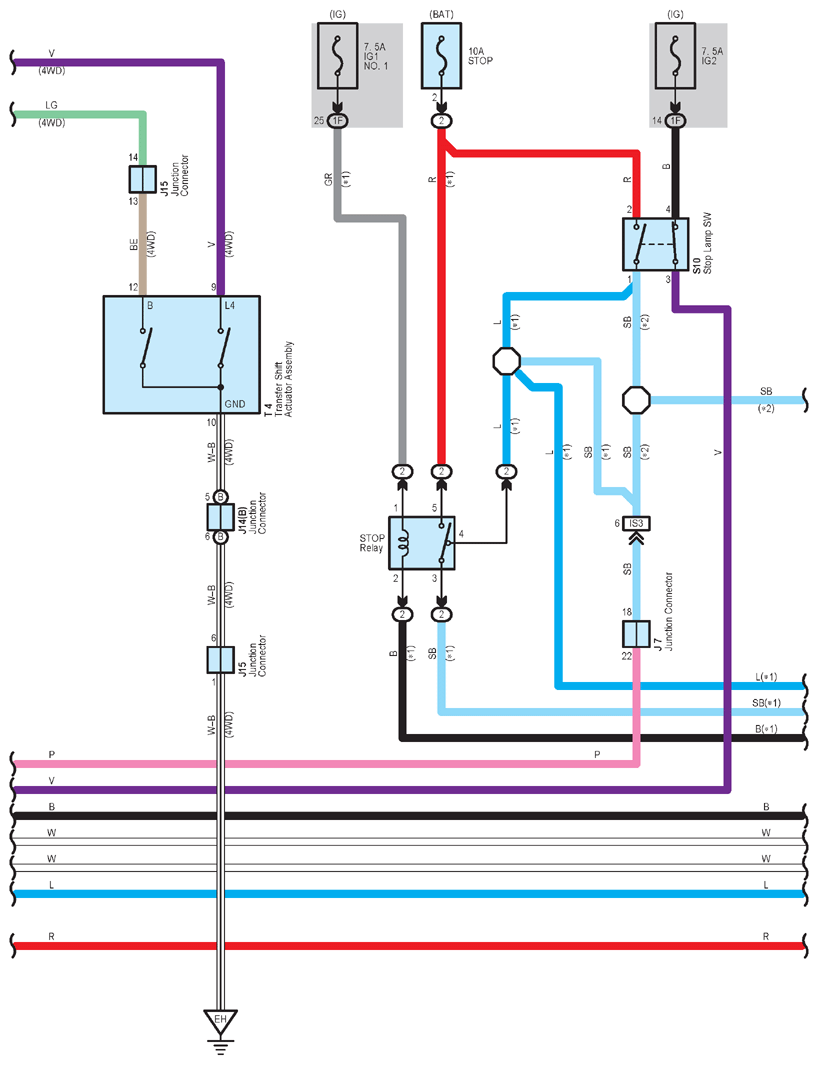

Fig 12: Engine Control (2TR-FE) (12 Of 14)

G12223042

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

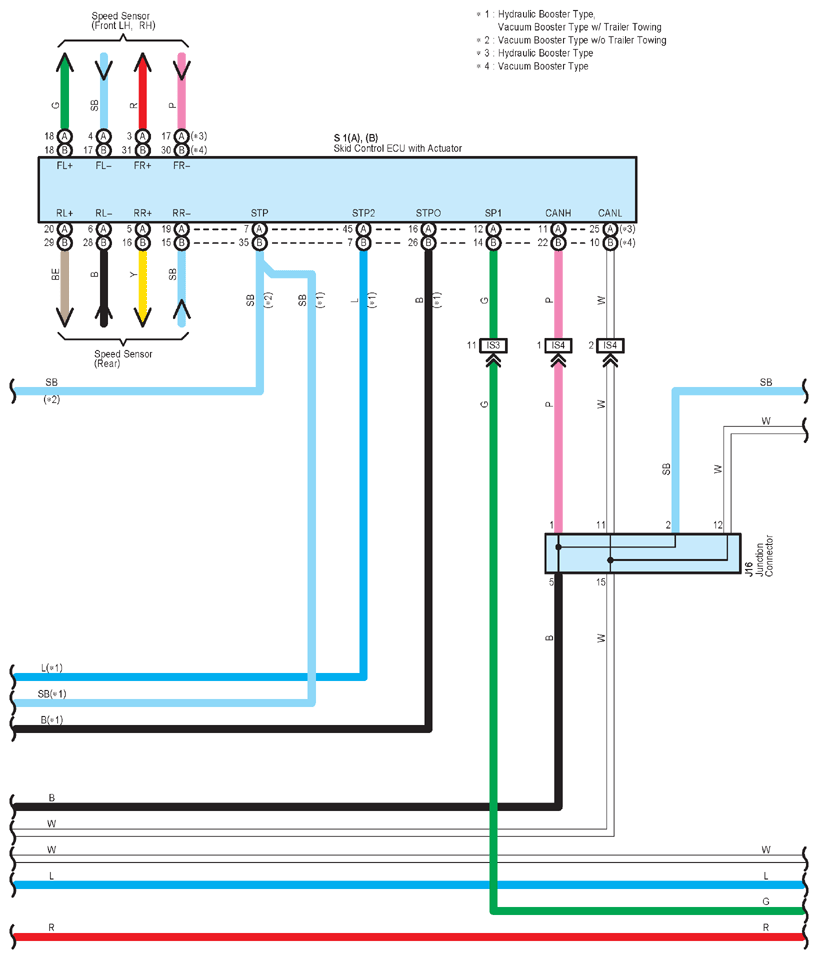

Fig 13: Engine Control (2TR-FE) (13 Of 14)

G12223043

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

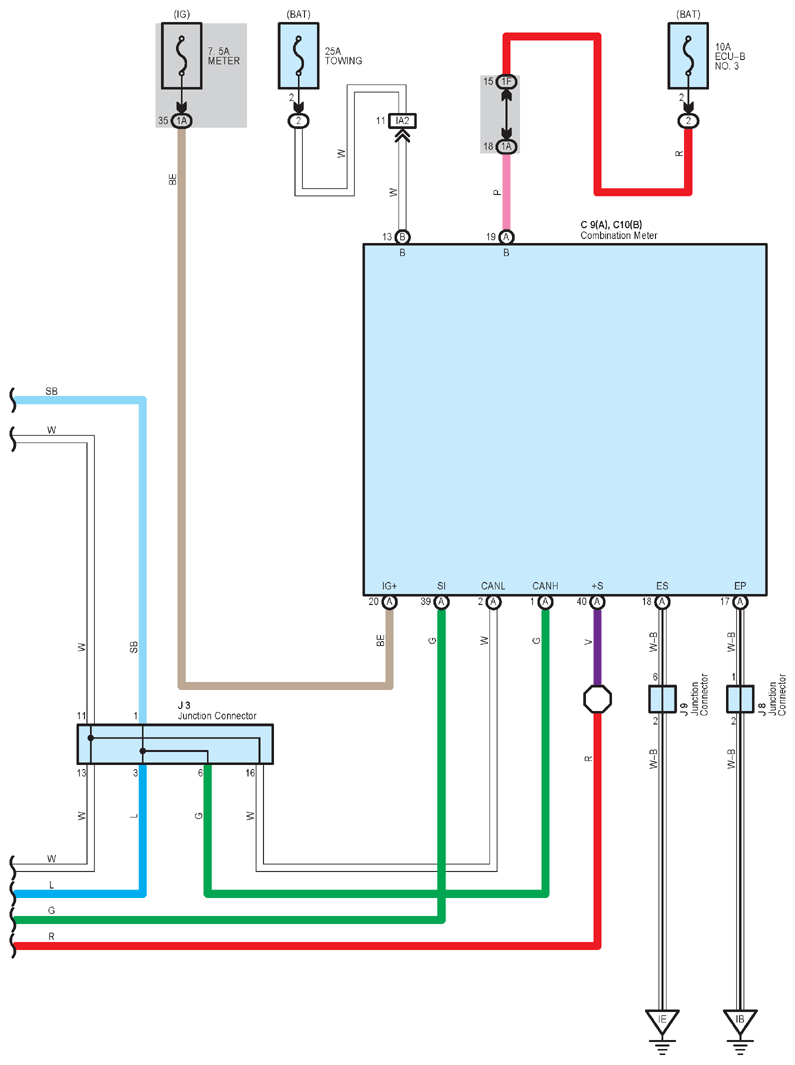

Fig 14: Engine Control (2TR-FE) (14 Of 14)

G12223044

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
